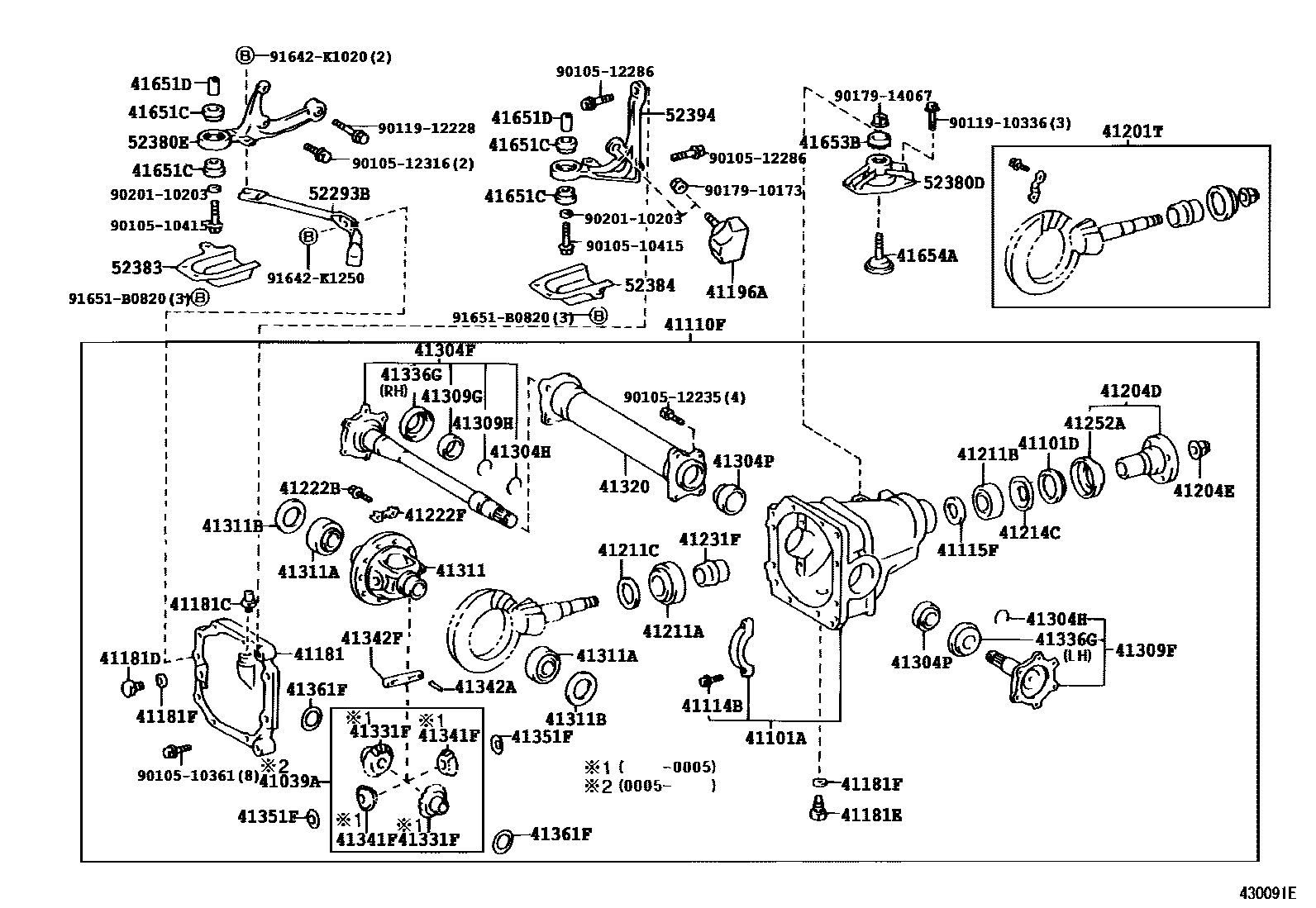

FRONT AXLE HOUSING & DIFFERENTIAL

41039AGEAR KIT, DIFFERENTIAL

main41039-34030iRCH19,29200005-201111

41101ACARRIER SUB-ASSY, DIFFERENTIAL, FRONT

main41101-26021iLXH18,28,RCH18,19,28,29199608-201111

sub41101-26022

41101DSEAL, OIL (FOR FRONT DIFFERENTIAL CARRIER)

main90311-38049iKLH18,28199608-200608

sub90311-38066

main90311-38066iKLH18,28200608-201111

41110FCARRIER ASSY, DIFFERENTIAL, FRONT

main41110-26240iLXH18,28,RCH19,29199608-200605

*FGR=41:10=4.100

main41110-26250iRCH18,28199608-199804

*FGR=43:10=4.300

main41110-26570iKLH18,28200108-201111

*FGR=43:11=3.909

41114BBOLT, FRONT DIFFERENTIAL BEARING CAP

main90105-12053iLXH18,28,RCH18,19,28,29199608-201111

41115FRING, FRONT DIFFERENTIAL OIL STORAGE

main41115-26010iKLH18,28199608-201111

41181COVER, FRONT DIFFERENTIAL CARRIER

main41108-0W040iLXH18,28,RCH18,19,28,29199608-200608

sub41108-0W041

main41108-0W041iKLH18,28200608-201111

41181CPLUG, BREATHER (FOR FRONT DIFFERENTIAL CARRIER COVER)

main90930-03031iLXH18,28,RCH18,19,28,29199608-200404

main90930-03077iRCH19,29200404-201111

41181DPLUG (FOR FRONT DIFFERENTIAL FILLER)

main90341-18006iLXH18,28,RCH18,19,28,29199608-201111

41181EPLUG (FOR FRONT DIFFERENTIAL DRAIN)

main90341-18030iLXH18,28,RCH18,19,28,29199608-201111

41181FGASKET (FOR FRONT DIFFERENTIAL FILLER PLUG)

main12157-10010iLXH18,28,RCH18,19,28,29199608-201111

41196ADAMPER, FRONT DIFFERENTIAL DYNAMIC

main41196-26020iLXH18,28,RCH18,28199608-199708

main41196-26021iLXH18,28199708-201111

41201TFINAL GEAR KIT, DIFFERENTIAL, FRONT

main41201-80052iKLH18,28200404-200608

*FGR=43:11=3.909,W/LSD

sub41201-59265

main41201-80067iLXH18,28,RCH19,29199608-200404

*FGR=41:10=4.100

sub41201-80502

main41201-80078iKLH18,28200108-200404

*FGR=43:11=3.909

sub41201-80116

main41201-80098iRCH18,28199608-199804

*FGR=43:10=4.300

sub41201-80500

main41201-80501iKLH18,28200404-201111

*FGR=43:11=3.909

main41201-80502iRCH19,29200404-200605

*FGR=41:10=4.100

41204DFLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT

main41204-35050iKLH18,28199608-201111

41204ENUT (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT)

main90179-18020iLXH18,28,RCH18,19,28,29199608-201111

41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)

main90366-35023iLXH18,28,RCH18,19,28,29199608-201111

41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)

main90366-30022iLXH18,28,RCH18,19,28,29199608-200206

sub90366-30078

main90366-30078iKLH18,28200206-201111

41211CGEAR, DIFFERENTIAL RING

main90201-35396iKLH18,28199608-201111

T=2.36,MARK 05

main90201-35397iLXH18,28199608-201111

T=2.39,MARK 06

main90201-35398iKLH18,28199608-201111

T=2.42,MARK 07

main90201-35399iRCH19,29199608-201111

T=2.43,MARK 08

main90201-35400iLXH18,28,RCH18,19,28,29199608-201111

T=2.48,MARK 09

main90201-35401iKLH18,28199608-201111

T=2.51,MARK 10

main90201-35402iLXH18,28,RCH18,19,28,29199608-201111

T=2.54,MARK 11

main90201-35403iLXH18,28,RCH18,19,28,29199608-201111

T=2.57,MARK 12

main90201-35404iLXH18,28199608-201111

T=2.60,MARK 13

main90201-35438iKLH18,28199608-201111

T=2.63,MARK 14

main90201-35439iKLH18,28199608-201111

T=2.66,MARK 15

main90201-35440iLXH18,28199608-201111

T=2.69,MARK 16

main90201-35441iRCH19,29199608-201111

T=2.72,MARK 17

main90201-35515iLXH18,28199608-201111

OD=47,T=2.24,MARK 01

main90201-35516iKLH18,28199608-201111

OD=47,T=2.27,MARK 02

main90201-35517iLXH18,28199608-201111

OD=47,T=2.30,MARK 03

main90201-35518iKLH18,28199608-201111

OD=47,T=2.33,MARK 04

41214CSLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL

main41214-35020iRCH19,29199608-201111

41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)

main90101-11353iLXH18,28,RCH18,19,28,29199608-201111

41222FPLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-35030iLXH18,28,RCH18,19,28,29199608-201111

41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING

main41231-22010iLXH18,28199608-201111

41252ADEFLECTOR, DUST (FOR FRONT DIFFERENTIAL)

main41252-30010iLXH18,28,RCH18,19,28,29199608-201111

41304FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH

main41304-26040iLXH18,28,RCH18,19,28,29199608-201111

41304HRING, HOLE SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT)

main90521-29002iLXH18,28,RCH18,19,28,29199608-201111

41304PSEAL, OIL (FOR DIFFERENTIAL SIDE GEAR SHAFT)

main90311-35032iLXH18,28,RCH18,19,28,29199608-201111

41309FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, LH

main41309-26010iLXH18,28,RCH18,19,28,29199608-201111

41309GBEARING (FOR DIFFERENTIAL SIDE GEAR SHAFT)

main90369-36009iLXH18,28,RCH18,19,28,29199608-201111

41309HRING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT)

main90520-33008iLXH18,28,RCH18,19,28,29199608-201111

41311CASE, FRONT DIFFERENTIAL

main41311-22060iLXH18,28,RCH18,19,28,29199608-201111

41311ABEARING (FOR FRONT DIFFERENTIAL CASE)

main90368-50006iLXH18,28199608-201111

41311BWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE)

main90201-65007iLXH18,28,RCH18,19,28,29199608-201111

T=2.58

main90201-65008iKLH18,28199608-201111

T=2.61

main90201-65009iKLH18,28199608-201111

T=2.64

main90201-65010iKLH18,28199608-201111

T=2.67

main90201-65011iLXH18,28199608-201111

T=2.70

main90201-65012iLXH18,28,RCH18,19,28,29199608-201111

T=2.73

main90201-65013iKLH18,28199608-201111

T=2.76

main90201-65014iLXH18,28,RCH18,19,28,29199608-201111

T=2.79

main90201-65015iKLH18,28199608-201111

T=2.82

main90201-65016iKLH18,28199608-201111

T=2.85

main90201-65017iKLH18,28199608-201111

T=2.88

main90201-65018iRCH19,29199608-201111

T=2.91

main90201-65019iLXH18,28199608-201111

T=2.94

main90201-65020iKLH18,28199608-201111

T=2.97

main90201-65021iLXH18,28,RCH18,19,28,29199608-201111

T=3.00

main90201-65022iLXH18,28,RCH18,19,28,29199608-201111

T=3.03

main90201-65023iLXH18,28199608-201111

T=3.06

main90201-65024iLXH18,28199608-201111

T=3.09

main90201-65025iKLH18,28199608-201111

T=3.12

main90201-65026iLXH18,28,RCH18,19,28,29199608-201111

T=3.15

main90201-65027iLXH18,28,RCH18,19,28,29199608-201111

T=3.18

main90201-65028iKLH18,28199608-201111

T=3.21

main90201-65029iKLH18,28199608-201111

T=3.24

41320TUBE ASSY, FRONT DIFFERENTIAL

main41320-26050iLXH18,28199608-201111

41331FGEAR, FRONT DIFFERENTIAL SIDE

main41331-14040iLXH18,28,RCH18,19,28,29199608-199907

sub41331-14041

main41331-14041iLXH18,28,RCH19,29199907-200005

41336GCOVER, DUST(FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT)

main41336-22010iLXH18,28,RCH18,19,28,29199608-201111

LH

main41336-28010iRCH19,29199608-201111

RH

41341FPINION, FRONT DIFFERENTIAL

main41341-30020iLXH18,28,RCH18,19,28,29199608-200005

sub41341-30050

41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)

main90250-06058iLXH18,28,RCH18,19,28,29199608-201111

41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1

main41342-22020iLXH18,28,RCH18,19,28,29199608-200005

sub41342-22021

main41342-22021iLXH18,28200005-201111

41351FWASHER, FRONT DIFFERENTIAL PINION THRUST

main41351-30060iRCH19,29199608-201111

41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-30040iLXH18,28,RCH18,19,28,29199608-201111

T=1.0

main41361-30050iKLH18,28199608-201111

T=1.1

main41361-30060iKLH18,28199608-201111

T=1.2

main41361-30070iKLH18,28199608-201111

T=1.3

main41361-30080iRCH19,29199608-200608

T=1.4

main41361-30090iLXH18,28199608-200608

T=1.5

main41361-30100iKLH18,28199608-200608

T=1.6

41651CCUSHION, FRONT DIFFERENTIAL MOUNT, NO.2

main41651-28050iLXH18,28,RCH18,19,28,29199608-201111

41651DCOLLAR (FOR FRONT DIFFERENTIAL MOUNT CUSHION)

main90387-14025iLXH18,28,RCH18,19,28,29199608-201111

41653BSTOPPER, DIFFERENTIAL MOUNT, UPPER

main41653-26010iLXH18,28,RCH18,19,28,29199608-201111

41654ASTOPPER, DIFFERENTIAL MOUNT, LOWER

main41654-26040iLXH18,28,RCH18,19,28,29199608-201111

52293BBRACE, FRONT DIFFERENTIAL SUPPORT

main52293-26010iLXH18,28,RCH18,19,28,29199608-201111

52380DSUPPORT ASSY, FRONT DIFFERENTIAL

main52380-26070iLXH18,28,RCH18,19,28,29199608-201111

52380ESUPPORT ASSY, DIFFERENTIAL

main52380-26090iLXH18,28,RCH18,19,28,29199608-201111

52383PROTECTOR, FRONT DIFFERENTIAL SUPPORT, NO.1

main52383-26010iLXH18,28,RCH18,19,28,29199608-201111

52384PROTECTOR, FRONT DIFFERENTIAL SUPPORT, NO.2

main52384-26010iLXH18,28,RCH18,19,28,29199608-201111

52394SUPPORT, FRONT DIFFERENTIAL, NO.3

main52392-26011iLXH18,28,RCH18,28199608-199708

main52392-26012iLXH18,28,RCH18,19,28,29199708-201111

9010510361

main90105-10361

9010510415

main90105-10415

9010512235

main90105-12235

9010512286

main90105-12286

9010512316

main90105-12316

9011910336

main90119-10336

9011912228

main90119-12228

9017910173

main90179-10173

9017914067

main90179-14067

9020110203

main90201-10203

91642K1020

main91642-K1020

91642K1250

main91642-K1250

91651B0820

main91651-B0820

63 parts on this diagram · 1 diagram in section
