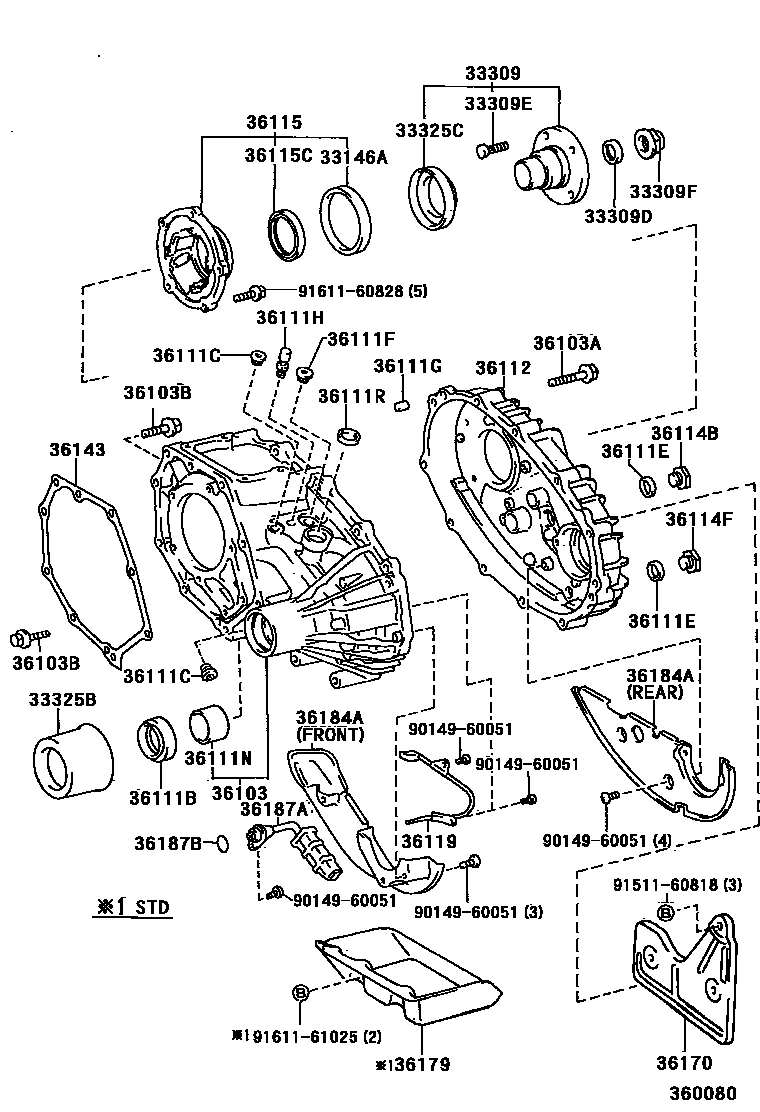

TRANSFER CASE & EXTENSION HOUSING

0001 1 0002 1

33146ADEFLECTOR, TRANSFER EXTENSION HOUSING DUST

main33146-28020iLXH18,RCH18199608-199703

main33146-30010iKLH18,28200608

sub33146-30020

main33146-30020iRCH19,29199703-200608

33309FLANGE SUB-ASSY, TRANSFER OUTPUT SHAFT COMPANION

main33309-28021iLXH18,RCH18199608-199703

33309DSEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)

main90312-23001iLXH18,RCH18199608-199703

33309EBOLT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)

main90114-10017iLXH18,RCH18199608-199703

33309FNUT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)

main90179-20010iLXH18,RCH18199608-199703

33325BDEFLECTOR, DUST (FOR TRANSFER EXTENSION FRONT HOUSING)

main33325-28020iLXH18,28,RCH18,19,28,29199608-200608

33325CDEFLECTOR, DUST (FOR TRANSFER EXTENSION REAR HOUSING)

main33325-28040iLXH18,RCH18199608-199703

36103CASE SUB-ASSY, TRANSFER

main36103-26020iLXH18,28,RCH18,19,28,29199608-201007

main36103-28040iKLH18,28201007

36103ABOLT (FOR TRANSFER CASE)

main90119-10610iLXH18,28,RCH18,19,28,29199608-199907

*10-1.25PX55-30

sub91612-61055

main91612-61055iLXH18,28199907-200608

*10-1.25PX55-30

36103BBOLT (FOR TRANSFER CASE & ADAPTER SETTING)

main90119-10615iLXH18,28,RCH18,19,28,29199608-200608

*10-1.25PX47-30

36111BSEAL, OIL (FOR TRANSFER CASE)

main90311-37002iLXH18,28,RCH18,28199608-199705

sub90311-37003

main90311-37003iRCH19,29199705-200608

36111CPLUG (FOR TRANSFER CASE)

main90341-12014iLXH18,RCH18199608-199703

36111EGASKET (FOR TRANSFER CASE)

main90430-18008iLXH18,28,RCH18,19,28,29199608-200608

36111FPLUG (FOR TRANSFER CASE)

main90341-14008iLXH18,28,RCH18,19,28,29199608-201007

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10214iLXH18,28,RCH18,19,28,29199608-200608

L=14,OD=10

36111HPLUG, BREATHER (FOR TRANSFER CASE)

main90930-03085iLXH18,28,RCH18,19,28,29199608-200608

36111NBUSH (FOR TRANSFER CASE)

main90999-73120iLXH18,28,RCH18,28199703-199708

main90999-73139iLXH18,RCH18199610-199703

36111RPLUG, TIGHT (FOR TRANSFER CASE)

main96411-12800iLXH18,28,RCH18,19,28,29199608-199907

sub96411-42800

main96411-42800iKLH18,28199907-201007

36112CASE, TRANSFER, REAR

main36112-26030iLXH18,28,RCH18,19,28,29199608-200608

36114BPLUG, NO.1 (FOR TRANSFER CASE)

main90341-18006iLXH18,28,RCH18,19,28,29199608-200501

main90341-18065iKLH18,28200501-200608

36114FPLUG (FOR TRANSFER DRAIN)

main90341-18057iRCH19,29199608-200608

36115HOUSING, TRANSFER EXTENSION

main36105-28020iLXH18,RCH18199608-199703

main36105-28030iLXH18,28,RCH18,19,28,29199703-200608

36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)

main90311-38032iLXH18,28,RCH18,28199703-199706

main90311-38062iLXH18,28,RCH18,19,28,29199706-200409

sub90311-38090

main90311-38090iRCH19,29200409-200608

main90311-54001iLXH18,RCH18199608-199703

sub90311-52021

36119RECEIVER, TRANSFER OIL, NO.1

main36119-25010iLXH18,28,RCH18,19,28,29199608-200608

36143GASKET, TRANSFER CASE, FRONT

main36143-28020iRCH19,29199608-200608

36170GUIDE ASSY, TRANSFER AIR

main36170-26010iLXH18,28,RCH18,19,28,29199608-200608

36179PROTECTOR, TRANSFER CASE LOWER

main36179-28030iLXH18,28,RCH18,28..STD199608-200608

36184ASEPARATOR, TRANSFER OIL

main36184-26010iRCH19,29199608-200608

REAR

main36184-28030iLXH18,RCH18199608-199703

FRONT

main36184-28040iRCH19,29199703-200608

FRONT

36187ASTRAINR, TRANSFER OIL, NO.1

main36187-25010iLXH18,28,RCH18,19,28,29199608-200608

36187BRING, O (FOR TRANSFER OIL STRAINER)

main96721-24017iLXH18,28,RCH18,19,28,29199608-200608

9014960051

main90149-60051

9151160818

main91511-60818

9161160828

main91611-60828

9161161025

main91611-61025

34 parts on this diagram · 2 diagrams in section
