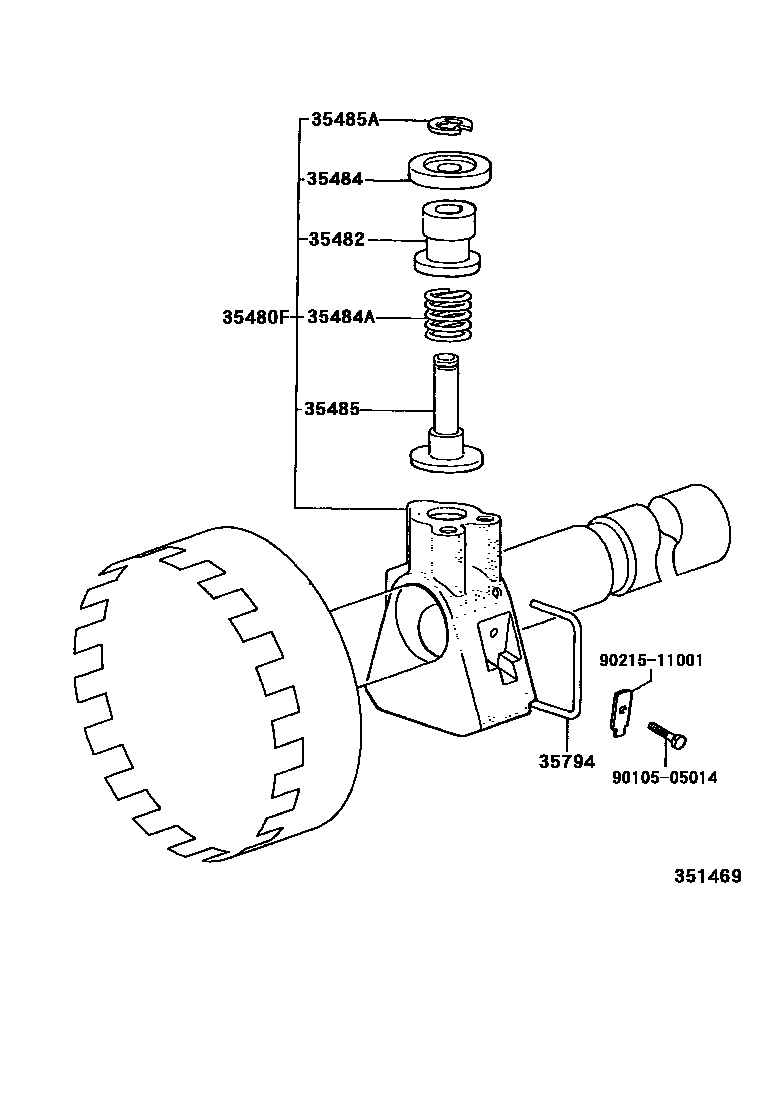

REAR OIL PUMP & GOVERNOR (ATM)

0001 1A43DL 0002 1A45DL

35480FBODY ASSY, GOVERNOR

main35480-26020iRCH13..ATM199804-200108

main35480-28010iRCH12..ATM199508-199804

main35480-30080iLXH12,22..ATM199508-200108

35482VALVE, GOVERNOR

main35482-20010iLXH12,22,RCH13..ATM199508-200108

main35482-28010iRCH12..ATM199508-199804

35484WEIGHT, GOVERNOR, OUTER

main35484-20020iLXH12,22,RCH13..ATM199508-200108

main35484-22010iRCH12..ATM199508-199804

35484ASPRING, COMPRESSION (FOR GOVERNOR WEIGHT)

main90501-08051iRCH12..ATM199508-199804

OUTER

main90501-08052iRCH12..ATM199508-199804

INNER

main90501-09030iLXH12,22..ATM199508-200108

main90501-09673iRCH13..ATM199804-200108

35485SHAFT, GOVERNOR VALVE

main35485-14010iRCH12..ATM199508-199804

main35485-22010iLXH12,22,RCH13..ATM199508-200108

35485ARING, E (FOR GOVERNOR VALVE SHAFT)

main90523-05020iLXH12,22,RCH12,13..ATM199508-200108

35794RING, GOVERNOR RETAINING

main35794-22010iLXH12,22,RCH12,13..ATM199508-200108

9010505014

main90105-05014

9021511001

main90215-11001

9 parts on this diagram · 2 diagrams in section
