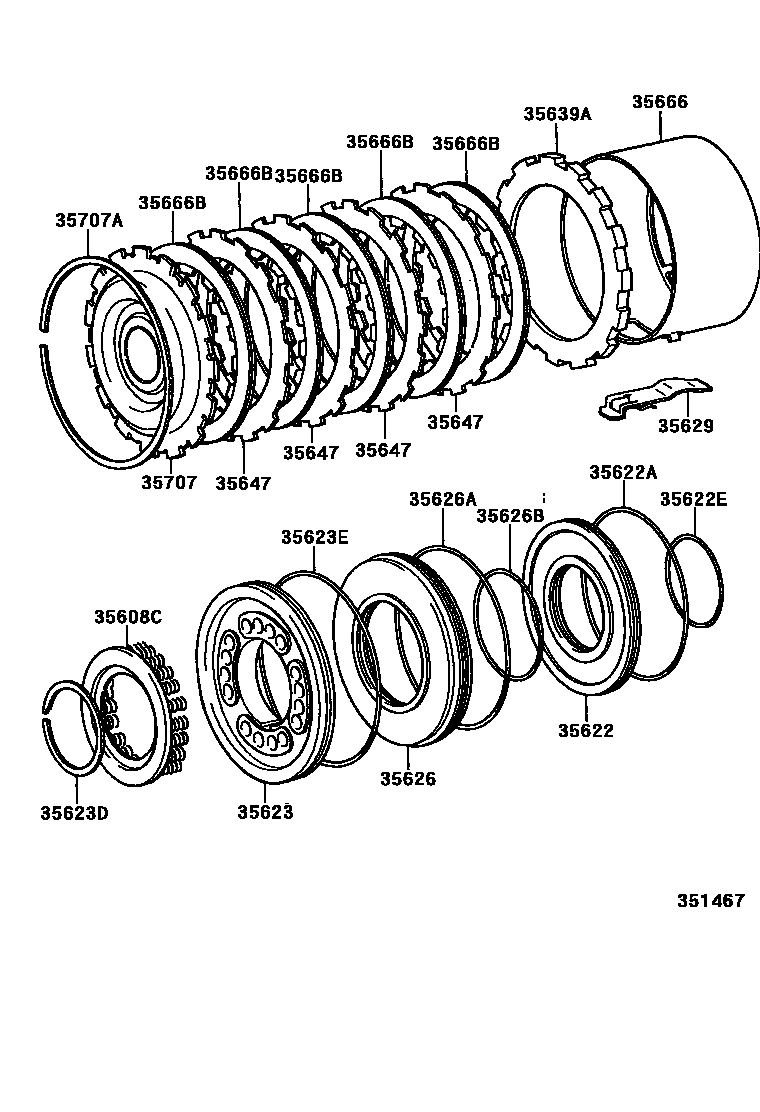

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

0001 1A43DL,A45DL 0002 1A340E

35608CSPRING SUB-ASSY, NO.3 BRAKE PISTON RETURN

main35608-20020iLXH12,22,RCH12,13..ATM199508-199907

35622PISTON, BRAKE, NO.2

main35622-22010iLXH12,22,RCH12,13..ATM199508-199907

main35622-30010iKLH12,22..ATM200108-200608

35622ARING (FOR BRAKE PISTON OUTER)

main90301-99084iLXH12,22,RCH13..ATM199808-199907

main90301-99193iLXH12,22,RCH12,13..ATM199508-199808

35622ERING, O (FOR BRAKE PISTON NO.2)

main90301-56007iLXH12,22,RCH13..ATM199808-199907

main90301-57188iLXH12,22,RCH12,13..ATM199508-199808

main90301-99084iKLH12,22..ATM200108-200608

OUTER

35623PISTON, BRAKE, NO.3

main35623-22010iLXH12,22,RCH12,13..ATM199508-199907

35623DRING, SHAFT SNAP (FOR BRAKE)

main90520-52262iLXH12,22,RCH12,13..ATM199508-199907

35623ERING, O, NO.1 (FOR BRAKE PISTON)

main90301-99110iLXH12,22,RCH13..ATM199907-200108

main90301-99192iLXH12,22,RCH12,13..ATM199508-199808

35626SLEEVE, BRAKE REACTION

main35626-22010iLXH12,22,RCH12,13..ATM199508-199907

main35626-30020iKLH12,22..ATM200108-200608

35626ARING (FOR BRAKE REACTION SLEEVE OUTER)

main90301-99109iLXH12,22,RCH13..ATM199907-200108

main90301-99200iLXH12,22,RCH12,13..ATM199508-199808

35626BRING (FOR BRAKE REACTION SLEEVE INNER)

main90301-67005iLXH12,22,RCH13..ATM199808-199907

main90301-68191iLXH12,22,RCH12,13..ATM199508-199808

35629SPRING (1ST & REVS BRAKE PLATE STOPPER)

main35629-22010iLXH12,22,RCH13..ATM199907-200108

35639APLATE, CLUTCH PRESSURE (FOR BRAKE)

main35639-22010iLXH12,22,RCH12,13..ATM199508-199907

35647PLATE, CLUTCH, NO.2

main35647-22010×4iLXH12,22,RCH12,13..ATM199508-199907

35666TUBE, BRAKE APPLY

main35666-30010iLXH12,22,RCH12,13..ATM199508-199907

35666BDISC, CLUTCH (FOR BRAKE)

main35633-30060×5iLXH12,22,RCH13..ATM199907-200108

35707RACE SUB-ASSY, 1 WAY CLUTCH, INNER

main35707-30030iLXH12,22,RCH13..ATM199508-199907

main35707-30040iRCH12..ATM199508-199804

35707ARING, HOLE SNAP (FOR 1 WAY CLUTCH INNER RACE)

main90521-99140iLXH12,22,RCH12,13..ATM199508-199907

17 parts on this diagram · 2 diagrams in section
