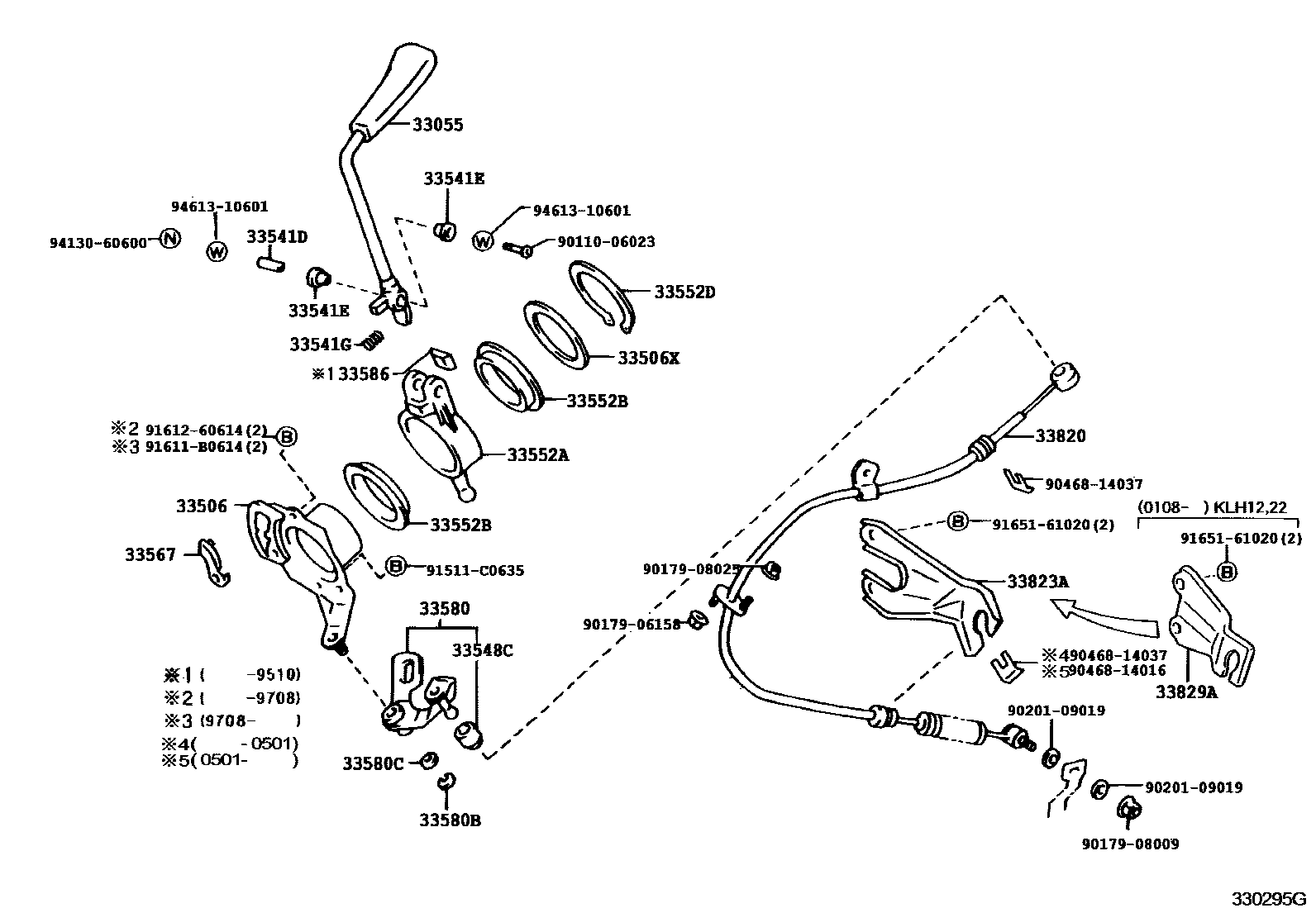

CONTROL SHAFT & CROSSSHAFT
33055LEVER SUB-ASSY, COLUMN SHIFT
33506RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR COLUMN SHIFT)
33506XSPACER (FOR SHIFT LEVER ARM)
T=1.0,ID=47.5
T=1.2,ID=47.5
33541DCOLLAR (FOR COLUMN SHIFT LEVER)
33541EBUSH (FOR COLUMN SHIFT LEVER)
33541GSPRING, COMPRESSION (FOR COLUMN SHIFT LEVER)
33548CBUSH, SHIFT LEVER (FOR COLUMN SHIFT)
33552AARM, SHIFT LEVER
33552BBUSH (FOR SHIFT LEVER ARM)
33552DRING, SNAP (FOR SHIFT LEVER ARM)
33567CLAMP, CONTROL SHAFT TUBE
33580BRING, SHAFT SNAP (FOR SHIFTING BELLCRANK)
33580CWASHER, PLATE (FOR SHIFTING BELL CRANK)
33586STOPPER, CONTROL SHIFT LEVER
33820CABLE ASSY, TRANSMISSION CONTROL (FOR COLUMN SHIFT)
33823ABRACKET, TRANSMISSION CONTROL CABLE
33829ASUPPORT, TRANSMISSION CONTROL CABLE
9011006023
main90110-06023
9017906158
main90179-06158
9017908009
main90179-08009
9017908025
main90179-08025
9020109019
main90201-09019
9046814016
main90468-14016
9046814037
main90468-14037
91511C0635
main91511-C0635
91611B0614
main91611-B0614
9161260614
main91612-60614
9165161020
main91651-61020
9413060600
main94130-60600
9461310601
main94613-10601
31 parts on this diagram · 1 diagram in section
