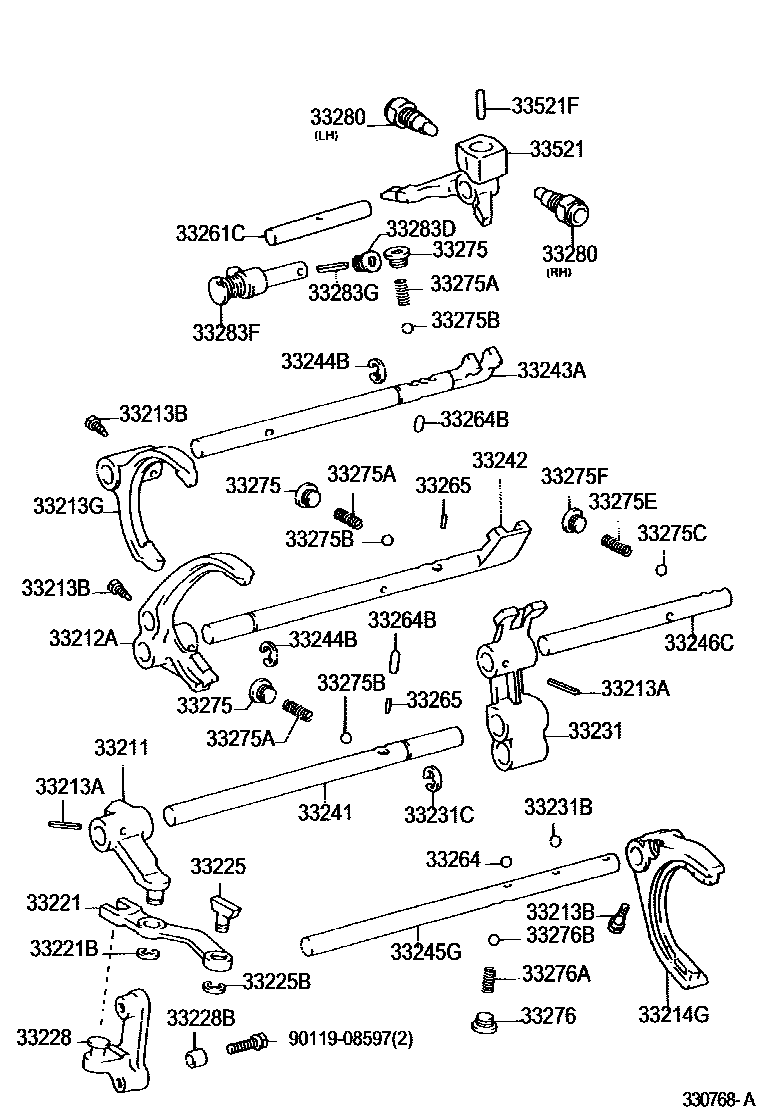

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33211FORK, REVERSE SHIFT
33212AFORK, GEAR SHIFT, NO.1
33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)
33213BBOLT(FOR SHIFT FORK SET)
33221ARM, REVERSE SHIFT
33221BRING, E(FOR REVERSE SHIFT ARM)
33225SHOE, SHIFT ARM
33225BRING, E(FOR SHIFT ARM SHOE)
33228BRACKET, REVERSE SHIFT ARM
33228BPIN, RING(FOR REVERSE SHIFT ARM BRACKET)
33231HEAD, REVERSE SHIFT
33231BBALL, REVERSE SHIFT RESTRICT
33231CRING(FOR REVERSE SHIFT HEAD)
33241SHAFT, REVERSE SHIFT FORK
33242SHAFT, GEAR SHIFT FORK, NO.1
33244BRING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
33246CSHAFT, GEAR SHIFT FORK, NO.5
33261CSHAFT, SHIFT & SELECT LEVER
33264PIN, OR BALL, SHIFT INTERLOCK, NO.1
L=11.5,OD=4.8
OD=9.52,STEEL
33264BROLLER, NO.1 (FOR SHIFT INTERLOCK )
L=21.6,PIN
L=13.6,OD=9.5
33265PIN, SHIFT INTERLOCK, NO.2
L=11.2,OD=4
L=13.6,OD=6
L=11.1,OD=4.8
L=8.6,OD=6
33275SEAT, SHIFT DETENT BALL SPRING, NO.1
OD=18,TYPE B:REFER TO ILLUSTRATION
OD=18
OD=17
OD=17,TYPE A:REFER TO ILLUSTRATION
33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
L=20.2
L=31
L=31,OD=8.7
L=19.9
L=33.8
L=30.5,OD=9.0
L=30.5
33275BBALL, SHAFT DETENT
33275CBALL (FOR SHIFT DETENT)
33275ESPRING, COMPRESSION (FOR SHIFT DETENT BALL)
33275FPLUG (FOR SHIFT DETENT BALL)
PORTUGAL SPEC
33276SEAT, SHIFT DETENT BALL SPRING, NO.2
PORTUGAL SPEC
main90341-12008iLXH12..RHD;LXH12..LHD..SG..03S;LXH12..LHD..5DV..DSL;LXH22,RCH12..DSL,EFI199806-200311
33276ASPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL)
33276BBALL, SHIFT DETENT, NO.2
33280PIN ASSY, REVERSE RESTRICT
LH
RH
LH
RH
LH
RH
33283DPLUG (FOR REVERSE RESTRICT PIN)
main90341-12008iLXH12..RHD;LXH12..LHD..SG..03S;LXH12..LHD..5DV..DSL;LXH22,RCH12..DSL,EFI199806-200608
PORTUGAL SPEC
33283FPIN, REVERSE RESTRICT
33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
33521FPIN OR BOLT (FOR SHIFT LEVER HOUSING)
9011908597
main90119-08597
41 parts on this diagram · 5 diagrams in section
