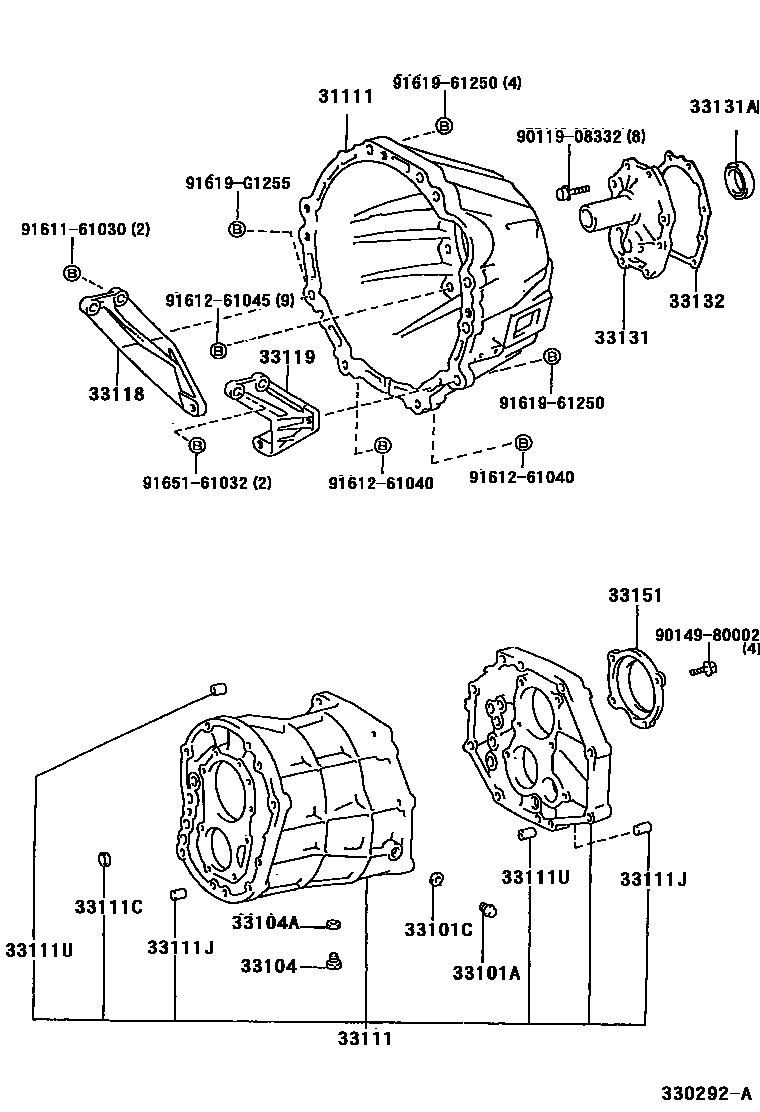

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1G55,G56 0002 1G55,G56,G58 0003 1G56 0004 1R151 0005 1R151 0006 1R151 0007 1W59 0008 1G56 0009 1R151 0011 1R151,R151F

31111HOUSING, CLUTCH

main31111-0W040iLXH12..09S..DSL;LXH12..LHD..4DV..SP..DSL199907-200108

PORTUGAL SPEC

sub31111-26040

main31111-0W070iKLH12,22..LHD..4DV..DCR200108-200202

PORTUGAL SPEC

sub31111-25050

main31111-25030iLXH12,22..MTM..TD199508-200108

main31111-25050iKLH12,22..DCR200108-200608

main31111-26030iRCH12..MTM199508-199601

sub31111-26031

main31111-26031iRCH1#..MTM199601-199703

sub31111-26032

main31111-26032iRCH13,23..MTM199703-200605

main31111-26040iLXH12,22..DSL199508-200108

main31111-26050iLXH18,28199608-200108

main31111-26072iRCH19,29199804-200312

sub31111-26073

main31111-26073iRCH19,29200312-200605

main31111-26080iKLH18,28200108-200608

main31111-35101iKLH12,22200108-200608

sub31111-35102

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iLXH1#,2#..MTM199508-200608

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iLXH1#,2#,RCH1#,2#..(03S,05S,06S,09S)..MTM199508-200608

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iKLH1#,2#199508-200608

main90341-18057iLXH22..DSL;LXH12..RHD;LXH12..LHD..SG..03S;LXH12..LHD..5DV..DSL199601-200108

PORTUGAL SPEC

main90341-18057iRCH12,22199806-200608

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iRCH13,23..MTM199508-200608

33111CASE, MANUAL TRANSMISSION

main33101-26050iLXH12,22,RCH12,18,22,28..MTM..(DSL,EFI)199508-199806

sub33101-35050

main33101-30071iRCH13,23..MTM..(DX,STD)199804-200605

main33101-35050iKLH12,22..DCR199806-200501

sub33101-35051

main33101-35051iKLH12,22..DCR200501-200608

sub33101-71020

main33101-35080iLXH12..MTM..TD199508-199509

sub33101-60050

main33101-35100iKLH1#,2#,RCH19,29..MTM..(EFI,HDCR)199509-200202

sub33101-60040

main33101-60040iKLH1#,2#..MTM..HDCR200202-201109

sub33101-60041

main33101-60041iKLH1#,2#201109-201111

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004iLXH1#,2#,RCH19,29..MTM..(EFI,TD)199508-201109

OD=14

main96411-41800iLXH1#,2#,RCH19,29..MTM..(EFI,TD)199508-201111

OD=18

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002iKLH1#,2#..MTM..HDCR199508-201111

L=16,OD=12

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-15001iLXH12,22..DSL199508-201111

L=14,OD=15

main90253-15001iLXH12..09S..DSL;LXH12..LHD..4DV..SP..DSL199708-199907

L=14,OD=15,PORTUGAL SPEC

main90331-14004iKLH12,22..LHD..4DV..DCR200108-200202

OD=14

main90331-14004iLXH12..09S..DSL;LXH12..LHD..4DV..SP..DSL199708-200108

OD=14,PORTUGAL SPEC

33118PLATE, STIFFENER, RH(MTM)

main33118-25020iLXH12,22..MTM199508-200108

main33118-35070iKLH18,28..03S200108-200608

main33118-37030iRCH13,19,23,29..MTM199508-200605

33119PLATE, STIFFENER, LH(MTM)

main33119-25060iLXH12,22..MTM199805-200108

main33119-25070iKLH12,22200108-200608

main33119-26010iLXH12,22..MTM199508-199805

sub33119-25060

main33119-26021iRCH12,22199508-200605

33131RETAINER, BEARING, FRONT(MTM)

main33131-26020iLXH12,22..DSL199508-200608

main33131-30080iRCH13,23..MTM199804-200605

main33131-35031iLXH1#,2#..MTM..TD199508-200608

sub33131-35032

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30014iRCH12,22199508-200608

main90311-32012iLXH1#,2#..MTM..TD199508-200706

main90311-32022iKLH1#,2#200706

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-28010iLXH12,22,RCH12,18,22,28..MTM..(DSL,EFI)199508-200311

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33107-30020iRCH13,23..MTM..(DX,STD)199804-200010

main33151-30051iRCH13,23..MTM200010-200605

main33151-35020iLXH1#,2#,RCH19,29..MTM..(EFI,TD)199508-200608

main33151-35030iLXH12,22,RCH12,18,22,28..MTM..(DSL,EFI)199508-200608

9011908332

main90119-08332

9014980002

main90149-80002

9161161030

main91611-61030

9161261040

main91612-61040

9161261045

main91612-61045

9161961250

main91619-61250

91619G1255

main91619-G1255

9165161032

main91651-61032

23 parts on this diagram · 10 diagrams in section
