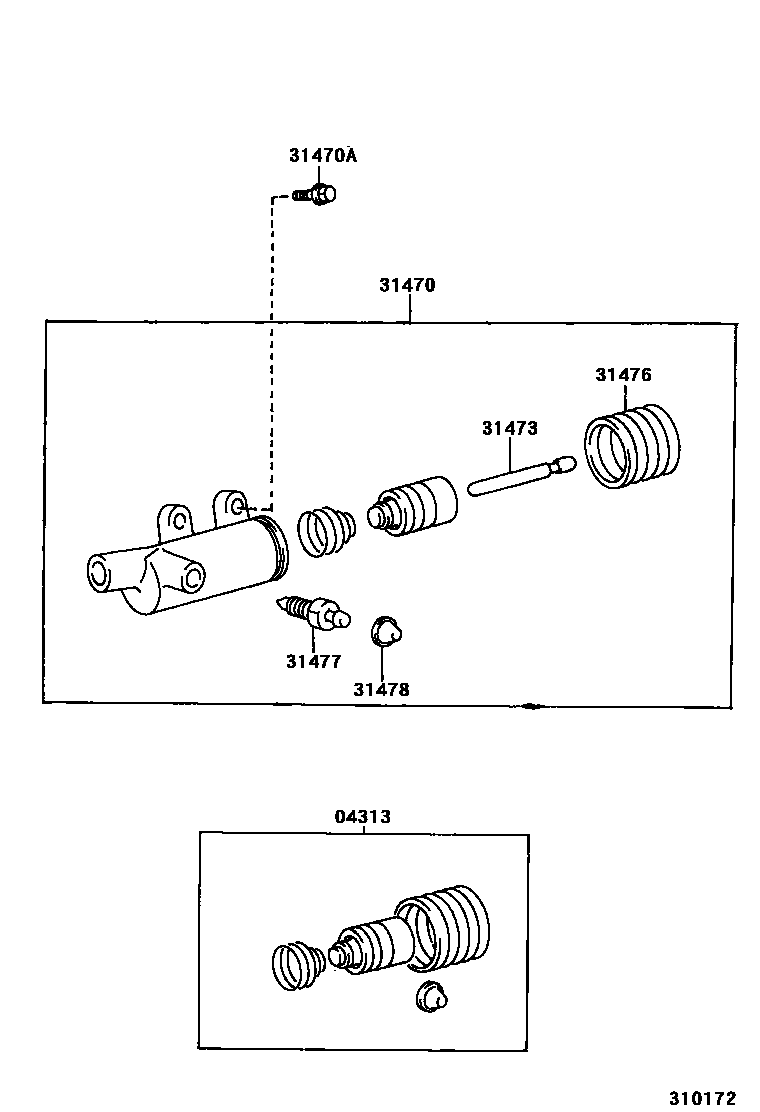

CLUTCH RELEASE CYLINDER

0001 1R151 0002 1G55,G56 0003 1G55,G56,G58 0004 1G56,R151

04313CYLINDER KIT, CLUTCH RELEASE

main04313-17010iLXH1#,2#,RCH1#,2#..(03S,05S,06S,09S)..MTM..(EFI,TD)199508-200605

main04313-22030iLXH12,22..DSL199508-200608

main04313-25070iKLH1#,2#200709-201111

main04313-35060iKLH1#,2#200608-200703

main04313-37030iKLH1#,2#200703-200708

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-25040iKLH1#,2#..MTM200108-200608

main31470-26061iLXH12,22..DSL199508-200108

main31470-26100iRCH1#,2#..(03S,05S,06S,09S)..MTM199508-200605

main31470-35110iLXH1#,2#..MTM..TD199508-200108

main31470-35140iKLH1#,2#200608-201111

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60820iLXH1#,2#..MTM..TD199508-200108

*8-1.25PX20-20

sub91611-G0820

main91611-B0825iKLH1#,2#199508-201111

*8-1.25PX25-25

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-20031iLXH12,22..DSL199508-200108

main31473-32010iKLH1#,2#..MTM199508-200703

main31473-35050iLXH1#,2#..MTM..TD199508-200108

main31473-52020iKLH1#,2#200703-201111

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iLXH1#,2#,RCH1#,2#..(03S,05S,06S,09S)..MTM199508-201111

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iLXH1#,2#,RCH1#,2#..(03S,05S,06S,09S)..MTM199508-201111

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iLXH1#,2#,RCH1#,2#..(03S,05S,06S,09S)..MTM199508-201111

7 parts on this diagram · 4 diagrams in section
