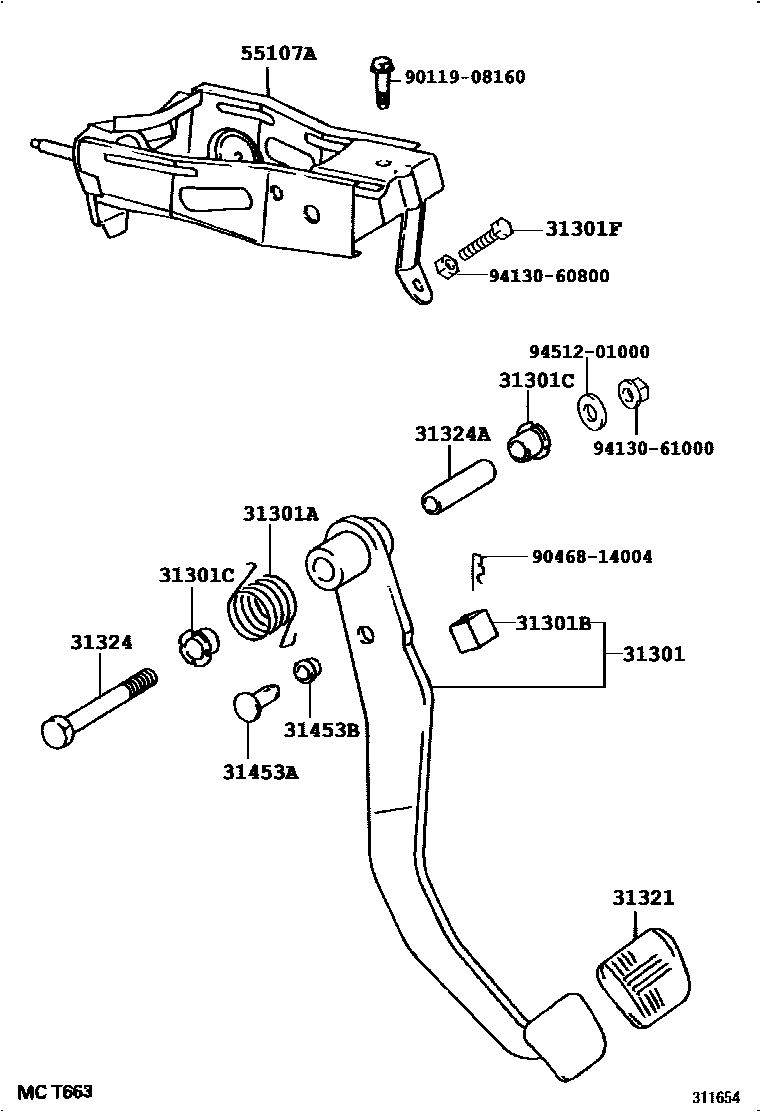

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0003 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-26130iLXH12,22..LHD..MTM199508-200608

main31301-26140iLXH12,22,RCH12..RHD199508-200608

main31310-26010iRCH13,19,2#..LHD..MTM199804-200608

main31310-26020iRCH13..RHD199804-200608

main31310-26031iKLH1#,2#..LHD200608-201111

main31310-26041iKLH12,22..RHD200608-201111

31301ASPRING(FOR CLUTCH PEDAL)

main90949-03010iLXH18,28,RCH13,19,23,29..MTM199804-200108

main90949-03032iKLH12,22..DCR199508-200608

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main47131-10010iLXH1#,2#,RCH1#,2#..(03S,05S,06S,09S)..MTM199508-200608

main90541-06036iKLH1#,2#200608-201111

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13007iKLH12,22..DCR199508-200608

main90386-13015iRCH13..RHD199804-201111

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-08052iLXH1#,2#,RCH12,18,22,28..MTM199508-200608

31321PAD, CLUTCH PEDAL

main31321-14020iLXH1#,2#,RCH1#,2#..(03S,05S,06S,09S)..MTM199508-201111

31324SHAFT, CLUTCH PEDAL

main90101-10081iRCH13,19,2#..MTM199804-200608

main90101-10164iKLH1#,2#200608-201111

main91121-51070iLXH1#,2#,RCH1#,2#..MTM199508-199711

main91121-61070iLXH12,22..MTM199711-200608

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10004iLXH1#,2#,RCH1#,2#..(03S,05S,06S,09S)..MTM199508-201111

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08006iLXH1#,2#..MTM199508-200608

L=23.5

main90240-08071iKLH1#,2#200608-201111

L=23.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iLXH12,22..MTM199508-200608

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-26010iLXH12,22..MTM199508-200608

main55107-26020iLXH18,28,RCH13,19,23,29..MTM199804-200108

main55107-26021iRCH13,19,23,29200108-200608

main55180-26010iKLH1#,2#200608-201111

9011908160

main90119-08160

9046814004

main90468-14004

9413060800

main94130-60800

9413061000

main94130-61000

9451201000

main94512-01000

16 parts on this diagram · 9 diagrams in section
