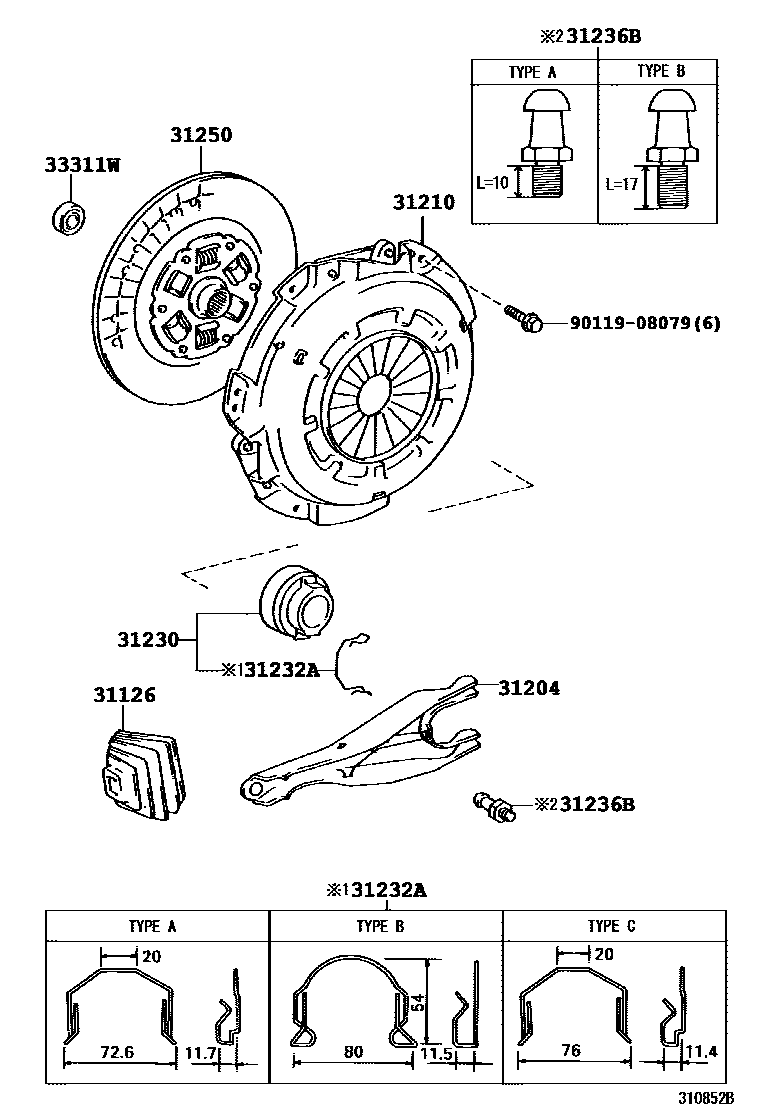

CLUTCH & RELEASE FORK

0001 1 0002 1 0003 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20060iLXH12,22..DSL199508-200108

main31126-26020iRCH13,23..MTM199508-200605

main31126-34010iLXH1#,2#..MTM..TD199508-200108

main31126-36080iRCH19,29199804-200605

main31126-60081iKLH1#,2#200108-201111

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20071iRCH12,22199508-200605

main31204-35031iLXH1#,2#,RCH19,29..MTM..(EFI,TD)199508-200605

main31204-60090iKLH1#,2#..MTM200108-201111

31210COVER ASSY, CLUTCH

main31210-26090iKLH1#,2#..MTM..HDCR200108-200407

sub31210-26130

main31210-26110iRCH12,22199508-200311

sub31210-26120

main31210-26130iKLH1#,2#..MTM..HDCR200407-200602

sub31210-26131

main31210-26131iKLH1#,2#..MTM..HDCR200603-200608

main31210-26150iRCH18,28199608-199708

sub31210-26110

main31210-26160iKLH12,22..DCR200407-200602

sub31210-26161

main31210-26161iKLH12,22..DCR200603-200608

sub31210-26162

main31210-26170iRCH1#,2#200407-200602

sub31210-26171

main31210-26171iRCH1#,2#200603-200605

sub31210-26172

main31210-35100iLXH12,22..DSL199508-199911

sub31210-35101

main31210-35101iLXH12,22..DSL199911-200108

sub31210-35102

main31210-35122iKLH12,22..DCR200108-200407

sub31210-26160

main31210-35181iLXH1#,2#..MTM..TD199508-200108

sub31210-35330

main31210-35191iLXH18,28199907-200108

sub31210-35192

main31210-35200iRCH13,19,23,29..MTM..(DX,STD)199804-200407

sub31210-26170

main31210-35270iKLH1#,2#200608-201111

sub31210-60201

31230BEARING ASSY, CLUTCH RELEASE

main31230-22100iKLH12,22..DCR200108-200608

sub31230-22101

main31230-35060iLXH1#,2#..MTM..TD199508-200108

sub31230-35061

main31230-35070iLXH12,22,RCH19,29..DSL,EFI199508-200605

sub31230-35071

main31230-35090iRCH12,13,18,22,23,28..(03S,05S,06S,09S)..MTM199508-199910

sub31230-35091

main31230-35091iRCH12,13,22,23..MTM199907-200605

main31230-60170iKLH1#,2#200108-201111

31232ACLIP, RELEASE BEARING HUB

main31232-22020iKLH12,22..DCR200108-200608

TYPE C:REFER ILLUST.

main31232-35020iRCH13,19,23,29..MTM199508-200605

TYPE A:REFER ILLUST.

main31232-35030iLXH1#,2#,RCH19,29..MTM199508-200605

TYPE B:REFER ILLUST.

main31232-35040iRCH12,13,18,22,23,28..(03S,05S,06S,09S)..MTM199508-200605

TYPE C:REFER ILLUST.

main31232-36030iKLH1#,2#..MTM..HDCR200108-201111

TYPE A:REFER ILLUST.

main31232-60030iKLH1#,2#..MTM..HDCR200108-200905

TYPE B:REFER ILLUST.

main31232-71010iKLH1#,2#200905-201111

TYPE B:REFER ILLUST.

31236BSUPPORT, RELEASE FORK

main31236-26010iRCH12,22200109-200605

TYPE B:REFER ILLUST.

main31236-30060iLXH12,22..DSL199907-200110

TYPE A:REFER ILLUST.

main31236-30060iLXH12,22,RCH12,13,18,22,23,28..(03S,05S,06S,09S)..MTM..(DSL,EFI)199508-199910

main31236-35030iLXH1#,2#..MTM..TD199508-200605

main31236-60060iKLH1#,2#..MTM200108-201111

31250DISC ASSY, CLUTCH

main31250-25150iKLH12,22..DCR200108-200511

sub31250-25180

main31250-25160iKLH1#,2#..MTM..HDCR200108-200407

sub31250-26210

main31250-25170iKLH12,22..DCR200511-200608

main31250-26052iLXH12,22..DSL199508-199708

sub31250-26053

main31250-26160iRCH1#..MTM199508-199708

sub31250-35380

main31250-26181iLXH1#,2#..MTM..TD199612-199708

sub31250-26182

main31250-26190iLXH1#..MTM..TD199508-199612

sub31250-26191

main31250-26191iLXH1#,2#..MTM..TD199708-200012

sub31250-26192

main31250-26192iLXH1#,2#..MTM..TD200012-200108

sub31250-26182

main31250-26210iKLH1#,2#..MTM..HDCR200407-200608

sub31250-26260

main31250-26230iRCH1#,2#200407-200605

sub31250-26231

main31250-26240iKLH1#,2#200608-201007

sub31250-26241

main31250-26241iKLH1#,2#201008-201111

main31250-35221iLXH12,22..DSL199708-199906

sub31250-35222

main31250-35222iLXH12,22..DSL199906-199911

main31250-35380iRCH2#199703-199901

sub31250-35381

main31250-35381iRCH12199901-200311

sub31250-35382

main31250-35400iRCH13,19,23,29..MTM199804-200407

sub31250-26230

main31250-35410iLXH12,22..DSL199911-200108

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iLXH1#,2#,RCH1#,2#..(03S,05S,06S,09S)..MTM199508-201111

sub90363-12024

main90363-12018iRCH1#,2#..MTM200006-200605

9011908079

main90119-08079

9 parts on this diagram · 3 diagrams in section
