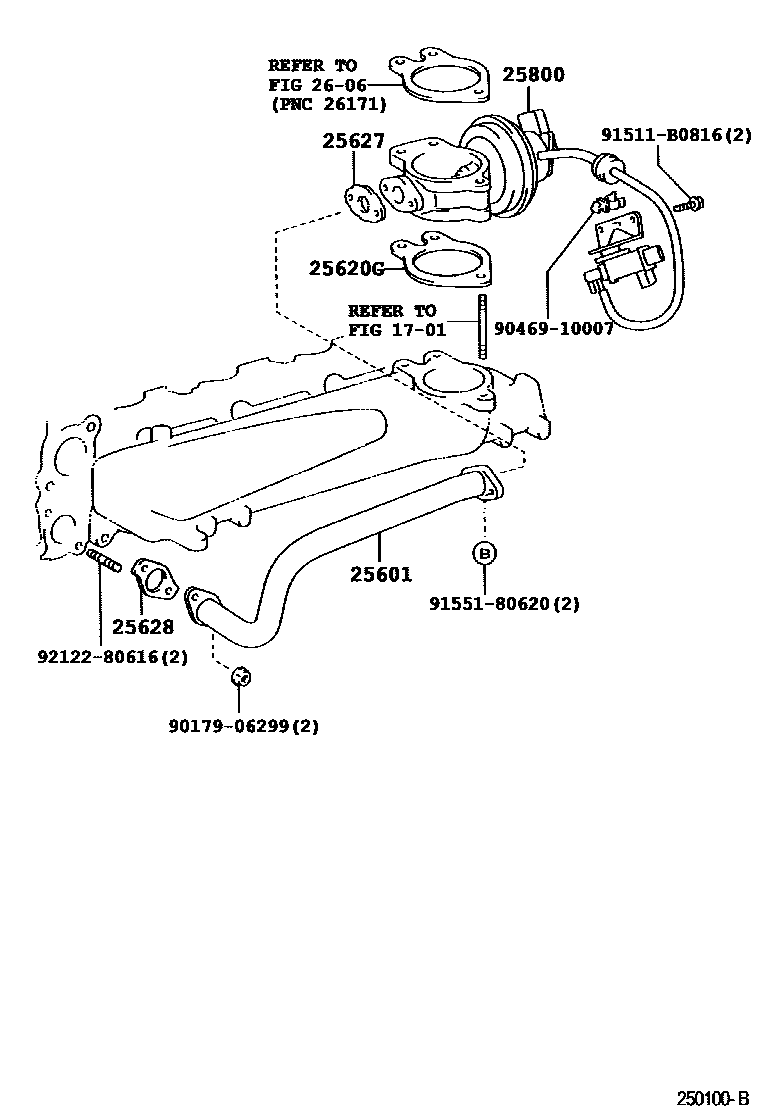

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1 0003 1 0004 1

1701

25601PIPE SUB-ASSY, EGR, NO.1

main25601-30030i2KDFTV..KLH1#,2#200108-200608

main25601-30080i2KDFTV..KLH1#,2#200608-201111

sub25601-0L020

main25601-54090i2L..LXH12,22199804-200108

main25601-54100i2LT..LXH1#,2#199804-200108

main25611-75021i3RZFE..RCH13,19,23,29200108

25620VALVE ASSY, EGR

main25620-75040i3RZFE..RCH13,19,23,29200108

25620GGASKET, DIESEL THROTTLE

main26171-30011i2KDFTV..KLH1#,2#200108-200210

sub26171-30012

main26171-30012i2KDFTV..KLH1#,2#200210-200403

sub26171-30013

main26171-30013i2KDFTV..KLH1#,2#200403-200608

main26171-30030i2KDFTV..KLH1#,2#200608

25627GASKET, EGR VALVE

main25627-30010i2KDFTV..KLH1#,2#200108-201011

main25627-30060i2KDFTV..KLH1#,2#201011

main25627-54011i2L#..LXH1#,2#199804-200108

25628GASKET, EGR INLET

main25628-30010i2KDFTV..KLH1#,2#200108-200910

main25628-30030i2KDFTV..KLH1#,2#200910-201105

sub25628-30031

main25628-30031i2KDFTV..KLH1#,2#201105

main25628-54012i2L#..LXH1#,2#199804-200108

main25628-75010i3RZFE..RCH13,19,23,29200108

25800VALVE ASSY, ELECTRIC EGR CONTROL

main25800-30040i2KDFTV..KLH1#,2#200108-200608

main25800-30130i2KDFTV..KLH1#,2#200608

main25800-54200i2L..LXH12,22199804-200108

main25800-54210i2LT..LXH1#,2#..MTM199804-200108

main25800-54230i2LT..LXH12,22..ATM199804-200108

2606

9017906299

main90179-06299

9046910007

main90469-10007

91511B0816

main91511-B0816

9155180620

main91551-80620

9212280616

main92122-80616

13 parts on this diagram · 4 diagrams in section
