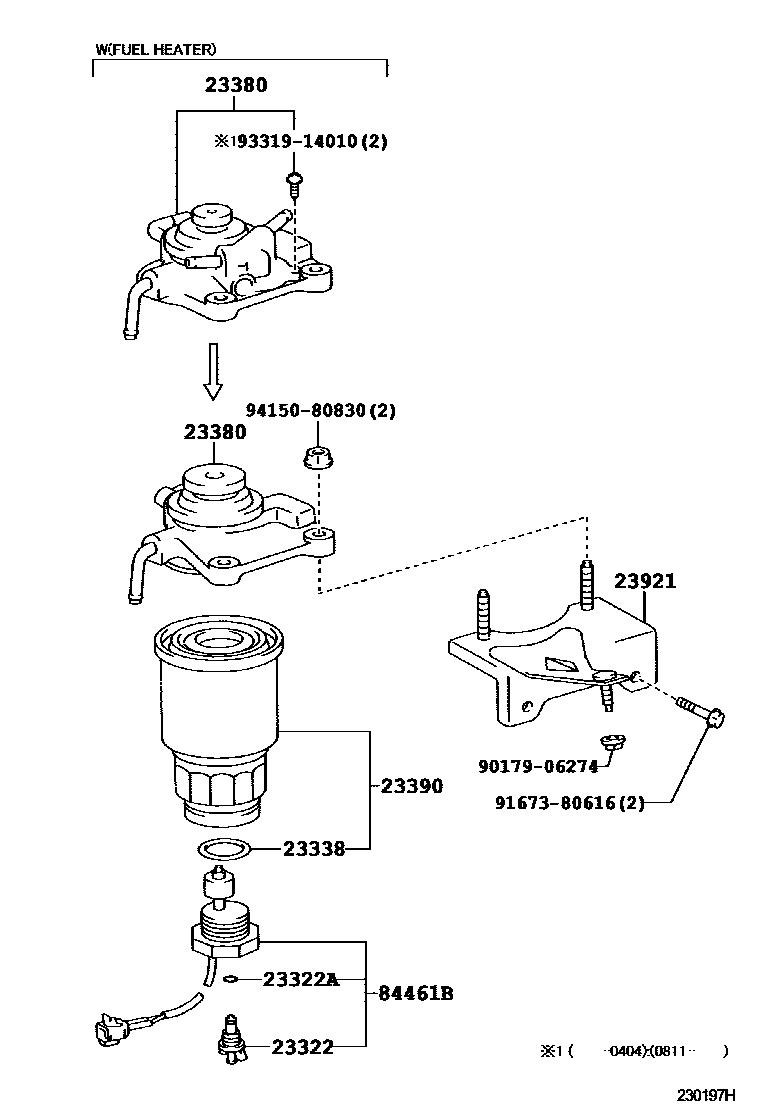

FUEL FILTER

0001 1 0002 1 0003 1

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-64020i2L#..LXH1#,2#199508-199708

main23388-64470i2L#..LXH1#,2#199708-199907

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i2L#..LXH1#,2#199508-199907

23338GASKET(FOR WARNING SWITCH)

main23344-64010i2L#..LXH1#,2#199508-199907

23380CAP ASSY, FUEL FILTER

main23380-30130i2KDFTV..KLH1#,2#200108-200608

main23380-30131i2KDFTV..KLH1#,2#200811

W/O(FUEL HEATER)

main23380-30140i2KDFTV..KLH1#,2#200108-200608

COLD SPEC

sub23380-30141

main23380-30290i2KDFTV..KLH1#,2#200608-200811

main23380-30291i2KDFTV..KLH1#,2#200811

sub23380-30460

main23380-54810i2L#..LXH1#,2#199508-199708

main23380-54820i2L#..LXH1#,2#199508-199708

W(FUEL HEATER)

main23380-5B170i2L#..LXH1#,2#199907-200108

sub23380-5B171

main23380-5B180i2L#..LXH1#,2#199708-199907

W(FUEL HEATER)

sub23380-5B181

main23380-5B200i2LT..LXH12,22..5DV199907-200108

ISRAEL SPEC

sub23380-5B201

23390ELEMENT ASSY, FUEL FILTER

main23390-30090i2KDFTV..KLH1#,2#200811-200912

main23390-30180i2KDFTV..KLH1#,2#200608-200811

main23390-30350i2KDFTV..KLH1#,2#200912

main23390-64450i2L#..LXH1#,2#199907-200108

sub23390-33030

main23390-64480i2LT..LXH12,22..5DV199711-199907

ISRAEL SPEC

23921SUPPORT, FUEL FILTER

main23921-54370i2L#..LXH1#,2#199508-199907

84461BSWITCH, LEVEL WARNING

main84461-26080iLXH1#,2#199508-199708

sub84461-35110

main84461-26090iLXH1#,2#199708-199907

sub84461-26091

9017906274

main90179-06274

9167380616

main91673-80616

9331914010

main93319-14010

9415080830

main94150-80830

11 parts on this diagram · 3 diagrams in section
