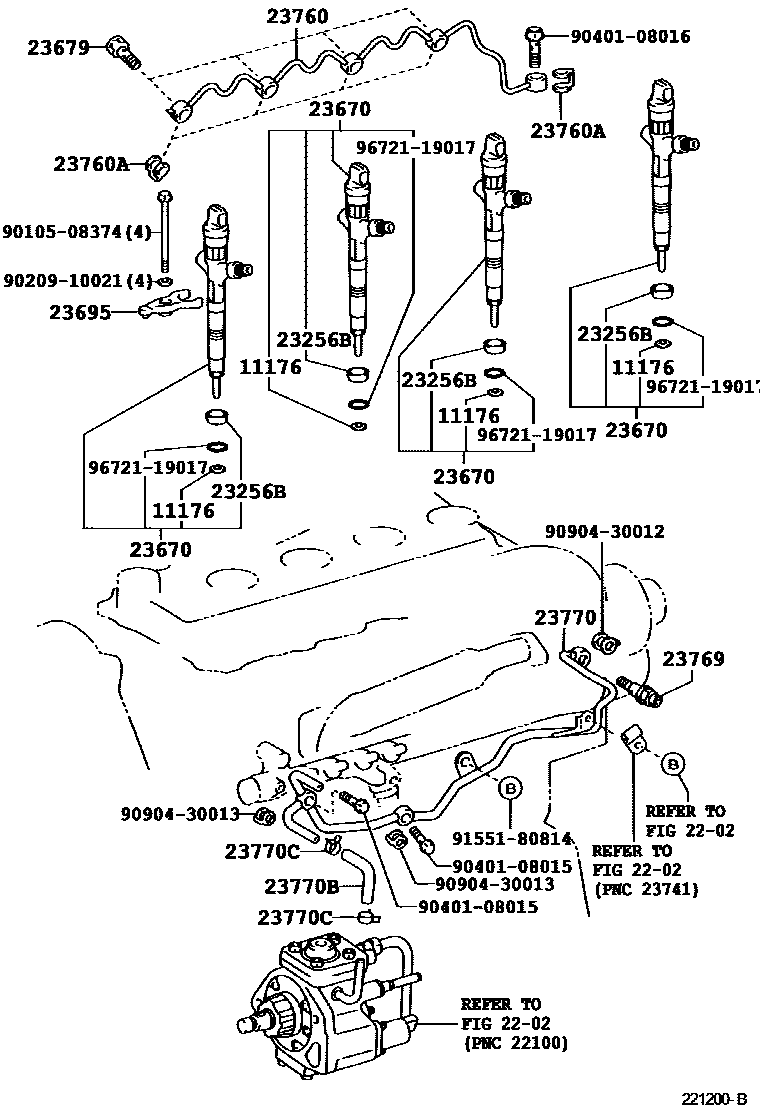

INJECTION NOZZLE

0001 1 0002 1 0003 1

11176SEAT, INJECTION NOZZLE

main11176-30010i2KDFTV..KLH1#,2#¥410200108-200710

sub11176-30011¥240

main11176-30011i2KDFTV..KLH1#,2#¥240200710

main11176-64010i2L#..LXH1#,2#¥250199508-200108

2202

23256BRING, FUEL INJECTOR BACK-UP, NO.1

main23256-30010i2KDFTV..KLH1#,2#¥480200108-200608

23670INJECTOR ASSY

main23670-39035i2KDFTV..KLH1#,2#¥80,100200108-200608

sub23670-39036¥80,100

main23670-39145i2KDFTV..KLH1#,2#200608-200710

sub23670-39146

main23670-39146i2KDFTV..KLH1#,2#200710-200712

sub23670-39285

main23670-39285i2KDFTV..KLH1#,2#200801

23679SCREW, INJECTOR FOLLOW

main23679-27020i2KDFTV..KLH1#,2#200108-200608

main23679-30020i2KDFTV..KLH1#,2#¥0200608-201001

sub23679-30021

main23679-30021i2KDFTV..KLH1#,2#201001

23695CLAMP, NOZZLE HOLDER, NO.1

main23695-0L010i2KDFTV..KLH1#,2#¥950200906-201007

sub23695-30011¥950

main23695-30010i2KDFTV..KLH1#,2#¥1,390200108-200809

sub23695-30011¥950

main23695-30011i2KDFTV..KLH1#,2#¥950200809-200906

23760PIPE ASSY, NOZZLE LEAKAGE

main23760-30020i2KDFTV..KLH1#,2#¥3,380200108-200608

main23760-54030i2L#..LXH1#,2#¥2,460199508-200108

23760AGASKET

main90904-30013i2KDFTV..KLH1#,2#¥300200108-200608

23769VALVE, FUEL CHECK

main23769-30010i2KDFTV..KLH1#,2#¥2,210200108-200608

23770PIPE ASSY, NOZZLE LEAKAGE, NO.2

main23770-30030i2KDFTV..KLH1#,2#¥6,300200108-200206

main23770-30031i2KDFTV..KLH1#,2#¥6,300200206-200608

main23770-30090i2KDFTV..KLH1#,2#200608

23770BHOSE, FUEL

main95333-04020i2L#..LXH1#,2#¥510199508-200108

L=200(*H,L=120),ID=4

main95333-06020i2KDFTV..KLH1#,2#¥480200108-200601

L=200(*H,L=150)

sub95337-06020¥570

main95337-06010i2KDFTV..KLH1#,2#¥220200608

L=100

main95337-06015i2KDFTV..KLH1#,2#¥220200601-200608

L=150

23770CCLAMP OR CLIP(FOR FUEL HOSE SET)

main96133-41000i2L#..LXH1#,2#¥130199508-200108

sub96132-51000¥160

main96135-51100i2KDFTV..KLH1#,2#¥130200108-200608

9010508374

main90105-08374¥260

9020910021

main90209-10021¥90

9040108015

main90401-08015¥320

9040108016

main90401-08016¥260

9090430012

main90904-30012¥360

9090430013

main90904-30013¥300

9155180814

main91551-80814¥80

9672119017

main96721-19017¥160

20 parts on this diagram · 3 diagrams in section
