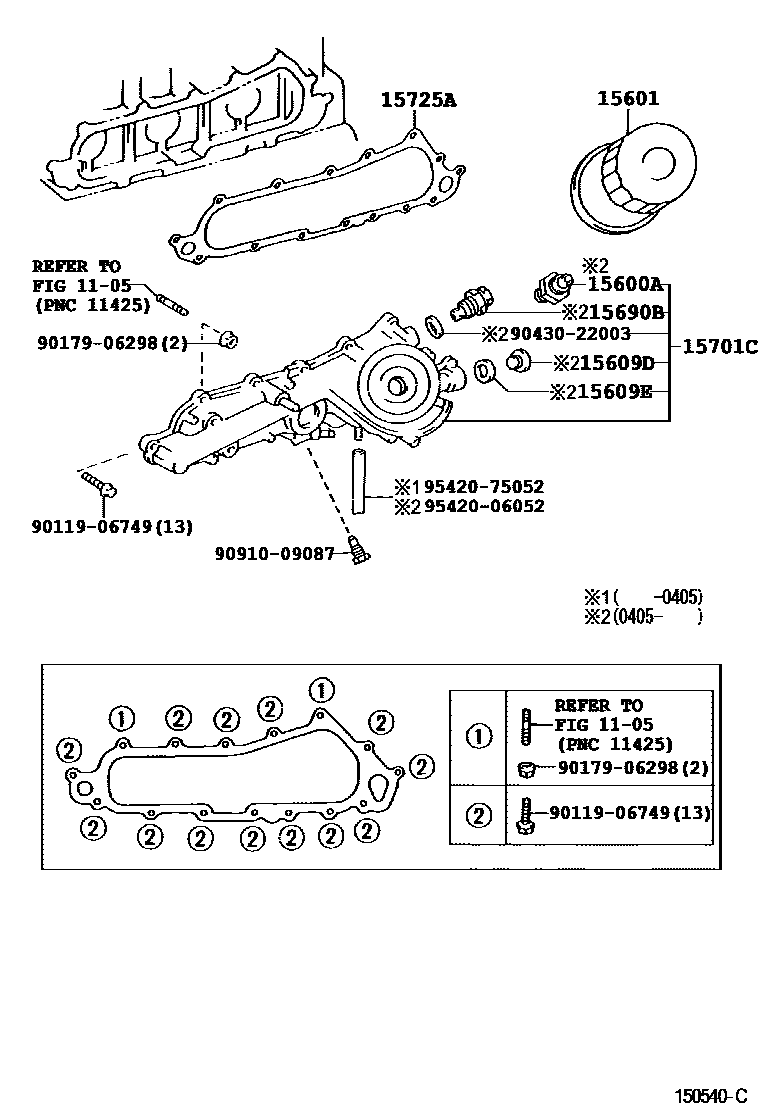

OIL FILTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1105

15600AUNION(FOR OIL FILTER)

main15116-54021i2L#..LXH1#,2#199508-200108

main90404-19002i2KDFTV..KLH1#,2#200405-200608

main90404-19017i3RZFE..RCH13,19,23,29..DX,STD199804-200605

15601FILTER SUB-ASSY, OIL

main90915-20001i3RZFE..RCH13..RHD199508-199910

sub90915-20003

main90915-20003i2RZE,3RZFE..RCH1#,2#199908-200608

sub90915-20005

main90915-30002i2L#..LXH1#,2#199508-200108

main90915-40001i2KDFTV..KLH1#,2#200108-200408

sub90915-20003

15609BRACKET SUB-ASSY, OIL FILTER

main15609-54081i2L..LXH12199508-199509

main15609-54082i2L..LXH12,22199509-200108

main15609-54100i2LT..LXH12199508-199509

sub15609-54101

main15609-54101i2LT..LXH1#,2#199509-199804

main15609-54102i2LT..LXH1#,2#199804-200108

main15609-75010i2RZE..RCH12,18,22,28199508-200311

sub15609-75050

sub90404-19015

main15609-75030i3RZFE..RCH13,19,23,29..DX,STD199804-199910

15609DPLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)

main90341-20002i2KDFTV..KLH1#,2#200405-200608

15609EGASKET, W/HEAD STRAIGHT SCREW PLUG

main15134-67020i2KDFTV..KLH1#,2#200405-200608

15690BVALVE ASSY, OIL COOLER RELIEF

main15690-64010i2KDFTV..KLH1#,2#200405-201101

sub15690-64011

main15690-64011i2KDFTV..KLH1#,2#201101

15701CCOVER SUB-ASSY, OIL COOLER

main15701-30030i2KDFTV..KLH1#,2#200108-200405

sub15701-30031

sub95420-06052

main15701-30031i2KDFTV..KLH1#,2#200405-200608

main15701-30090i2KDFTV..KLH1#,2#200608-200912

sub15701-30091

sub90910-09087

main15701-30091i2KDFTV..KLH1#,2#200912

15725AGASKET, OIL COOLER COVER

main15725-67010i2KDFTV..KLH1#,2#200108-200608

9011906749

main90119-06749

9017906298

main90179-06298

9043022003

main90430-22003

9091009087

main90910-09087

9542006052

main95420-06052

9542075052

main95420-75052

15 parts on this diagram · 6 diagrams in section
