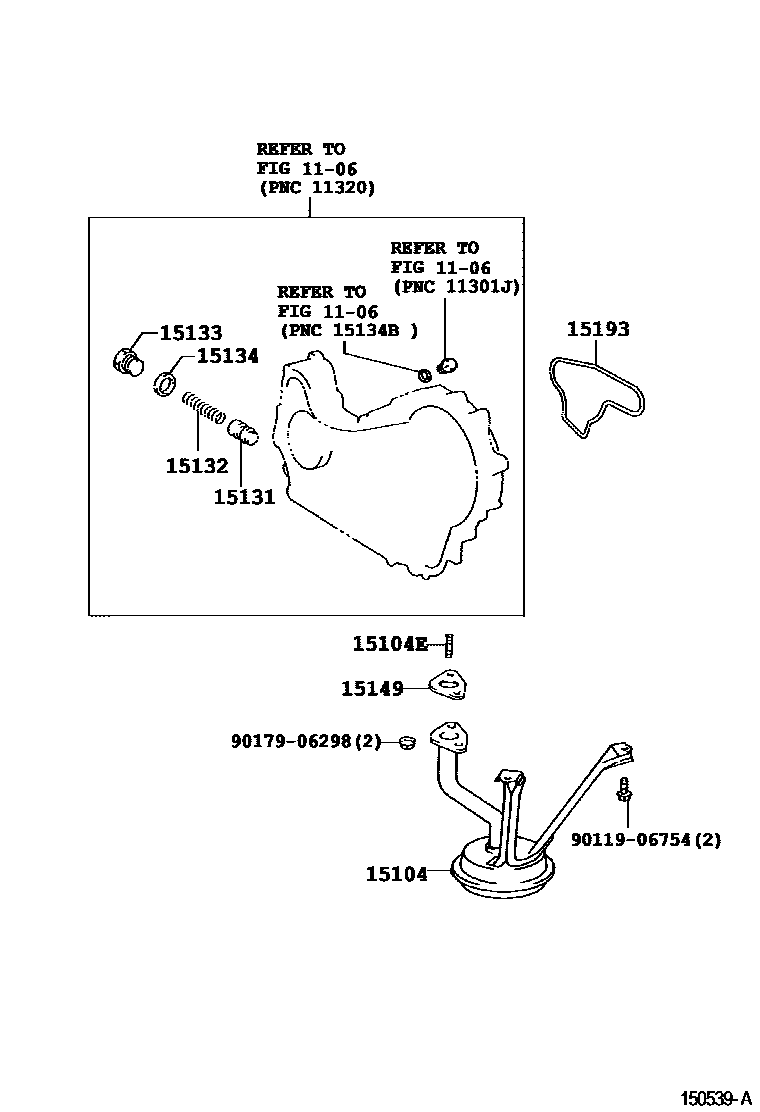

ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1

1106

15104STRAINER SUB-ASSY, OIL

main15104-54160i2L#..LXH12199508-199701

sub15104-54161

main15104-54161i2L#..LXH12,22199701-200108

main15104-54201i2LT..LXH18199608-199701

sub15104-54202

main15104-54202i2LT..LXH18,28199701-200108

main15104-67060i2KDFTV..KLH12,22200108-200608

main15104-67070i2KDFTV..KLH18,28200108-200608

main15104-75020i2RZE,3RZFE..RCH12,13,22,23..03S,05S,06S,09S199508-199910

main15104-75060i3RZFE..RCH19,29199608-200209

sub15104-75061

main15104-75061i3RZFE..RCH19,29200209

15104EBOLT, STUD(FOR OIL STRAINER)

main90116-06140i2KDFTV..KLH1#,2#200108-200608

main92122-40816i2L#..LXH1#,2#199508-200108

15131VALVE, OIL PUMP RELIEF

main15131-24010i2RZE,3RZFE..RCH1#,2#..03S,05S,06S,09S199508-200605

main15131-46040i2KDFTV..KLH1#,2#200108-200608

main15131-54010i2L#..LXH1#,2#199508-200108

15132SPRING, OIL PUMP RELIEF VALVE

main15132-17010i2KDFTV..KLH1#,2#200108-200608

main15132-54010i2L#..LXH1#,2#199508-200108

main15132-75010i2RZE..RCH12,22199508-200311

main15132-75020i3RZFE..RCH13,19,23,29..DX,STD199804-200605

NO.1

main15132-75021i3RZFE..RCH13,19,23,29..DX,STD199804-200605

NO.2

15133PLUG, OIL PUMP RELIEF VALVE

main15133-17010i2KDFTV..KLH1#,2#200108-200608

main15133-54010i2L#..LXH1#,2#199508-200108

15134GASKET, OIL PUMP RELIEF VALVE

main15134-67020i2KDFTV..KLH1#,2#200108-200608

15149GASKET, OIL STRAINER FLANGE

main15149-67010i2KDFTV..KLH1#,2#200108-200608

15193GASKET, OIL PUMP

main15193-67011i2KDFTV..KLH1#,2#200108-200608

9011906754

main90119-06754

9017906298

main90179-06298

11 parts on this diagram · 4 diagrams in section
