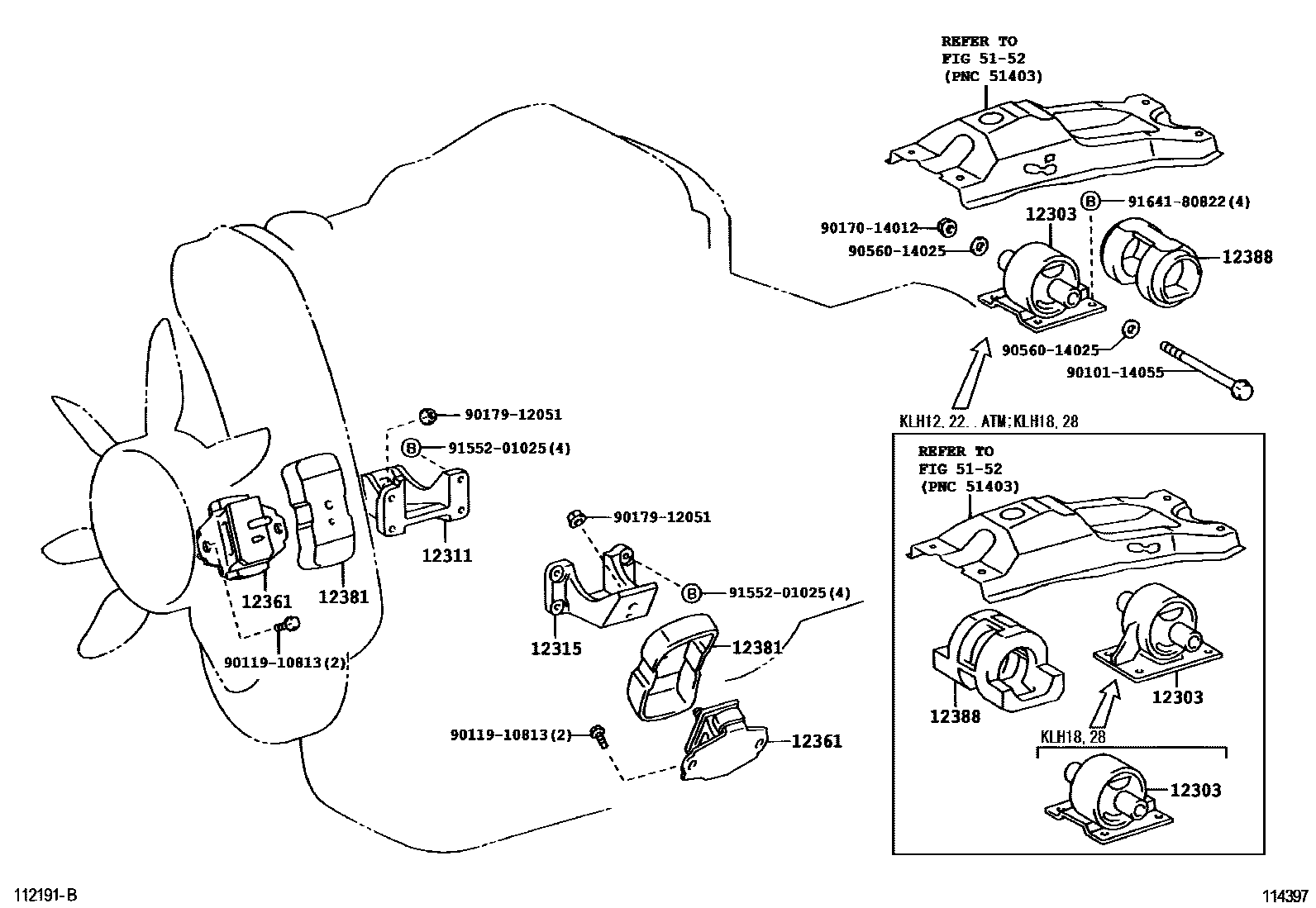

MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1

12303BRACKET SUB-ASSY, ENGINE MOUNTING, REAR

main12303-54050i2RZE,3RZFE..RCH12,13,22,23..(03S,05S,06S,09S)..MTM199508-201111

main12303-54060i3RZFE..RCH13..ATM199508-200608

main12303-54071i3RZFE..RCH19,29199608-201111

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-30050i2KDFTV..KLH1#,2#200108-200608

main12311-30080i2KDFTV..KLH1#,2#200608

main12311-54220i2L#..LXH1#,2#199508-200108

main12311-75060i2RZE,3RZFE..RCH1#,2#199508-200311

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-30050i2KDFTV..KLH1#,2#200108-200608

main12315-30080i2KDFTV..KLH1#,2#200608

main12315-54030i2L#..LXH1#,2#199508-200108

main12315-75060i2RZE,3RZFE..RCH1#,2#..03S,05S,06S,09S199508-200311

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-30060i2KDFTV..KLH1#,2#200407-200608

sub12361-30090

main12361-30090i2KDFTV..KLH1#,2#200608

main12361-38130i2RZE,3RZFE..RCH1#,2#..03S,05S,06S,09S199508-200605

main12361-54220i2L#..LXH1#,2#199508-200108

main12361-67050i2KDFTV..KLH1#,2#200108-200406

sub12361-30060

12381STABILIZER, ENGINE MOUNTING

main12381-54080i2L#..LXH1#199508-199701

sub12381-54081

main12381-54081i2L#..LXH1#,2#199701-200108

main12381-67010i2KDFTV..KLH1#,2#200608

main12381-67020i2KDFTV..KLH1#,2#200108-200608

main12381-75030i2RZE,3RZFE..RCH1#,2#..03S,05S,06S,09S199508-200605

12388STOPPER, ENGINE MOUNTING BRACKET, REAR

main12388-54010i2L#..LXH12,22..MTM199508-200909

sub12388-54011

main12388-54011i2KDFTV..KLH12,22200910

main12388-54020i2KDFTV..KLH12,22..ATM199512-200608

main12388-54030i2RZE,3RZFE..RCH18,19,28,29199608-200909

sub12388-54031

main12388-54031i2KDFTV..KLH18,28200910

5152

9010114055

main90101-14055

9011910813

main90119-10813

9017014012

main90170-14012

9017912051

main90179-12051

9056014025

main90560-14025

9155201025

main91552-01025

9164180822

main91641-80822

14 parts on this diagram · 5 diagrams in section
