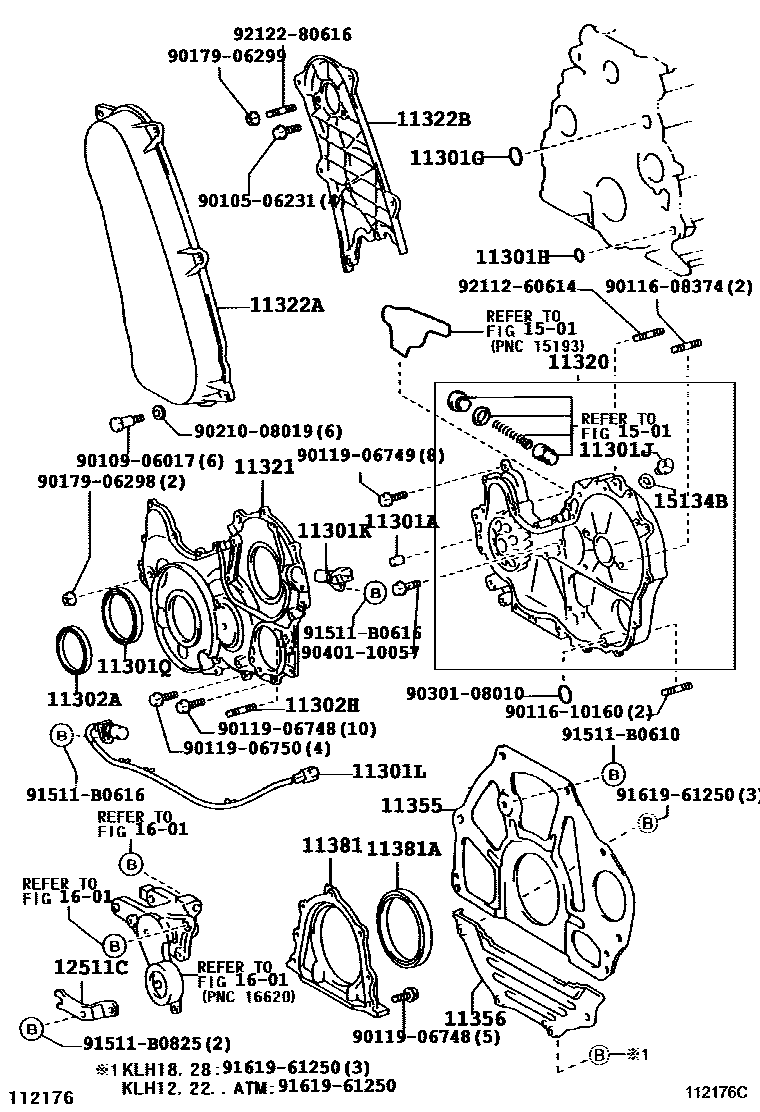

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

11301CASE SUB-ASSY, TIMING GEAR

main11301-75021i3RZFE..RCH13,19,23,29199804-200605

main11301-75050i2RZE..RCH12,22199508-200311

main11311-05012i2L#..LXH1#,2#199907-200108

(L)

main11311-54052i2L#..LXH1#,2#199508-199907

main11311-54052i2L#..LXH1#,2#199907-200108

(J)

11301APIN, STRAIGHT(FOR TIMING GEAR CASE)

main90250-08120i2KDFTV..KLH1#,2#200108-200608

L=18,OD=8

11301GRING, O(FOR TIMING GEAR CASE, UPPER)

main90301-22007i2KDFTV..KLH1#,2#200108-200608

11301HRING, O(FOR TIMING GEAR CASE, LOWER)

main90301-09018i2KDFTV..KLH1#,2#200108-200608

11301JPLUG, W/HEAD STRAIGHT SCREW(FOR TIMING GEAR CASE)

main90341-18015i2KDFTV..KLH1#,2#200108-200608

11301KSENSOR, CRANK POSITION

main90919-05016i3RZFE..RCH13,19,23,29199804-200605

main90919-05025i2KDFTV..KLH1#,2#200910

main90919-05052i2KDFTV..KLH1#,2#200108-200910

sub90919-05025

11301LSENSOR, CRANK POSITION NO.2

main90919-05050i2KDFTV..KLH1#,2#200108-200407

main90919-05066i2KDFTV..KLH1#,2#200407-200910

sub90919-05050

11301QSEAL, TYPE T OIL(FOR INJECTION PUMP)

main90311-65003i2KDFTV..KLH1#,2#200108-201111

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11321-54020i2L#..LXH1#,2#199508-200108

sub11321-54021

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-50017i2KDFTV..KLH1#,2#200108-201111

sub90311-50051

11302HBOLT, STUD(FOR TIMING GEAR COVER)

main90116-08374i2KDFTV..KLH1#,2#200605-200901

sub92122-80828

main90116-08376i2KDFTV..KLH1#,2#200108-200605

sub90116-08377

main90116-08377i2KDFTV..KLH1#,2#200901

11320CASE ASSY, TIMING GEAR

main11320-30021i2KDFTV..KLH1#,2#200108-200910

main11320-30060i2KDFTV..KLH1#,2#200910

11321CASE, TIMING GEAR

main11321-30020i2KDFTV..KLH1#,2#200108-200608

11322ACOVER, TIMING BELT, NO.1

main11332-30010i2KDFTV..KLH1#,2#200108-200406

sub11332-30011

main11332-30011i2KDFTV..KLH1#,2#200406-200608

11322BCOVER, TIMING BELT, NO.2

main11322-30010i2KDFTV..KLH1#,2#200108-200608

main11322-54020i2L#..LXH1#,2#199508-199708

sub11322-54021

main11322-54021i2LT..LXH1#,2#;2L..LXH12,22..RHD;2L..LXH12,22..LHD..5DV;2L..LXH12..LHD..SG..03S199708-200108

sub11322-54022

11355PLATE, REAR END

main11355-54030i2L#..LXH12,22..MTM199508-200108

main11355-54090i2LT..LXH12,22..ATM199508-200108

main11355-54130i2LT..LXH18,28199608-200108

main11355-67010i2KDFTV..KLH1#,2#200108-200502

main11355-67011i2KDFTV..KLH1#,2#200502-200608

main11355-75010i2RZE,3RZFE..RCH1#,2#..03S,05S,06S,09S199508-200605

11356PLATE, REAR END, NO.2

main11356-30020i2KDFTV..KLH12,22200108-200608

sub11356-30021

main11356-30030i2KDFTV..KLH18,28200108-200608

main11356-67020i2KDFTV..KLH18,28200108-200808

sub11356-67021

11381RETAINER, ENGINE REAR OIL SEAL

main11381-05010i2L..LXH12..SG..STD;2L..LXH12..RHD..4DV..STD199911-200108

main11381-0K010i2KDFTV..KLH1#,2#200608

(L)

main11381-54020i2L#..LXH1#,2#199508-199909

sub11381-54030

sub90116-08404

main11381-54030i2L#..LXH1#,2#199909-200108

main11381-67020i2KDFTV..KLH1#,2#200608

(J)

main11381-67020i2KDFTV..KLH1#,2#200108-200608

main11381-75010i2RZE,3RZFE..RCH1#,2#199508-200605

sub11381-75011

11381ASEAL, ENGINE REAR OIL

main90311-85007i2L#..LXH1#199508-199703

main90311-85008i2L#..LXH1#,2#199703-200108

main90311-88003i2RZE,3RZFE..RCH1#,2#..03S,05S,06S,09S199508-200009

main90311-88005i2RZE,3RZFE..RCH1#,2#200009-200605

ARS

sub90311-88006

main90311-95008i2KDFTV..KLH1#,2#200108-200608

12511CBRACKET, ALTERNATOR

main12511-30030i2KDFTV..KLH1#,2#200108-200406

main12511-30031i2KDFTV..KLH1#,2#200407-200608

main12511-30040i2KDFTV..KLH1#,2#200608

1501

15134BGASKET, OIL PUMP RELIEF VALVE

main15134-67010i2KDFTV..KLH1#,2#200108-200608

1601

9010506231

main90105-06231

9010906017

main90109-06017

9011608374

main90116-08374

9011610160

main90116-10160

9011906748

main90119-06748

9011906749

main90119-06749

9011906750

main90119-06750

9017906298

main90179-06298

9017906299

main90179-06299

9021008019

main90210-08019

9030108010

main90301-08010

9040110057

main90401-10057

91511B0610

main91511-B0610

91511B0616

main91511-B0616

91511B0825

main91511-B0825

9161961250

main91619-61250

9211260614

main92112-60614

9212280616

main92122-80616

41 parts on this diagram · 7 diagrams in section
