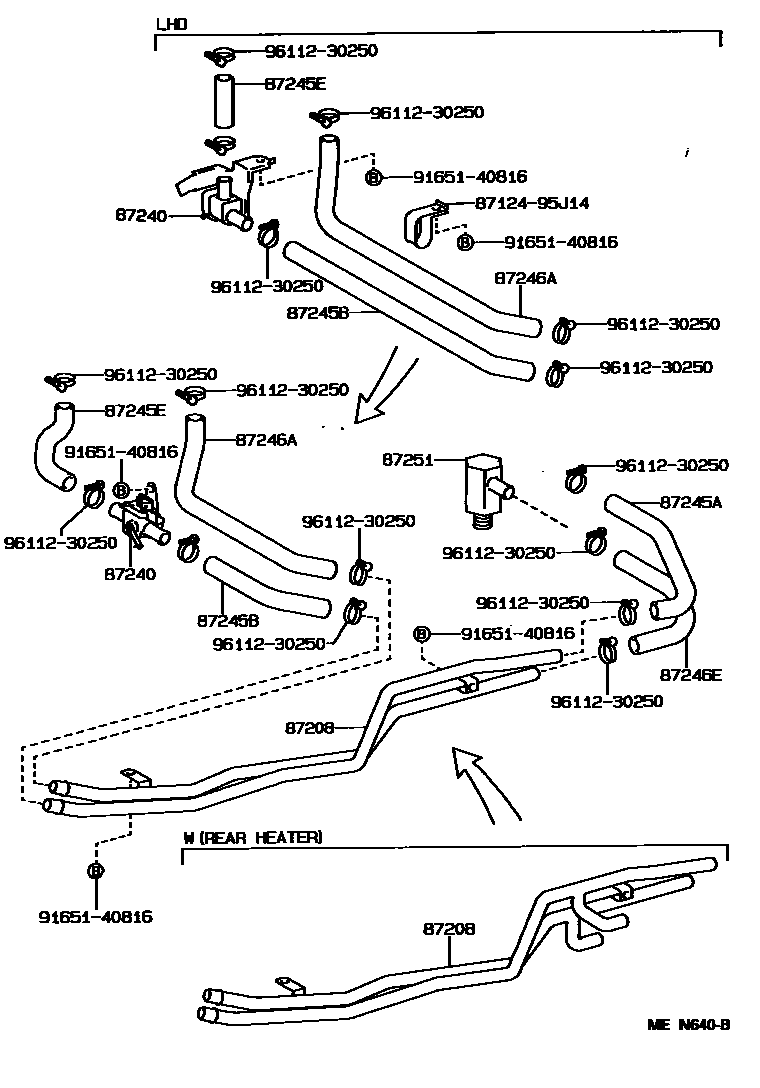

HEATING & AIR CONDITIONING - WATER PIPING

0001 1FRONT 0002 1FRONT 0003 1REAR 0004 1REAR 0005 1REAR

87208PIPE SUB-ASSY, HEATER WATER

main87208-95J49iLH102,11#..05S,09S198908-199508

W(REAR HEATER)

main87208-95J50iLH10#,11#198908-199508

87240VALVE ASSY, HEATER WATER

main87240-26050iLH10#,11#,RZH10#,11#..LHD199308-199508

main87240-26060iLH102,112,RZH113..RHD199308-199508

main87240-95J07iLH10#,11#,RZH10#,11#..LHD198908-199308

main87240-95J08iLH102,112,RZH112..RHD198908-199308

87245AHOSE, HEATER WATER, INLET A

main87245-95J46iLH10#,11#198908-199508

main87245-95J48iRZH10#,11#198908-199508

87245BHOSE, HEATER WATER, INLET B

main87245-26200iLH102,112,RZH113..RHD199308-199508

sub87245-26270

main87245-95J50iLH102,112..RHD198908-199308

main87245-95J60iLH10#,11#..LHD;RZH103,109,11#..LHD..STD198908-199508

main99556-30220iRZH10#,11#198908-199508

*H,L=220

sub99556-30300

87245EHOSE, HEATER WATER, INLET E

main87245-26290iLH102,112,RZH113..RHD199308-199508

main87245-95J49iLH102,112,RZH112..RHD198908-199308

sub87245-30810

main99556-30095iLH10#,11#,RZH10#,11#..LHD198908-199508

*H,L=95

sub99556-30100

87246AHOSE, HEATER WATER, OUTLET A

main87245-95J05iLH102,112,RZH112,113..RHD198908-199508

main87245-95J45iLH10#,11#,RZH10#,11#..LHD198908-199508

87246EHOSE, HEATER WATER, OUTLET E

main87245-95J47iLH10#,11#198908-199508

main99556-30300iRZH113..RHD;RZH10#,11#..DX,GL198908-199508

L=300

main99556-30300iRZH113..RHD;RZH10#,11#..DX,GL199308-199508

L=300,W(REAR HEATER)

87251JOINT OR UNION, WATER HOSE THROUGH

main87251-89113iLH102,112..FRG199308-199508

8712495J14CLAMP, HEATER

main87124-95J14

9165140816

main91651-40816

9611230250

main96112-30250

11 parts on this diagram · 5 diagrams in section
