HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

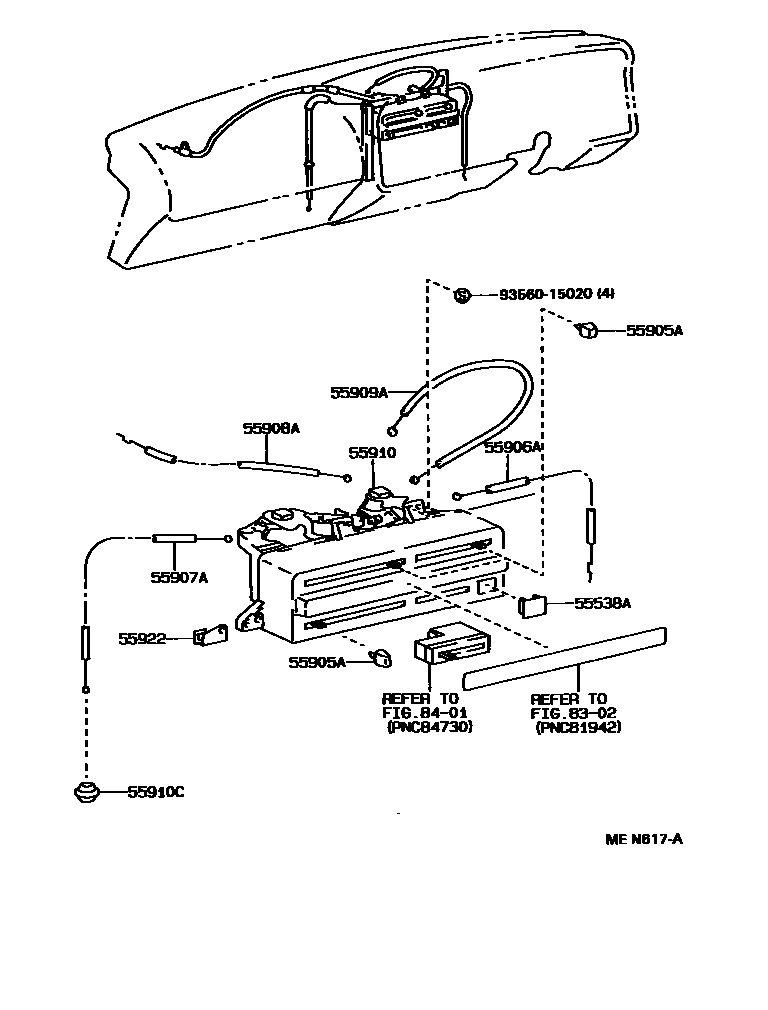

0001 1FRONT CONTROL 0002 1REAR CONTROL 0003 1FRONT DUCT 0004 1FRONT DUCT 0005 1REAR HEATER DUCT

55538ACOVER, COOLER SWITCH HOLE

main55538-22060iLH10#,11#,RZH10#,11#198908-199508

55905AKNOB, HEATER CONTROL

main55905-22260iLH102,112,RZH112,113..RHD198908-199508

TEMP

main55905-22280iLH102,112,RZH112,113..RHD198908-199508

MODE

main55905-95J04iLH10#,11#,RZH10#,11#..LHD198908-199508

TEMP

main55905-95J05iLH10#,11#,RZH10#,11#..LHD198908-199508

MODE

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-26010iLH102,112,RZH112,113..RHD198911-199508

main55906-95J03iLH10#,11#,RZH10#,11#198908-199508

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-26090iLH102,112,RZH113..RHD199502-199508

main55907-95J08iLH10#,11#,RZH10#,11#..LHD198908-199508

main55907-95J09iLH102,112,RZH112,113..RHD198908-199502

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-95J01iLH102,112,RZH112,113..RHD198908-199508

main55908-95J02iLH10#,11#,RZH10#,11#..LHD198908-199508

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-95J01iLH102,112,RZH112,113..RHD198908-199508

main55909-95J02iLH10#,11#,RZH10#,11#..LHD198908-199508

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-26050iLH102,112,RZH113..RHD199502-199508

main55910-95J09iLH102,112,RZH112,113..RHD198908-199502

sub55910-26050

sub55907-26090

main55910-95J23iLH10#,11#,RZH10#,11#..LHD198908-199508

55910CGROMMET(FOR HEATER CONTROL CABLE)

main90480-13013iLH10#,11#,RZH10#,11#198908-199508

55922BRACKET, HEATER CONTROL BASE

main55922-95J00iLH10#,11#,RZH10#,11#..LHD198908-199508

main55922-95J01iLH102,112,RZH112,113..RHD198908-199508

8302

8401

9356015020

main93560-15020

12 parts on this diagram · 5 diagrams in section
