HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1HEATER UNIT(FRONT) 0002 1HEATER UNIT(FRONT) 0003 1HEATER BLOWER(FRONT) 0004 1REAR HERTER-TRIM TYPE 0005 1REAR HEATER-FLOOR TYPE

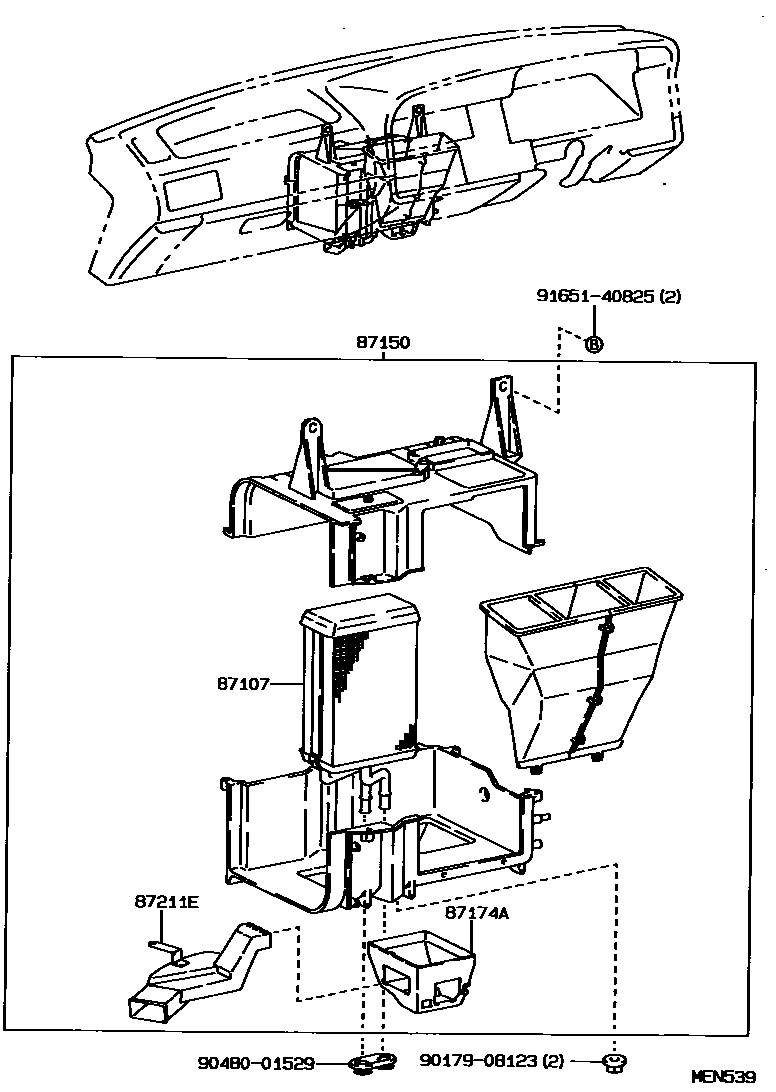

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-95J11iLH102,112,RZH112,113..RHD198908-199508

main87107-95J20iLH10#,11#,RZH10#,11#..LHD198908-199508

87150RADIATOR ASSY, HEATER

main87150-26010iLH102,112,RZH113..RHD199308-199508

main87150-26120iLH10#,11#,RZH10#,11#..LHD199308-199508

main87150-95J06iRZH112..LHD..5F;LH10#,11#,RZH10#,113,115,119..LHD198908-199308

main87150-95J09iLH102,112,RZH112..RHD198908-199308

sub87150-95J08

main87150-95J10iLH102,RZH103..DX199105-199308

SWEDEN SPEC OR NORWAY SPEC

main87150-95J10iLH102,RZH103..DX199108-199308

SWEDEN SPEC OR FINLAND SPEC OR NORWAY SPEC

main87150-95J10iRZH113..03S..4FC198908-199308

NORWAY SPEC

main87150-95J10iRZH113..DX198908-199308

SWEDEN SPEC

main87150-95J10iLH108;LH102,112,RZH103..LHD..4D..SP198908-199308

FINLAND SPEC

main87150-95J10iLH108;LH102,112,RZH102..LHD..4D..SP198908-199308

FINLAND SPEC OR NORWAY SPEC

main87150-95J10iRZH112..4FC199010-199108

87174AGUIDE, AIR HEATER

main87174-95J04iLH10#,11#,RZH10#,11#..LHD198908-199508

main87174-95J07iLH102,112,RZH112,113..RHD198908-199508

87211EDUCT, AIR

main87211-95J12iLH10#,11#,RZH10#,11#..LHD198908-199508

main87211-95J13iLH102,112,RZH112,113..RHD198908-199508

9017908123

main90179-08123

9048001529

main90480-01529

9165140825

main91651-40825

7 parts on this diagram · 5 diagrams in section
