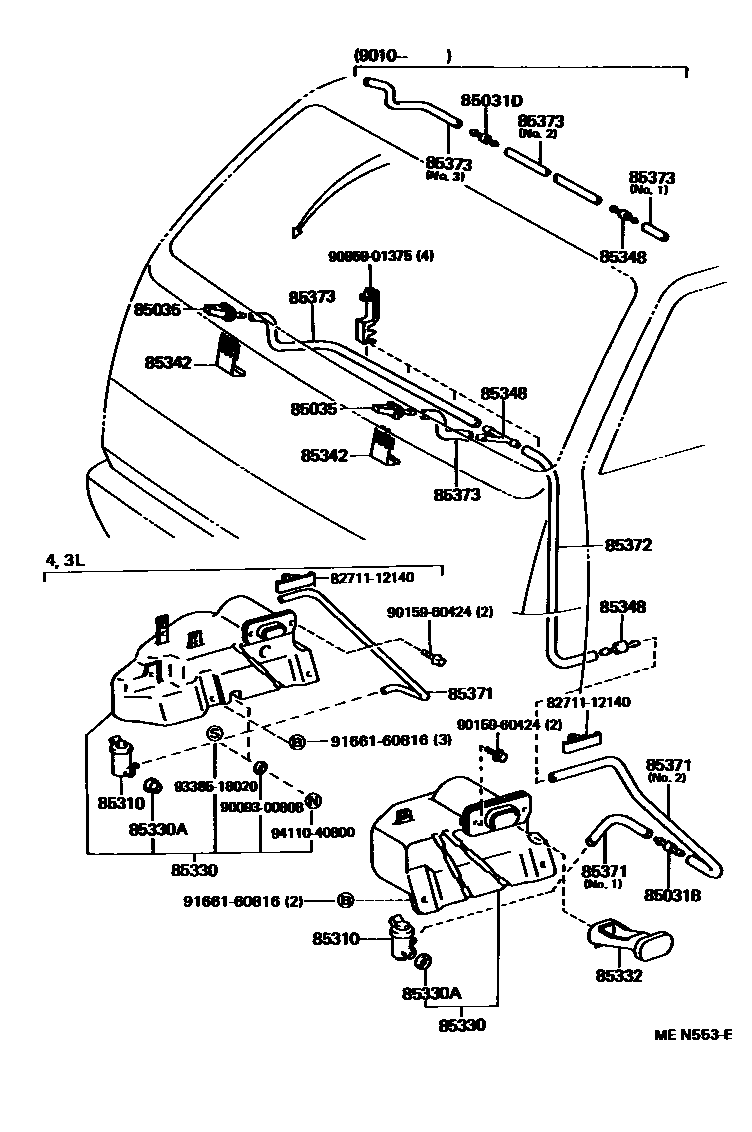

WINDSHIELD WASHER

0001 1 0002 1W(HEADLAMP CLEANER)

85031BVALVE SUB-ASSY, WASHER

main85031-30010iLH10#,11#,RZH10#,11#..(DX,STD)..(EUR,FRG)198908-199508

85031DVALVE SUB-ASSY, WASHER NO.2

main85031-12250iLH10#,11#,RZH10#,11#199010-199508

85035NOZZLE SUB-ASSY, WASHER

main85035-95J01iLH102,112,RZH112,113..RHD198908-199508

RH

main85035-95J05iLH102,112,RZH112,113..RHD198908-199508

LH

main85035-95J06iLH10#,11#,RZH10#,11#..LHD198908-199508

RH

main85035-95J07iLH10#,11#,RZH10#,11#..LHD198908-199508

LH

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-95J03iLH10#,11#,RZH10#,11#198908-199208

main85330-35050iLH10#,11#,RZH10#,11#199208-199508

85330JAR ASSY, WINDSHIELD WASHER

main85315-26020iLH102,112,RZH102,112..LHD199008-199308

*EX-USSR

main85330-95J06iLH10#,11#,RZH10#,11#..(DX,STD)..(EUR,FRG)198908-199508

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iLH10#,11#,RZH10#,11#198908-199508

85332CAP, WINDSHIELD WASHER JAR

main85332-95J00iLH10#,11#,RZH10#,11#198908-199508

85342HOLDER, WASHER NOZZLE

main85342-95J02iLH10#,11#,RZH10#,11#198908-199508

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-12250iLH10#,11#,RZH10#,11#198908-199308

3-WAY

main85349-89122iLH10#,11#,RZH10#,11#198908-199508

2-WAY

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33077iLH10#,11#,RZH103,119..LHD..SP199010-199308

L=450

sub90099-33080

main90099-33077iRZH119..DX;RZH113..5D;RZH113..4D..SG198908-199010

L=450,SWEDEN SPEC

sub90099-33080

main90099-33077iRZH112..5D..5F;LH10#,11#,RZH102,119..LHD..SP198908-199108

L=450,FINLAND SPEC

sub90099-33080

main90099-33080iLH102..09S;LH112..FRG199008-199508

L=1450

main90099-33299iLH10#,11#,RZH10#,11#..(DX,STD)..(EUR,FRG)198908-199508

L=1000,NO.2

main90446-06013iLH10#,11#,RZH10#,11#..(DX,STD)..(EUR,FRG)198908-199508

L=1000,NO.1

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90446-06006iLH10#,11#,RZH10#,11#..LHD198908-199508

L=2000

main90446-06013iLH102,112,RZH112,113..RHD198908-199508

L=1000

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85343-95J00iLH10#,11#,RZH10#,11#..LHD198908-199508

L=180,LH

main85343-95J01iLH10#,11#,RZH10#,11#..LHD198908-199010

L=720,RH

sub90446-06013

main85343-95J02iLH102,112,RZH112..RHD198908-199010

L=720,RH

sub90446-06013

main85374-26050iLH10#,11#,RZH10#,11#199308-199508

L=200,RH NO.3

main85374-26050iLH10#,11#,RZH10#,11#199010-199308

L=200,RH,NO.3

main85374-26060iLH102,112,RZH112..RHD199010-199308

L=460,RH,NO.2

main85374-26060iLH102,112,RZH113..RHD199308-199508

L=460,RH NO.2

main85374-26070iLH10#,11#,RZH10#,11#..LHD199308-199508

L=460,RH NO.2

main85374-26070iLH10#,11#,RZH10#,11#..LHD199010-199308

L=460,RH,NO.2

main90099-33299iLH10#,11#,RZH10#,11#199308-199508

L=1000,RH NO.1

main90099-33299iLH10#,11#,RZH10#,11#199010-199308

L=1000,RH,NO.1

main90099-33299iLH102,112,RZH112,113..RHD199010-199508

L=1000,LH

main90099-33322iLH102,112,RZH112..RHD198908-199010

L=180,LH

sub90446-06013

8271112140WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12140

9009300808

main90093-00808

9015960424

main90159-60424

9095901375

main90959-01375

9166160816

main91661-60816

9338518020

main93385-18020

9411040800

main94110-40800

19 parts on this diagram · 2 diagrams in section
