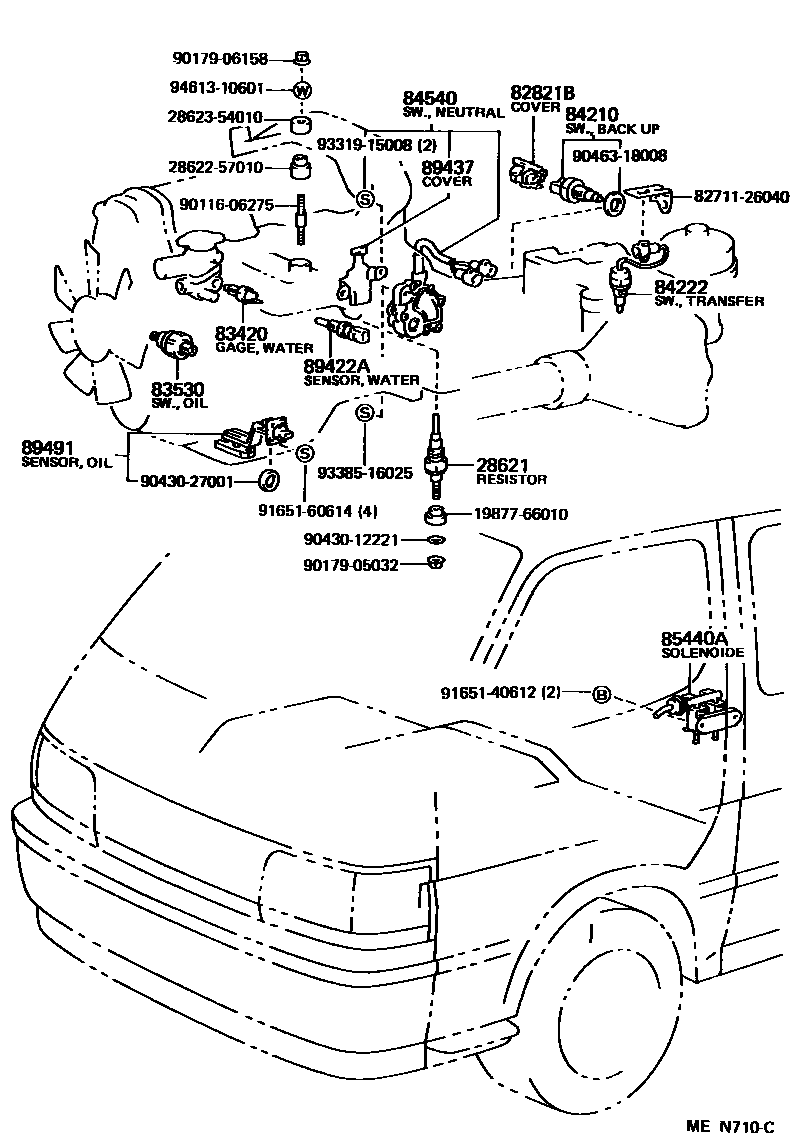

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1

28621RESISTOR, GLOW PLUG

main28621-54080i2L..LH10#,11#198908-199508

82821BCOVER, CONNECTOR

main82821-12250iLH10#,11#,RZH10#,11#..5F198908-199203

main82821-12251iLH10#,11#,RZH10#,11#..5F199203-199412

main82821-30380iLH112,RZH113..4FC199308-199508

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iLH10#,11#199405-199508

YAZAKI

main83420-16040iRZH10#,11#199205-199508

NIPPONDENSO

main83420-20020iLH10#,11#198908-199308

main83420-20030iRZH10#,11#199308-199411

YAZAKI

sub83420-16040

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14040iRZH10#,11#198908-199205

sub83530-30080

main83530-14060iRZH10#,11#199205-199411

sub83530-30090

main83530-30060iLH10#,11#198908-199508

sub83530-60030

main83530-30090iRZH10#,11#199411-199508

sub83530-60020

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iLH10#,11#,RZH10#,11#..5F198908-199508

sub84210-52050

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-26010iLH108,118,RZH109,119198908-199508

84540SWITCH ASSY, NEUTRAL START

main84540-22180iRZH112,113..4FC198908-199202

sub84540-22181

main84540-22181iRZH113..4FC199202-199308

main84540-26020iLH112..4FC198908-199308

main84540-30290iLH112,RZH113..4FC199308-199508

TOKAIRIKA

main84540-30300iLH112,RZH113..4FC199308-199508

MATSUSHITA

85440ASOLENOID ASSY, FOUR WHEEL DRIVE CONTROL

main85440-26010iLH108,118,RZH109,119198908-199508

89422ASENSOR, WATER TEMPERATURE

main89422-20010iLH10#,11#198908-199508

89437COVER, SENSOR

main89437-26010iLH112..4FC198908-199308

89491SENSOR, ENGINE OIL LEVEL

main89491-26010iLH102,112198908-199108

main89491-26040iRZH10#,11#198908-199101

sub89491-26041

main89491-26041iRZH10#,11#199101-199205

main89491-26050iLH108,118198908-199108

main89491-26061iRZH10#,11#199205-199508

sub89491-26062

main89491-26080iLH108,118199108-199205

sub89491-26081

main89491-26081iLH108,118199205-199508

main89491-26110iLH102,112199108-199508

sub89491-26111

1987766010

main19877-66010

2862257010INSULATOR, GLOW PLUG RESISTOR, NO.1

main28622-57010

2862354010INSULATOR, GLOW PLUG RESISTOR, NO.2

main28623-54010

8271126040WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-26040

9011606275

main90116-06275

9017905032

main90179-05032

9017906158

main90179-06158

9043012221

main90430-12221

9043027001

main90430-27001

9046318008

main90463-18008

9165140612

main91651-40612

9165160614

main91651-60614

9331915008

main93319-15008

9338516025

main93385-16025

9461310601

main94613-10601

26 parts on this diagram · 14 diagrams in section
