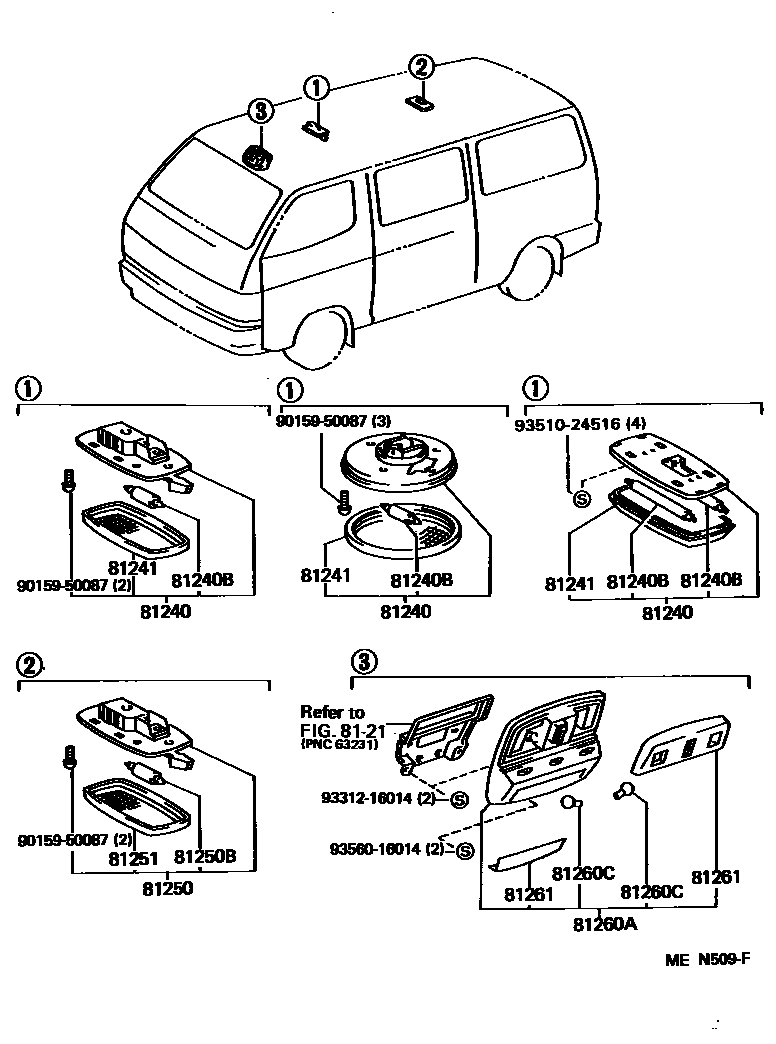

INTERIOR LAMP

0001 1 0002 1

8121

81240LAMP ASSY, ROOM, NO.1

main81240-26040-A0iLH102,RZH103..DX199205-199308

HIGH GRADE PACKAGE,IVORY,TRIM1#

main81240-26040-B0iLH102,RZH103..GL199308-199508

LIGHT GRAY,TRIM1#

main81240-95J03-03iRZH103..DX199105-199108

HIGH GRADE PACKAGE,LIGHT GRAY,TRIM1#

main81240-95J11-08iLH10#,11#,RZH10#,112,113,119..STD198908-199308

IVORY,TRIM1#

sub81240-26130

main81240-95J11-B0iRZH103..03S;LH10#,11#,RZH109,11#..STD199308-199508

LI. GRAY,TRIM1#

sub81240-26130

main81240-95J12-08iLH102,11#,RZH102,103,112,113,119..DX198908-199308

IVORY,TRIM1#

sub81240-26140

main81240-95J12-B0iLH102,11#,RZH10#,11#..DX199308-199508

LI.GRAY,LI. GRAY,TRIM1#

sub81240-26140

main81240-95J13-08iRZH115198908-199205

IVORY,TRIM1#

81240BBULB, ROOM LAMP, NO.1

main90981-11004iLH10#,11#,RZH10#,11#..DX,STD198908-199508

12V 10W

main90981-11033×2iLH102,RZH103..GL199308-199508

100V 6W(MARK FL-6W)

81241LENS, ROOM LAMP, NO.1

main81241-95J04-13iLH102,RZH103..DX199108-199308

HIGH GRADE PACKAGE,LIGHT GRAY,TRIM1#

sub81240-95J04

main81241-95J04-B0iLH102,RZH103..GL199308-199508

LI. GRAY,TRIM1#

sub81240-95J04

main81241-95J11iLH10#,11#,RZH10#,112,113,119..STD198908-199308

main81241-95J12iLH102,11#,RZH102,103,11#..09S,15S198908-199308

81250LAMP ASSY, ROOM, NO.2

main81240-95J11-08iRZH102..DX198908-199105

IVORY,TRIM1#

sub81240-26130

main81240-95J11-B0iLH102,RZH103..GL199308-199508

LI. GRAY,TRIM1#

sub81240-26130

81250BBULB, ROOM LAMP, NO.2

main90981-11004iRZH102..DX198908-199105

12V 10W

81251LENS, ROOM LAMP, NO.2

main81241-95J11iLH102,RZH103..DX199108-199308

81260LAMP ASSY, GLOVE BOX

main81260-32071iLH102,RZH103..GL199308-199408

81260ALAMP ASSY, MAP

main81240-95J08-03iLH102,RZH103..DX199108-199308

LIGHT GRAY,TRIM1#

main81240-95J08-08iLH102,RZH102,103..DX199108-199308

IVORY

main81240-95J08-B8iLH102,RZH103..GL199308-199508

LI. GRAY,TRIM1#

81260CBULB(FOR MAP LAMP)

main90981-12020×2iRZH102..DX198908-199105

12V 8W

81261LENS AND COVER, MAP LAMP

main81241-95J08iRZH103..DX199105-199108

LENS

main81245-95J07-03iLH102,RZH103..DX199108-199308

LIGHT GRAY,TRIM1#,COVER

9015950087

main90159-50087

9331216014

main93312-16014

9351024516

main93510-24516

9356016014

main93560-16014

15 parts on this diagram · 2 diagrams in section
