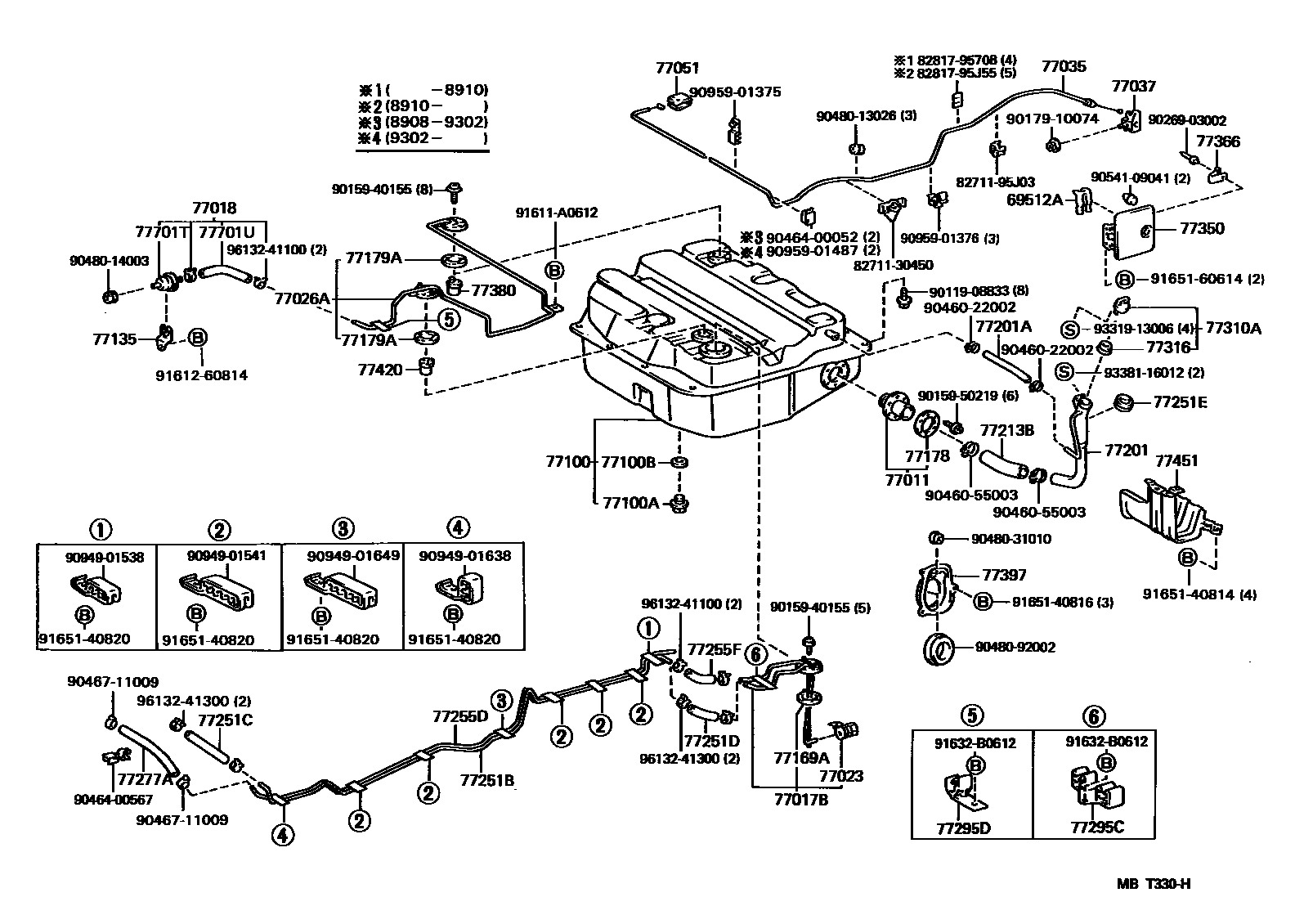

FUEL TANK & TUBE

0001 1 0002 1 0003 1

69512ARETAINER, REAR DOOR LOCK CYLINDER

main69512-87001iLH10#,11#,RZH10#,11#..DX,STD¥140198908-199508

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-26010iLH10#,11#,RZH10#,11#¥2,730198908-199508

77017BTUBE SUB-ASSY, FUEL TANK VENT

main77017-26130iLH10#,11#,RZH102,112¥3,880198908-199504

sub77017-26131¥3,890

main77017-26131iLH10#,11#,RZH102¥3,890199504-199508

77018VALVE SUB-ASSY, FUEL VAPOUR SEPARATE

main77018-26160iLH10#,11#,RZH102,112¥2,100198908-199508

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-32010iLH10#,11#,RZH102,112¥900198908-199508

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-26040iLH10#,11#,RZH10#,11#¥4,980198908-199504

sub77026-26041¥5,100

main77026-26041iLH10#,11#,RZH10#,11#¥5,100199504-199508

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-95J03iLH102,RZH10#..LHD..4D¥2,960199105-199508

main77035-95J03iRZH102..4D..STD;LH102,RZH103,109..LHD..4D¥2,960198908-199105

W(*FLO)

main77035-95J04iLH11#,RZH11#..LHD..4D¥3,110198908-199508

main77035-95J05iLH10#,RZH10#..5D¥3,110198908-199508

main77035-95J06iLH11#,RZH112,113,119..5D¥3,320198908-199508

main77035-95J07iLH102..RHD¥3,750198908-199508

main77035-95J08iLH112,RZH112,113..RHD¥3,750198908-199508

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-32010iRZH102..DX¥1,350198908-199508

77051LEVER SUB-ASSY, FUEL LID OPEN

main77051-95J01-03iRZH102..DX198908-199308

GRAY,TRIM1#

sub77051-95J01¥2,360

main77051-95J01-C0iLH10#,11#,RZH103,109,11#199308-199508

BLACK,TRIM1#

sub77051-95J01¥2,360

77100TANK ASSY, FUEL

main77001-26480iRZH102,112¥50,600198908-199108

sub77001-26500¥50,500

main77001-26490iRZH103,109,113,115,119¥50,600198908-199508

sub77001-26730¥50,600

main77001-26500iLH10#,11#¥50,500198908-199508

sub77001-26720¥50,600

77100APLUG(FOR FUEL TANK)

main90105-12116iLH10#,11#,RZH10#,11#¥110198908-199508

77100BGASKET(FOR FUEL TANK)

main90430-12245iLH10#,11#,RZH10#,11#¥160198908-199508

77135BRACKET, CHECK VALVE

main77135-26010iLH10#,11#,RZH102,112¥310198908-199508

77169AGASKET, FUEL SUCTION TUBE SET

main77169-14020iLH10#,11#,RZH102,112¥330198908-199508

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-20010iLH10#,11#,RZH10#,11#¥430198908-199508

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-26010iLH10#,11#,RZH10#,11#¥230198908-199508

sub77179-26011¥190

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-26140iLH10#,11#,RZH102,112¥8,000198908-199205

main77201-26141iLH10#,11#,RZH102,112¥9,400199205-199209

sub77201-26170¥9,400

main77201-26150iRZH103,109,113,115,119¥8,200198908-199205

main77201-26150iRZH102¥8,200198908-199108

*FRG

main77201-26151iRZH103,109,113,119¥10,800199205-199508

main77201-26170iLH10#,11#,RZH102,112¥9,400199209-199508

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main95311-13032iLH10#,11#,RZH10#,11#¥520198908-199508

L=320

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-26080iLH10#,11#,RZH10#,11#¥3,500198908-199508

77251BTUBE, FUEL MAIN

main77251-26510iLH10#¥3,780198908-199508

main77251-26520iRZH102¥3,070198908-199508

main77251-26530iRZH103,109¥3,980198908-199508

main77251-26560iLH11#¥4,090198908-199508

main77251-26570iRZH112¥3,430198908-199308

main77251-26580iRZH113,115,119¥4,410198908-199508

77251CHOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)

main90447-12111iRZH10#,11#¥1,470198908-199508

L=380,ID=6.0

main95333-08030iLH10#,11#¥660198908-199508

L=300

77251DHOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)

main95333-08020iRZH102¥320198908-199508

L=200,ID=8

sub95337-08020¥310

77251ESHIELD, FUEL TANK INLET PIPE

main77251-10010iLH10#,11#,RZH10#,11#¥1,010198908-199205

main90480-75002iLH10#,11#,RZH10#,11#¥410199205-199508

77255DTUBE, FUEL RETURN

main77255-26260iRZH10#¥3,070198908-199508

main77255-26290iRZH11#¥3,420198908-199508

main77255-26320iLH10#¥3,100198908-199508

main77255-26340iLH11#¥3,400198908-199508

77255FHOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)

main95333-06020iRZH10#,11#¥480198908-199508

L=200

sub95337-06020¥570

77277AHOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)

main90447-12118iLH10#,11#¥1,340198908-199508

L=300

main90447-17004iRZH102,112¥1,350198908-199508

L=350

77295CGROMMET, FUEL TUBE

main77295-26010iLH10#,11#,RZH10#,11#¥540199504-199508

77295DGROMMET, FUEL TUBE

main77295-26020iLH10#,11#,RZH10#,11#¥240199504-199508

77310ACAP ASSY, FUEL TANK

main77310-12100iRZH10#,11#¥2,320198908-199205

main77310-16011iRZH10#,11#¥2,790199205-199508

sub77310-12140¥2,790

main77310-32011iLH10#,11#¥1,940199205-199508

main77310-35061iLH10#,11#¥2,320198908-199205

77316GASKET, FUEL TANK CAP

main77316-12050iLH10#,11#,RZH10#,11#¥310198908-199205

main77316-16010iLH10#,11#,RZH10#,11#¥660199205-199508

77350LID ASSY, FUEL FILLER OPENING

main77350-26010iLH10#,11#,RZH103,109,11#..DX,STD¥4,560199205-199508

W(*FLO)

main77350-95J00iLH10#,11#,RZH10#,11#..DX,STD¥3,590198908-199508

main77350-95J01iRZH102..STD;LH10#,11#,RZH103,109,11#¥4,510198908-199205

W(*FLO)

main77350-95J01iRZH102..STD;LH10#,11#,RZH103,109,11#¥4,510198908-199010

NORWAY SPEC OR W(*FLO)

77366SPRING, FUEL FILLER OPENING LID HINGE

main77366-95J01iRZH102..DX¥200198908-199508

77380VALVE ASSY, FUEL CUT OFF

main77380-26010iLH10#,11#,RZH10#,11#¥780198908-199508

77397PLATE, FUEL INLET PIPE SEAL

main77397-95J01iLH10#,11#,RZH10#,11#¥1,290198908-199508

77420VALVE ASSY, FUEL CUT OFF, NO.2

main77420-26010iLH10#,11#,RZH10#,11#¥780198908-199508

77451PROTECTOR, FUEL INLET HOSE

main77451-26010iLH10#,11#,RZH10#,11#¥4,710198908-199508

77701TVALVE, CHECK (FOR MAIN FUEL TANK)

main90917-10069iLH10#,11#,RZH102,112¥1,340198908-199101

sub90917-10082¥1,350

main90917-10082iLH10#,11#,RZH102,112¥1,350199101-199508

77701UHOSE, FUEL (FOR CHECK VALVE)

main95333-06030iLH10#,11#,RZH102,112¥580198908-199508

L=300

sub95338-06030¥580

8271130450WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-30450¥300

8271195J03WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-95J03¥520

8281795708PROTECTOR, WIRING HARNESS, NO.1

main82817-95708¥250

8281795J55PROTECTOR, WIRING HARNESS, NO.1

main82817-95J55¥130

9011908833

main90119-08833¥160

9015940155

main90159-40155¥120

9015950219

main90159-50219¥70

9017910074

main90179-10074¥110

9026903002

main90269-03002¥200

9046022002

main90460-22002¥530

9046055003

main90460-55003¥270

9046400052

main90464-00052¥200

9046400567

main90464-00567¥180

9046711009

main90467-11009¥260

9048013026

main90480-13026¥130

9048014003

main90480-14003¥190

9048031010

main90480-31010¥410

9048092002

main90480-92002¥750

9054109041

main90541-09041¥120

9094901538

main90949-01538¥360

9094901541

main90949-01541¥360

9094901638

main90949-01638¥320

9094901649

main90949-01649¥460

9095901375

main90959-01375¥140

9095901376

main90959-01376¥80

9095901487

main90959-01487¥230

91611A0612

main91611-A0612¥120

9161260814

main91612-60814¥140

91632B0612

main91632-B0612¥90

9165140814

main91651-40814¥180

9165140816

main91651-40816¥80

9165140820

main91651-40820¥90

9165160614

main91651-60614¥70

9331913006

main93319-13006¥60

9338116012

main93381-16012¥140

9613241100

main96132-41100¥160

9613241300

main96132-41300¥200

75 parts on this diagram · 3 diagrams in section
