SEAT BELT
73013APLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, RH
NORWAY SPEC & W(FRONT SEAT SLIDE DR=225,PA=180),GRAY,TRIM1#
sub73013-95J01
W(FRONT SEAT SLIDE DR=225,PA=180),GRAY,TRIM1#
sub73013-95J03
73146COVER, FRONT SEAT BELT INNER ANCHOR BRACKET, RH
AUSTRIA SPEC,GRAY,TRIM1#
sub73146-95J00
73160ASEAT BELT ASSY, FRONT CENTER, RH
BLUISH GRAY,TRIM1#
AUSTRIA SPEC & W(ADJUSTABLE SEAT BELT),BLUISH GRAY,TRIM1#
main73160-26030-B0iRZH103..4D..03S;LH10#,118..LHD..SP..EUR;LH112,RZH113..5D..03S..5F..EUR199308-199508
BLUISH GRAY,TRIM1#
NETHER LANDS SPEC OR BELGIUM SPEC,BLUISH GRAY,TRIM1#
main73160-26040-B0iLH112..DX;LH102,RZH103..LHD..4D..SP..EUR;LH112,RZH11#..5D..03S..5F..EUR199308-199508
BELGIUM SPEC,BLUISH GRAY,TRIM1#
NETHER LANDS SPEC,BLUISH GRAY,TRIM1#
GRAY,TRIM1#
AUSTRIA SPEC & W(ADJUSTABLE SEAT BELT),GRAY,TRIM1#
NORWAY SPEC,GRAY,TRIM1#
BELGIUM SPEC,GRAY,TRIM1#
NETHER LANDS SPEC OR BELGIUM SPEC,GRAY,TRIM1#
NETHER LANDS SPEC OR BELGIUM SPEC OR NORWAY SPEC,GRAY,TRIM1#
BELGIUM SPEC OR NORWAY SPEC,GRAY,TRIM1#
NETHER LANDS SPEC,GRAY,TRIM1#
GRAY,TRIM1#
73170BELT ASSY, FRONT CENTER, LH
GRAY,TRIM1#
BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
GRAY,TRIM1#
GRAY,TRIM1#
73178ACAP, SEAT BELT ANCHOR COVER
W(*ELR)
NORWAY SPEC OR W(*ELR)
SWITZERLAND SPEC
AUSTRIA SPEC & W(ADJUSTABLE SEAT BELT) OR W(*ELR)
main73178-95J00iRZH103..5D;LH112,RZH113..4FC;RZH102,112,119..LHD;LH102,112,RZH109,113..SG..5F..STD199108-199205
WEST GERMANY SPEC
main73178-95J00iRZH103..5D;LH112,RZH113..4FC;RZH102,112,119..LHD;LH102,112,RZH109,113..SG..5F..STD199108-199205
DENMARK SPEC OR SWITZERLAND SPEC OR FINLAND SPEC OR WEST GERMANY SPEC
W(*ELR) OR W(FRONT SEAT SLIDE DR=225,PA=180 & AJUSTABLE SEAT BELT)
W(*ELR) OR W(FRONT SEAT SLIDE DR=225,PA=180)
W(FRONT SEAT SLIDE DR=225)
BELGIUM SPEC
NETHER LANDS SPEC OR BELGIUM SPEC
main73178-95J00iRZH113..SDN;LH102,112,RZH113..RHD;LH102,11#,RZH10#,11#..(DX,GL)..(EUR,FRG)199308-199508
W(FRONT SEAT SLIDE DR=225,PA=180)
main73178-95J00iRZH113..SDN;LH102,112,RZH113..RHD;LH102,11#,RZH10#,11#..(DX,GL)..(EUR,FRG)199308-199508
AUSTRIA SPEC & W(ADJUSTABLE SEAT BELT) OR W(FRONT SEAT SLIDE DR=225,PA=180)
73180BRACKET ASSY, SEAT BELT INNER ANCHOR, RH
AUSTRIA SPEC
NORWAY SPEC
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-95J00-13iLH102,112..RHD;LH112,RZH113..4FC;RZH102,103,112,115,119;LH102,112,RZH109,113..SG..5F..STD198908-199308
W(ADJUSTABLE SEAT BELT),GRAY,TRIM1#
sub73200-95J00
GRAY,TRIM1#
sub73200-95J00
main73200-95J00-B1iRZH113..DX..EUR;RZH103..4D..(03S,09S)..EUR;LH108,11#..LHD..(03S,09S)..5F..EUR;LH102,RZH109,113..LHD..SP..5F..EUR199308-199508
BLUISH GRAY,TRIM1#
sub73200-95J00
main73200-95J00-B1iRZH119;RZH103..5D;RZH103..DX..FRG;LH112,RZH113..4FC;LH102,112,RZH113..RHD;LH112,RZH103,113..SG..5F..STD;LH102,112,RZH113..5F..(FRG,SDN);LH102,RZH109..SG..(DX,STD)..199308-199508
W(ADJUSTABLE SEAT BELT),BLUISH GRAY,TRIM1#
sub73200-95J00
main73200-95J00-B2iRZH119;RZH103..5D;RZH103..DX..FRG;LH112,RZH113..4FC;LH102,112,RZH113..RHD;LH112,RZH103,113..SG..5F..STD;LH102,112,RZH113..5F..(FRG,SDN);LH102,RZH109..SG..(DX,STD)..199308-199508
LT.GRAY,TRIM1#
sub73200-95J00
main73200-95J00-B2iRZH119;RZH103..5D;RZH103..DX..FRG;LH112,RZH113..4FC;LH102,112,RZH113..RHD;LH112,RZH103,113..SG..5F..STD;LH102,112,RZH113..5F..(FRG,SDN);LH102,RZH109..SG..(DX,STD)..199308-199508
W(ADJUSTABLE SEAT BELT),LT.GRAY,TRIM1#
sub73200-95J00
73210BELT ASSY, FRONT SEAT OUTER, RH
W(ADJUSTABLE SEAT BELT),BLUISH GRAY,TRIM1#
sub73210-26081
W(ADJUSTABLE SEAT BELT),BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
NORWAY SPEC & W(*ELR & ADJUSTABLE SEAT BELT),GRAY,TRIM1#
sub73210-26090
NORWAY SPEC & W(*ELR & ADJUSTABLE SEAT BELT & FRONT SEAT SLIDE DR=225,PA=180),GRAY,TRIM1#
sub73210-26090
W(ADJUSTABLE SEAT BELT),GRAY,TRIM1#
sub73210-26080
NORWAY SPEC & W(*ELR),GRAY,TRIM1#
sub73210-26070
NORWAY SPEC & W(*ELR) OR BELGIUM SPEC & W(*ELR) OR NEATHER LANDS SPEC & W(*ELR),GRAY,TRIM1#
sub73210-26070
NORWAY SPEC & W(*ELR) OR BELGIUM SPEC & W(*ELR),GRAY,TRIM1#
sub73210-26070
NETHER LANDS SPEC & W(*ELR) OR BELGIUM SPEC & W(*ELR),GRAY,TRIM1#
sub73210-26070
SWITZERLAND SPEC & W/O(ADJUSTABLE SEAT BELT),GRAY,TRIM1#
sub73210-26070
NETHER LANDS SPEC & W(*ELR),GRAY,TRIM1#
sub73210-26070
WEST GERMANY SPEC & W/O(ADJUSTABLE SEAT BELT),GRAY,TRIM1#
sub73210-26070
FINLAND SPEC & W/O(ADJUSTABLE SEAT BELT) OR WEST GERMANY SPEC & W/O(ADJUSTABLE SEAT BELT);SWITZERLAND SPEC & W/O(ADJUSTABLE SEAT BELT) OR DENMARK SPEC & W/O(ADJUSTA
sub73210-26070
W(FRONT SEAT SLIDE DR=225) & W/O(ADJUSTABLE SEAT BELT),GRAY,TRIM1#
sub73210-26070
W(FRONT SEAT SLIDE DR=225,PA=180 & *ELR),GRAY,TRIM1#
sub73210-26070
73220BELT ASSY, FRONT SEAT OUTER, LH
W(ADJUSTABLE SEAT BELT),BLUISH GRAY,TRIM1#
sub73210-26081
W(ADJUSTABLE SEAT BELT),BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
NORWAY SPEC & W(*ELR & ADJUSTABLE SEAT BELT),GRAY,TRIM1#
sub73210-26090
NORWAY SPEC & W(*ELR & ADJUSTABLE SEAT BELT & FRONT SEAT SLIDE DR=225,PA=180),GRAY,TRIM1#
sub73210-26090
NORWAY SPEC & W(*ELR),GRAY,TRIM1#
sub73210-26070
NORWAY SPEC & W(*ELR) OR BELGIUM SPEC & W(*ELR),GRAY,TRIM1#
sub73210-26070
NETHER LANDS SPEC & W(*ELR) OR BELGIUM SPEC & W(*ELR),GRAY,TRIM1#
sub73210-26070
NORWAY SPEC & W(*ELR) OR BELGIUM SPEC & W(*ELR) OR NETHER LANDS SPEC & W(*ELR),GRAY,TRIM1#
sub73210-26070
SWITZERLAND SPEC & W/O(ADJUSTABLE SEAT BELT),GRAY,TRIM1#
sub73210-26070
NETHER LANDS SPEC & W(*ELR),GRAY,TRIM1#
sub73210-26070
WEST GERMANY SPEC & W/O(ADJUSTABLE SEAT BELT),GRAY,TRIM1#
sub73210-26070
FINLAND SPEC & W/O(ADJUSTABLE SEAT BELT) OR WEST GERMANY SPEC & W/O(ADJUSTABLE SEAT BELT);SWITZERLAND SPEC & W/O(ADJUSTABLE SEAT BELT) OR DENMARK SPEC & W/O(ADJUSTA
sub73210-26070
W(FRONT SEAT SLIDE DR=225) & W/O(ADJUSTABLE SEAT BELT),GRAY,TRIM1#
sub73210-26070
W(FRONT SEAT SLIDE DR=225,PA=180 & *ELR),GRAY,TRIM1#
sub73210-26070
73223BCOVER, FRONT SEAT BELT RETRACTOR, RH
73224COVER, FRONT SEAT BELT RETRACTOR, LH
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-26040-B0iRZH113..SDN;LH102,112,RZH113..RHD;LH102,11#,RZH10#,11#..(DX,GL)..(EUR,FRG)199308-199508
BLUISH GRAY,TRIM1#
main73230-26040-B0iRZH113..SDN;LH102,112,RZH113..RHD;LH102,11#,RZH10#,11#..(DX,GL)..(EUR,FRG)199308-199508
AUSTRIA SPEC & W(ADJUSTABLE SEAT BELT),BLUISH GRAY,TRIM1#
main73230-26040-B0iRZH113..SDN;LH102,112,RZH113..RHD;LH102,11#,RZH10#,11#..(DX,GL)..(EUR,FRG)199308-199508
W(FRONT SEAT SLIDE DR=225,PA=180),BLUISH GRAY,TRIM1#
main73230-26040-B0iRZH113..SDN;LH102,112,RZH113..RHD;LH102,11#,RZH10#,11#..(DX,GL)..(EUR,FRG)199308-199508
AUSTRIA SPEC & W(ADJUSTABLE SEAT BELT) OR W(FRONT SEAT SLIDE DR=225,PA=180),BLUISHGRAY,TRIM1#
BLUISH GRAY,TRIM1#
main73230-26060-B0iLH112..DX;LH102,RZH103..LHD..4D..SP..EUR;LH112,RZH11#..5D..03S..5F..EUR199308-199508
NETHER LANDS SPEC OR BELGIUM SPEC,BLUISH GRAY,TRIM1#
BELGIUM SPEC,BLUISH GRAY,TRIM1#
NETHER LANDS SPEC,BLUISH GRAY,TRIM1#
W(FRONT SEAT SLIDE DR=225,PA=180 & *ELR);W(FRONT SEAT SLIDE DR=225,PA=180 & ADJUSTABLE SEAT BELT),GRAY,TRIM1#
sub73230-95J16
W(FRONT SEAT SLIDE DR=225,PA=180),GRAY,TRIM1#
sub73230-95J16
NORWAY SPEC & W(*ELR & ADJUSTABLE SEAT BELT & FRONT SEAT SLIDE DR=225,PA=180),GRAY,TRIM1#
sub73230-95J16
NORWAY SPEC & W(*ELR & ADJUSTABLE SEAT BELT),GRAY,TRIM1#
sub73230-95J16
AUSTRIA SPEC & W(ADJUSTABLE SEAT BELT),GRAY,TRIM1#
sub73230-95J16
DENMARK SPEC OR SWITZERLAND SPEC OR FINLAND SPEC OR WEST GERMANY SPEC,GRAY,TRIM1#
WEST GERMANY SPEC,GRAY,TRIM1#
GRAY,TRIM1#
main73230-95J17-03iLH108,11#..LHD;LH102,RZH102,109..LHD..SP;RZH112,113,119..LHD..(03S,09S)..5F199010-199108
W(*ELR & ADJUSTABLE SEAT BELT),GRAY,TRIM1#
SWITZERLAND SPEC,GRAY,TRIM1#
W(FRONT SEAT SLIDE DR=225),GRAY,TRIM1#
BELGIUM SPEC OR NORWAY SPEC,GRAY,TRIM1#
NORWAY SPEC,GRAY,TRIM1#
BELGIUM SPEC,GRAY,TRIM1#
NETHER LANDS SPEC OR BELGIUM SPEC,GRAY,TRIM1#
NETHER LANDS SPEC OR BELGIUM SPEC OR NORWAY SPEC,GRAY,TRIM1#
GRAY,TRIM1#
NETHER LANDS SPEC,GRAY,TRIM1#
73240BELT ASSY, FRONT SEAT INNER, LH
BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
GRAY,TRIM1#
UNITED KINGDOM SPEC,GRAY,TRIM1#
GRAY,TRIM1#
GRAY,TRIM1#
73252ACOVER, SHOULDER BELT ANCHOR ADJUST
main73252-95J00-13iLH102,112..RHD;LH102,RZH109..SG;LH112,RZH113..4FC;LH112,RZH113..06S..5F;RZH102,103,112,115,119198908-199308
W(ADJUSTABLE SEAT BELT),GRAY,TRIM1#
sub73252-95J00
GRAY,TRIM1#
sub73252-95J00
main73252-95J00-B1iRZH119;RZH103..5D;RZH103..DX..FRG;LH112,RZH113..4FC;LH102,112,RZH113..RHD;LH112,RZH103,113..SG..5F..STD;LH102,112,RZH113..5F..(FRG,SDN);LH102,RZH109..SG..(DX,STD)..199308-199508
W(ADJUSTABLE SEAT BELT),BLUISH GRAY,TRIM1#
sub73252-95J00
main73252-95J00-B1iRZH113..DX..EUR;RZH103..4D..(03S,09S)..EUR;LH108,11#..LHD..(03S,09S)..5F..EUR;LH102,RZH109,113..LHD..SP..5F..EUR199308-199508
BLUISH GRAY,TRIM1#
sub73252-95J00
main73252-95J00-B2iRZH113..DX..EUR;RZH103..4D..(03S,09S)..EUR;LH108,11#..LHD..(03S,09S)..5F..EUR;LH102,RZH109,113..LHD..SP..5F..EUR199308-199508
LT.GRAY,TRIM1#
sub73252-95J00
main73252-95J00-B2iRZH119;RZH103..5D;RZH103..DX..FRG;LH112,RZH113..4FC;LH102,112,RZH113..RHD;LH112,RZH103,113..SG..5F..STD;LH102,112,RZH113..5F..(FRG,SDN);LH102,RZH109..SG..(DX,STD)..199308-199508
W(ADJUSTABLE SEAT BELT),LT.GRAY,TRIM1#
sub73252-95J00
9011910492
main90119-10492
9015960389
main90159-60389
9033340001
main90333-40001
9046110595
main90461-10595
9095001126
main90950-01126
9165140612
main91651-40612
9354054012
main93540-54012

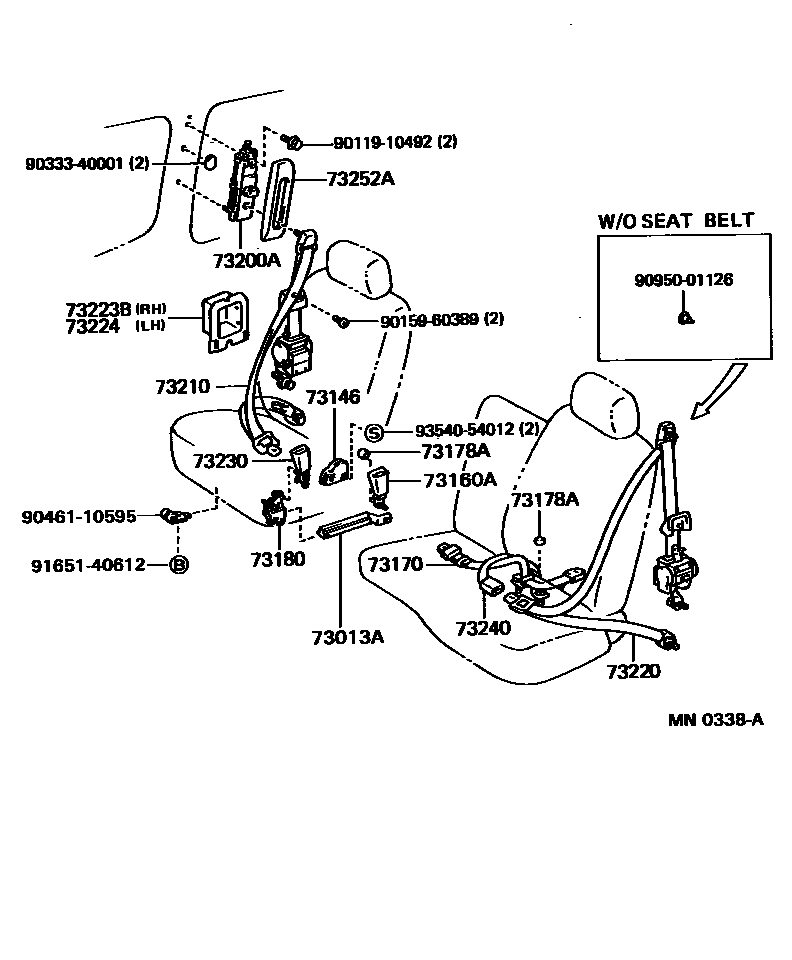

21 parts on this diagram · 4 diagrams in section
