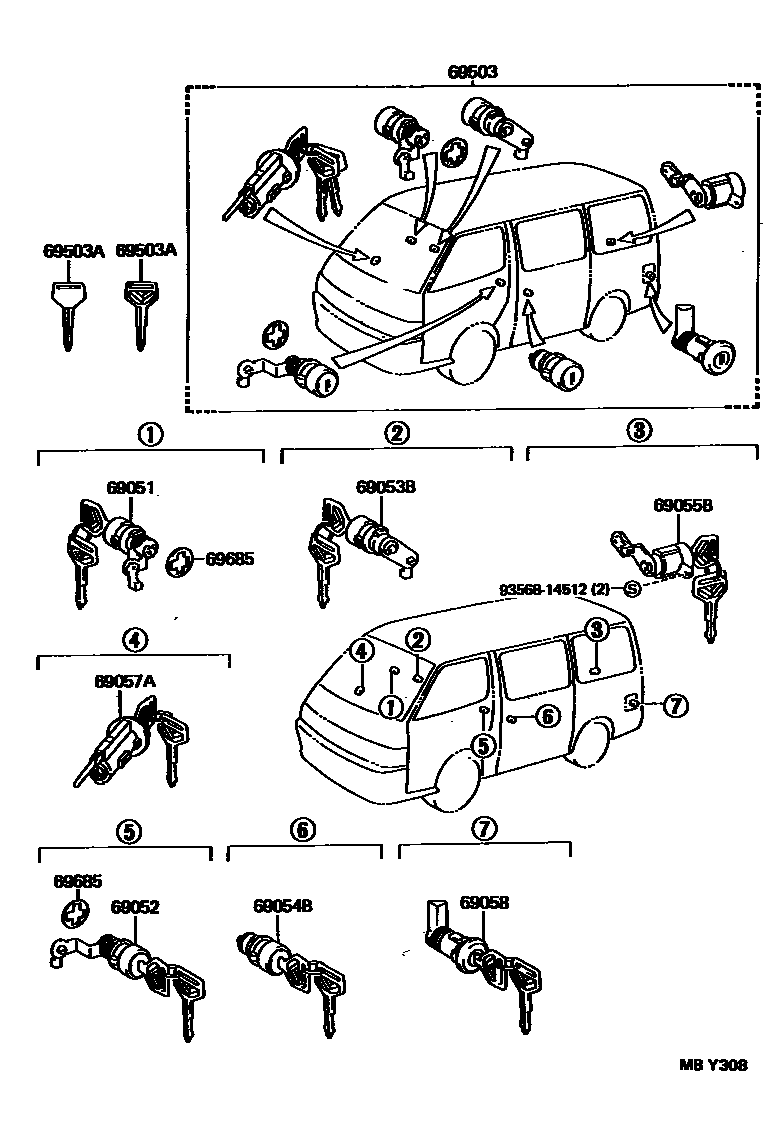

LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-95J07iLH102,RZH103..DX198908-199308

*HGP & W(*FLO)

sub69051-95J08

main69051-95J07iLH10#,11#,RZH10#,11#198908-199308

sub69051-95J08

main69051-95J08iRZH113,119..DX198908-199308

*FRG

main69051-95J08iLH112..DX198908-199308

CANARY ISLANDS

main69051-95J08iLH102,118..DX;LH102,112..LHD..SP..5F;LH108,RZH102,109..03S,09S198908-199308

SWEDEN SPEC

main69051-95J08iLH10#,11#,RZH10#,11#199308-199508

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-95J07iRZH102..DX198908-199308

*HGP & W(*FLO)

sub69052-95J08

main69052-95J07iLH10#,11#,RZH10#,11#198908-199308

sub69052-95J08

main69052-95J08iRZH113,119..DX198908-199308

SWEDEN SPEC

main69052-95J08iLH102,118..DX;LH102,112..LHD..SP..5F;LH108,RZH102,109..03S,09S198908-199308

*FRG

main69052-95J08iLH112..DX198908-199308

CANARY ISLANDS

main69052-95J08iLH10#,11#,RZH10#,11#199308-199508

69053BCYLINDER & KEY SET, SLIDE DOOR LOCK, RH

main69053-95J07iLH10#,11#,RZH10#,11#..LHD198908-199308

sub69053-95J08

main69053-95J07iLH102,RZH103..DX198908-199308

*HGP & W(*FLO)

sub69053-95J08

main69053-95J08iLH10#,11#,RZH10#,11#..LHD199308-199508

main69053-95J08iLH102,118..DX;LH102,112..LHD..SP..5F;LH108,RZH102,109..03S,09S198908-199308

*FRG

main69053-95J08iLH102,118..DX;LH102,112..LHD..SP..5F;LH108,RZH102,109..03S,09S198908-199308

SWEDEN SPEC

main69053-95J08iLH112..DX198908-199308

CANARY ISLANDS

69054BCYLINDER & KEY SET, SLIDE DOOR LOCK, LH

main69054-95J07iRZH112..03S;LH102,112..RHD;LH10#,11#,RZH10#,113,119..5D198908-199308

sub69054-95J08

main69054-95J08iLH102,112,RZH102..5D..03S..5F198908-199308

*FRG

main69054-95J08iLH102,112,RZH113..RHD;LH10#,11#,RZH103,109,11#..5D199308-199508

69055BCYLINDER & KEY SET, BACK DOOR LOCK

main69055-95J07iLH102,RZH103..DX198908-199308

*HGP & W(*FLO)

sub69055-95J08

main69055-95J07iLH10#,11#,RZH10#,11#198908-199308

sub69055-95J08

main69055-95J08iRZH113,119..DX198908-199308

*FRG

main69055-95J08iRZH113,119..DX198908-199308

SWEDEN SPEC

main69055-95J08iLH112..DX198908-199308

CANARY ISLANDS

main69055-95J08iLH10#,11#,RZH10#,11#199308-199508

main69055-95J10iLH112..RHD;LH112,RZH113..5D..03S;LH118,RZH112,119..03S;LH102,RZH102,103..LHD..4D..SP199001-199308

W(*DSBD)

sub69055-95J11

main69055-95J11iLH112..5D..03S..5F;LH102,RZH102..LHD..4D..SP199001-199308

*FRG & W(*DSBD)

main69055-95J11iLH112,RZH113..RHD;LH11#,RZH11#..5D..03S;LH102,RZH103..LHD..4D..SP199308-199508

W(*DSBD)

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-95J19iLH102,RZH103..DX198908-199308

*HGP & W(*FLO)

sub69057-95J21

main69057-95J19iLH10#,11#,RZH10#,11#198908-199308

sub69057-95J21

main69057-95J21iLH10#,11#,RZH10#,11#199308-199508

sub69057-26060

main69057-95J21iLH102,118..DX;LH102,112..LHD..SP..5F;LH108,RZH102,109..03S,09S198908-199308

*FRG

sub69057-26060

main69057-95J21iLH102,118..DX;LH102,112..LHD..SP..5F;LH108,RZH102,109..03S,09S198908-199308

SWEDEN SPEC

sub69057-26060

main69057-95J21iLH112..DX198908-199308

CANARY ISLANDS

sub69057-26060

69058CYLINDER & KEY SET, FUEL FILLER LID

main69058-95J05iLH102,RZH103..DX198908-199308

*HGP & W(*FLO)

sub69058-95J06

main69058-95J05iLH10#,11#,RZH10#,11#198908-199308

sub69058-95J06

main69058-95J06iRZH113,119..DX198908-199308

*FRG

main69058-95J06iLH112..DX198908-199308

CANARY ISLANDS

main69058-95J06iLH102,118..DX;LH102,112..LHD..SP..5F;LH108,RZH102,109..03S,09S198908-199308

SWEDEN SPEC

main69058-95J06iLH10#,11#,RZH10#,11#..DX,STD199308-199508

69503CYLINDER SET, LOCK

main69503-95J72iRZH113..DX198908-199308

SWEDEN SPEC & W(*FLO)

main69503-95J72iLH102,11#,RZH103,109,11#..LHD..4D..(DX,STD)199308-199508

W(*FLO)

main69503-95J72iLH102..DX;RZH103..4D;LH102,112..LHD..4D..SP198908-199308

*FRG & W(*FLO)

main69503-95J72iLH112..DX198908-199308

CANARY ISLANDS & W(*FLO)

main69503-95J73iLH102,RZH103..LHD..4D..SP199001-199308

*FRG & W(*DSBD & *FLO)

sub69503-95J75

main69503-95J73iLH102,RZH103..LHD..4D..SP199308-199508

W(*DSBD & *FLO)

sub69503-95J75

main69503-95J74iLH10#,11#,RZH103,109,11#..5D199308-199508

W(*FLO)

main69503-95J74iLH102,112,RZH102..5D..03S..5F198908-199308

*FRG & W(*FLO)

main69503-95J75iLH11#,RZH11#..5D..03S199308-199508

W(*DSBD & *FLO)

main69503-95J75iLH112..5D..03S..5F199001-199308

*FRG & W(*DSBD & *FLO)

main69503-95J80iLH102,112,RZH112,113..RHD198908-199508

W(*FLO)

main69503-95J81iLH112,RZH112,113..RHD199001-199508

W(*DSBD & *FLO)

main69503-95J82iLH102,11#,RZH10#,11#..LHD..4D198908-199308

W(*FLO)

sub69503-95J72

main69503-95J83iLH102,RZH102,103..LHD..4D..SP199001-199308

W(*DSBD & *FLO)

sub69503-95J73

main69503-95J84iLH10#,11#,RZH10#,112,113,119..5D198908-199308

W(*FLO)

sub69503-95J74

main69503-95J85iLH11#,RZH112,113,119..5D..03S199001-199308

W(*DSBD & *FLO)

sub69503-95J75

main69503-95N00iRZH113..DX198908-199308

SWEDEN SPEC

sub69503-95N02

main69503-95N00iLH102..DX;LH118,RZH102..4D;LH102,112..LHD..4D..SP198908-199308

*FRG

sub69503-95N02

main69503-95N00iLH112..DX198908-199308

CANARY ISLANDS

sub69503-95N02

main69503-95N00iLH102,11#,RZH10#,11#..LHD..4D..(DX,STD)199308-199508

sub69503-95N02

main69503-95N01iLH102,RZH102..LHD..4D..SP199001-199308

*FRG & W(*DSBD)

sub69503-95N03

main69503-95N01iLH102,RZH103..LHD..4D..SP199308-199508

W(*DSBD)

sub69503-95N03

main69503-95N02iLH102,112,RZH103..5D..03S..5F198908-199308

*FRG

main69503-95N02iLH10#,11#,RZH103,109,11#..5D199308-199508

main69503-95N03iLH112..5D..03S..5F199001-199308

*FRG & W(*DSBD)

main69503-95N03iLH11#,RZH11#..5D..03S199308-199508

W(*DSBD)

main69503-95N10iLH102,112,RZH112,113..RHD198908-199508

main69503-95N11iLH112,RZH112,113..RHD199001-199508

W(*DSBD)

main69503-95N12iLH102,11#,RZH10#,11#..LHD..4D198908-199308

sub69503-95N00

main69503-95N13iLH102,RZH102,103..LHD..4D..SP199001-199308

W(*DSBD)

sub69503-95N01

main69503-95N14iLH10#,11#,RZH10#,112,113,119..5D198908-199308

sub69503-95N02

main69503-95N15iLH11#,RZH112,113,119..5D..03S199001-199308

W(*DSBD)

sub69503-95N03

69503AKEY, BLANK

main90999-00130iLH102,112,RZH113..RHD198908-199508

MASTER KEY

sub90999-00153

main90999-00149iLH102,112,RZH113..RHD198908-199508

MASTER KEY,W(*68)

sub90999-00175

69685PAD, LOCK CYLINDER

main69513-32010iLH10#,11#,RZH10#,11#..DX,STD198908-199508

9356814512

main93568-14512

11 parts on this diagram · 1 diagram in section
