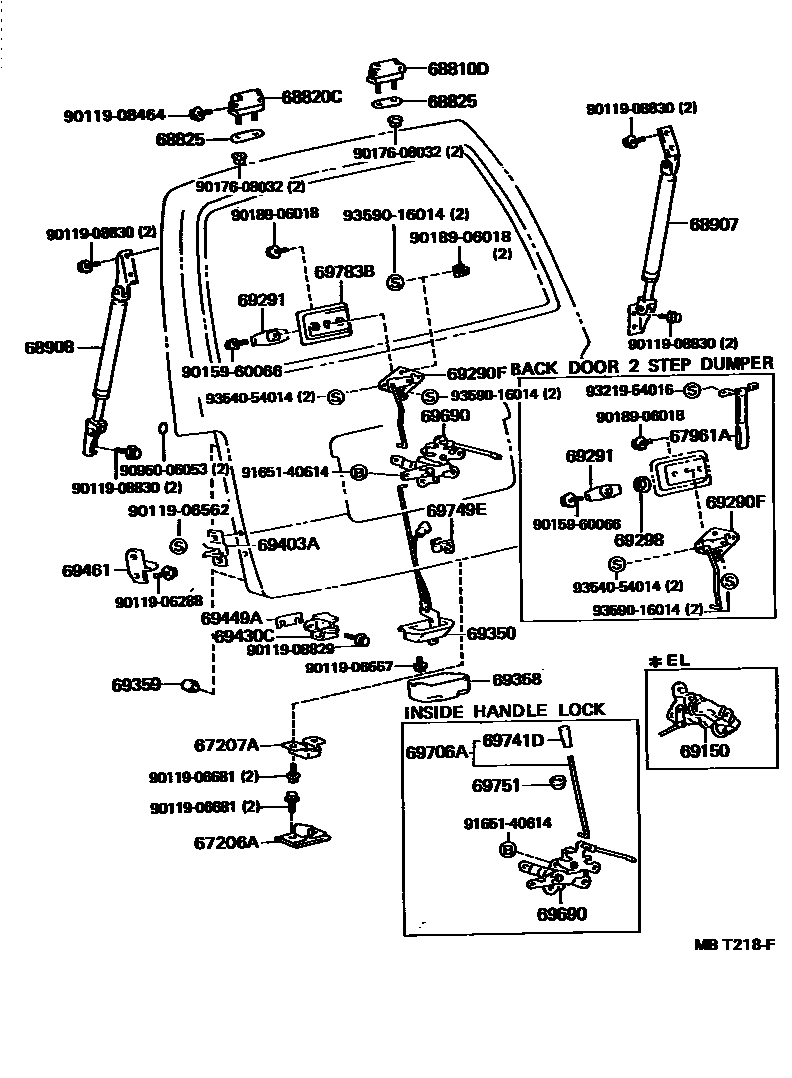

BACK DOOR LOCK & HINGE

0001 1 0002 1W(*DSBD)

67206ABRACKET SUB-ASSY, BACK DOOR STOPPER

main67206-26010iLH102,112,RZH102,112..LHD199108-199308

67207ASTOPPER SUB-ASSY, BACK DOOR, RH

main67207-95J01iLH102,112,RZH102,112..LHD199108-199308

67961ASTRAP, BACK DOOR PULL

main67961-26010iLH10#,11#,RZH10#,11#..DX,STD199003-199508

sub67961-26020

main67961-95J00-01iLH10#,11#,RZH10#,11#198908-199003

BLACK,TRIM1#

sub93269-54012

68810DHINGE ASSY, BACK DOOR, RH

main68810-95J02iLH10#,11#,RZH10#,11#198908-199508

68820CHINGE ASSY, BACK DOOR, LH

main68820-95J02iLH10#,11#,RZH10#,11#198908-199508

68825PLATE, BACK DOOR HINGE

main68825-95700×2iLH10#,11#,RZH10#,11#198908-199508

68907STAY SUB-ASSY, BACK DOOR DAMPER, RH

main68907-26160iLH10#,11#,RZH10#,11#..(DX,STD)..(EUR,FRG)199506-199508

sub68907-26510

main68907-26170iRZH113..SDN;LH102,RZH103..GL199506-199508

W(*RW)

sub68907-26520

main68907-26180iLH10#,11#,RZH10#,11#..(DX,STD)..(EUR,FRG)199506-199508

W(2 STEP DUMPER)

sub68907-26530

main68907-26190iRZH113..SDN199506-199508

W(2 STEP DUMPER & *RW)

sub68907-26540

main68907-95J13iLH10#,11#,RZH10#,11#..(DX,STD)..(EUR,FRG)198908-199506

main68907-95J14iRZH113..SDN;LH102,RZH103..GL199308-199506

W(*RW)

main68907-95J15iRZH103..STD;LH10#,11#,RZH102,109,11#199105-199108

COLD SPEC & W(*RW)

main68907-95J16iLH10#,11#,RZH10#,11#..(DX,STD)..(EUR,FRG)198908-199506

W(2 STEP DUMPER)

main68907-95J17iRZH113..SDN199308-199506

W(2 STEP DUMPER & *RW)

main68907-95J18iLH10#,11#,RZH10#,11#198908-199308

COLD SPEC & W(*RW & 2 STEP DUMPER)

68908STAY SUB-ASSY, BACK DOOR DAMPER, LH

main68908-26160iLH10#,11#,RZH10#,11#..(DX,STD)..(EUR,FRG)199506-199508

sub68908-26510

main68908-26170iRZH113..SDN;LH102,RZH103..GL199506-199508

W(*RW)

sub68908-26520

main68908-26180iLH10#,11#,RZH10#,11#..(DX,STD)..(EUR,FRG)199506-199508

W(2 STEP DUMPER)

sub68908-26530

main68908-26190iRZH113..SDN199506-199508

W(2 STEP DUMPER & *RW)

sub68908-26540

main68908-95J13iLH10#,11#,RZH10#,11#..(DX,STD)..(EUR,FRG)198908-199506

main68908-95J14iRZH113..SDN;LH102,RZH103..GL199308-199506

W(*RW)

main68908-95J15iLH102,RZH103..DX199108-199308

COLD SPEC & NORWAY SPEC OR COLD SPEC & W(*RW)

main68908-95J16iLH10#,11#,RZH10#,11#..(DX,STD)..(EUR,FRG)198908-199506

W(2 STEP DUMPER)

main68908-95J17iLH10#,11#,RZH10#,11#198908-199308

COLD SPEC & W(2 STEP DAMPER) OR W(2 STEP DAMPER & *RW)

main68908-95J18iLH10#,11#,RZH10#,11#198908-199308

COLD SPEC & W(*RW & 2 STEP DUMPER)

69150ACTUATOR ASSY, BACK DOOR LOCK

main69150-95J00iRZH102..DX198908-199105

69290FHANDLE ASSY, BACK DOOR INSIDE

main69290-95J01iLH10#,11#,RZH10#,11#198908-199005

69291HANDLE ASSY, BACK DOOR INSIDE

main69291-95J00-23iRZH109;LH102..RHD;LH102..SG..03S;LH11#,RZH102,11#..SG;LH10#,RZH102,103..5D;LH112,RZH113..LHD..4D..03S199108-199308

GRAY,TRIM1#

main69291-95J00-B0iLH102..RHD;LH102,RZH103..5D;LH108,RZH102,109;LH112,RZH113..SG;LH112,RZH113..LHD..4D..03S;LH102,118,RZH103,119..4D..SG199308-199508

BLUISH GRAY,TRIM1#

main69291-95J01iLH112..RHD;LH112,RZH113..5D..03S;LH118,RZH112,119..03S;LH102,RZH102,103..LHD..4D..SP199001-199308

W(*DSBD)

69298COVER, BACK DOOR INSIDE HANDLE

main69298-95J00iLH10#,11#,RZH10#,11#..DX,STD198908-199508

69350LOCK ASSY, BACK DOOR

main69350-95J01iLH10#,11#,RZH10#,11#198908-199308

sub69350-37020

main69350-95J02iLH10#,11#,RZH103,109,11#..STD..(EUR,FRG)199308-199508

main69350-95J03iLH112,RZH113..RHD;LH112,RZH113..5D..03S;LH118,RZH112,119..03S;LH102,RZH102,103..LHD..4D..SP199001-199508

W(*DSBD)

69358PROTECTOR, BACK DOOR LOCK

main69358-95J00iLH10#,11#,RZH10#,112,113,119..STD..(EUR,FRG)198908-199508

69359CUSHION, BACK DOOR LOCK

main90541-09001×2iLH10#,11#,RZH10#,11#199002-199508

main90541-09029×2iLH10#,11#,RZH10#,11#198908-199002

69403ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH

main69403-26010×2iLH102,112,RZH102,112..LHD199205-199308

U.S.S.R SPEC

main69403-26030×2iLH10#,11#,RZH10#,11#199506-199508

sub69403-26050

main69403-95J05×2iLH10#,11#,RZH10#,11#198908-199506

sub69403-26050

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-95J00iLH10#,11#,RZH10#,11#198908-199308

main69430-95J01iLH10#,11#,RZH103,109,11#..STD..(EUR,FRG)199308-199508

69449ASHIM, BACK DOOR LOCK STRIKER

main69449-95J00iLH10#,11#,RZH10#,112,113,119..STD198908-199001

main69449-95J01iLH112,RZH113..RHD;LH118,RZH112,119..03S;LH102,RZH102,103..LHD..4D..SP;LH112,RZH113..5D..03S..(EUR,FRG)199001-199508

W(*DSBD)

69461STOPPER, BACK DOOR SIDE MALE, RH

main69461-26010×2iLH102,112,RZH102,112..LHD199205-199308

U.S.S.R SPEC

main69461-26030×2iLH10#,11#,RZH10#,11#199506-199508

main69461-95J03×2iLH10#,11#,RZH10#,11#198908-199506

main69461-95J04iLH112..5D..03S..5F199001-199008

W(*DSBD)

69690CONTROL ASSY, BACK DOOR REMOTE

main69690-95J03iLH10#,11#,RZH10#,11#198908-199112

main69690-95J04iLH10#,11#,RZH10#,11#198908-199112

W(BACK DOOR INSIDE LOCK)

69706AROD SUB-ASSY, BACK DOOR LOCK REMOTE CONTROL

main69706-95J01iRZH102..DX198908-199105

69741DKNOB, DOOR LOCK CONTROL(FOR BACK DOOR)

main69741-28010-C1iRZH102..DX198908-199105

W(BACK DOOR INSIDE LOCK HANDLE),BLACK,TRIM1#

69749ECLAMP, BACK DOOR LOCK LINK

main69749-30020iLH10#,11#,RZH10#,112,113,119..STD198908-199005

69751HOLDER, DOOR LOCK CONTROL KNOB

main69751-95J00-B0iRZH103..STD;LH10#,11#,RZH102,109,112,113,119199107-199108

GRAY,TRIM1#

main69751-95J00-C0iLH10#,11#,RZH10#,11#199308-199508

BLACK,TRIM1#

69783BBEZEL, BACK DOOR INSIDE HANDLE

main69783-95J01-03iRZH102..DX199005-199105

GRAY,TRIM1#

sub69783-95J02

main69783-95J01-B0iLH102,RZH103..GL199308-199508

BLUISH GRAY,TRIM1#

sub69783-95J02

9011906288

main90119-06288

9011906557

main90119-06557

9011906562

main90119-06562

9011906681

main90119-06681

9011908464

main90119-08464

9011908829

main90119-08829

9011908830

main90119-08830

9015960066

main90159-60066

9017608032

main90176-08032

9018906018

main90189-06018

9095006053

main90950-06053

9165140614

main91651-40614

9321954016

main93219-54016

9354054014

main93540-54014

9359016014

main93590-16014

40 parts on this diagram · 2 diagrams in section
