E
EPC Data

BACK DOOR PANEL & GLASS

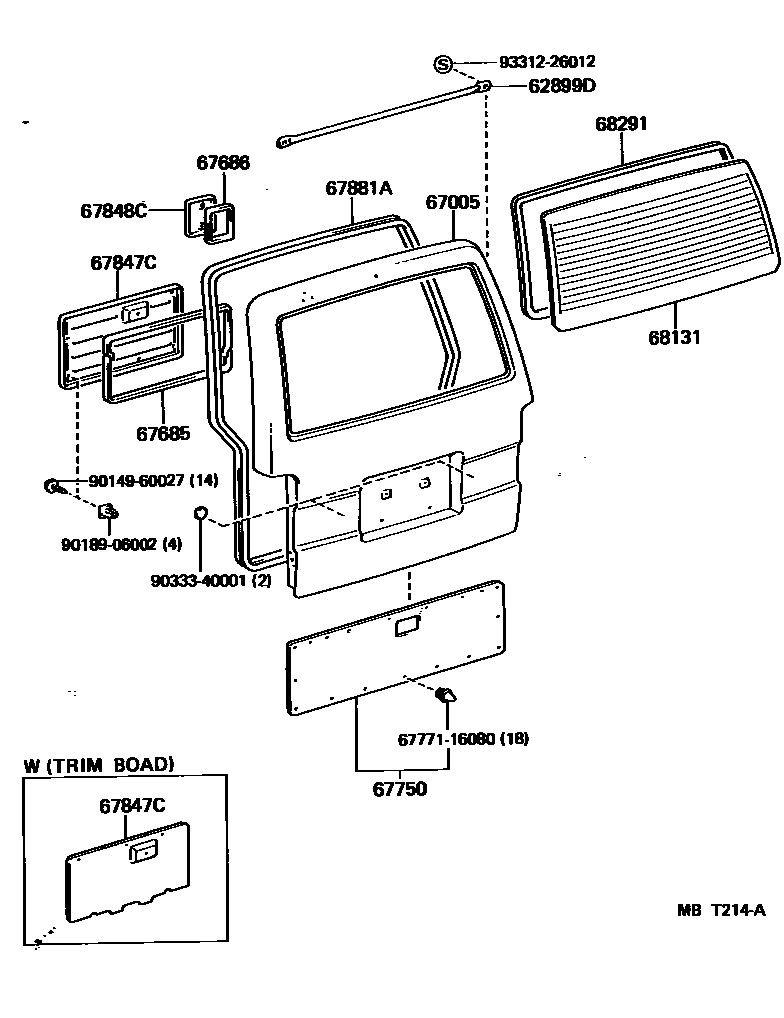

Parts diagram
62899DBAR, BACK DOOR WINDOW GUARD
main62899-95J00i198908-199508
67005PANEL SUB-ASSY, BACK DOOR
main67005-26180i199205-199308
SWEDEN SPEC & W(*RWD)
main67005-26180i199205-199308
COLD SPEC & W(SIDE BUILT-IN REAR HEATER)
main67005-26180i199205-199308
COLD SPEC & W(SIDE BUILT-IN REAR HEATER) OR NORWAY SPEC & W(*RWD)
main67005-26180i199205-199308
W(*RWD)
main67005-26180i199205-199308
NORWAY SPEC & W(*RWD)
main67005-26180i199108-199205
U.S.S.R. SPEC
main67005-26180i199205-199508
main67005-95N50i199105-199205
SWEDEN SPEC & W(*RWD & 2 STEP BACK DOOR DAMPER);NORWAY SPEC & W(*RWD & 2 STEP BACKDOOR DAMPER)
sub67005-95P01
main67005-95N50i198908-199205
W(*RWD & 2 STEP BACK DOOR DAMPER)
sub67005-95P01
main67005-95N50i199010-199108
W(2 STEP BACK DOOR DAMPER)
sub67005-95P01
main67005-95N50i198908-199205
COLD SPEC & W(2 STEP BACK DOOR DAMPER & SIDE BUILT-IN REAR HEATER);W(*RWD & 2STEP BACK DOOR DAMPER)
sub67005-95P01
main67005-95N57i198908-199205
W(*RWD & BACK WINDOW GUARD & 2 STEP BACK DOORDAMPER)
sub67005-95N60
main67005-95N57i198908-199205
W(*RWD & BACK DOOR DAMPER & 2 STEP BACK DOOR DAMPER)
sub67005-95N60
main67005-95N57i198908-199205
W(*RWD & BACK WINDOW GUARD & 2 STEP BACK DOOR DAMPER)
sub67005-95N60
main67005-95N57i199105-199205
SWEDEN SPEC & W(*RWD & BACK WINDOW GUARD & 2 STEP BACK DOOR DAMPER);NORWAY SPEC &W(*RWD & BACK WINDOW GUARD & 2 STEP BACK DOOR DAMPER)
sub67005-95N60
main67005-95N57i198908-199205
W(*RWD & 2 STEP BACK DOOR DAMPER & BACK WINDOW GUARD)
sub67005-95N60
main67005-95N57i199108-199205
NORWAY SPEC & W(*RWD & BACK WINDOW GUARD & 2 STEP BACK DOOR DAMPER)
sub67005-95N60
main67005-95N57i199010-199108
W(BACK WINDOW GUARD & 2 STEP BACK DOOR DAMPER)
sub67005-95N60
main67005-95N60i198908-199508
W(BACK WINDOW GUARD & 2 STEP BACK DOOR DAMPER)
main67005-95N79i199108-199308
NORWAY SPEC & W(*RWD & *RW)
main67005-95N79i198908-199308
NORWAY SPEC & W(*RWD)
main67005-95N79i199308-199508
main67005-95N80i198908-199308
COLD SPEC & W(SIDE BUILT-IN REAR HEATER & *RW) OR W(*RWD & *RW)
sub67005-95N81
sub90333-20001
main67005-95N80i198908-199308
W(*RWD & *RW)
sub67005-95N81
sub90333-20001
main67005-95N80i199105-199308
W(*RWD & *RW) OR SWEDEN SPEC & W(*RWD & *RW) 0R NORWAY SPEC & W(*RWD & *RW)
sub67005-95N81
sub90333-20001
main67005-95N80i199010-199108
W(*RW)
sub67005-95N81
sub90333-20001
main67005-95N80i199308-199508
W(*RWD)
sub67005-95N81
sub90333-20001
main67005-95N81i198908-199308
W(*RWD & 2 STEP BACK DOOR DAMPER & *RW)
main67005-95N81i198908-199308
W(*RWD & *RW & 2 STEP BACK DOOR DAMPER)
main67005-95N81i199105-199308
SWEDEN SPEC & W(*RWD & *RW & 2 STEP BACK DOOR DAMPER);NORWAY SPEC & W(*RWD & *RW &2 STEP BACK DOOR DAMPER)
main67005-95N81i199308-199508
W(2 STEP BACK DOOR DAMPER)
main67005-95N81i199308-199508
W(*RWD & 2 STEP BACK DOOR DAMPER)
main67005-95N81i199010-199108
W(*RW & 2 STEP BACK DOOR DAMPER)
main67005-95N81i198908-199205
COLD SPEC & W(2 STEP BACK DOOR DAMPER & *RW & SIDE BUILT-IN REAR HEATER)
main67005-95N82i199308-199508
W(*RWD & BACK WINDOW GUARD)
sub67005-95N83
sub90333-20001
main67005-95N82i199308-199508
W(BACK WINDOW GUARD)
sub67005-95N83
sub90333-20001
main67005-95N82i198908-199308
W(*RWD & BACK WINDOW GUARD & *RW)
sub67005-95N83
sub90333-20001
main67005-95N82i199010-199108
W(*RW & BACK WINDOW GUARD)
sub67005-95N83
sub90333-20001
main67005-95N82i198908-199308
W(*RWD & *RW & BACK WINDOW GUARD)
sub67005-95N83
sub90333-20001
main67005-95N82i199105-199308
NORWAY SPEC & W(*RWD & *RW & BACK WINDOW GUARD);SWEDEN SPEC & W(*RWD & *RW & BACKWINDOW GUARD)
sub67005-95N83
sub90333-20001
main67005-95N82i199105-199308
W(*RWD & *RW & BACK DOOR WINDOW GUARD)
sub67005-95N83
sub90333-20001
main67005-95N82i199205-199308
W(BACK WINDOW GUARD & *RW)
sub67005-95N83
sub90333-20001
main67005-95N83i198908-199308
W(*RWD & BACK WINDOW GUARD & 2 STEP BACK DOOR DAMPER & *RW)
main67005-95N83i198908-199308
W(*RWD & BACK WINDOW GUARD & 2 STEP BACK DOORDAMPER & *RW)
main67005-95N83i199205-199308
W(BACK WINDOW GUARD & 2 STEP BACK DOOR DAMPER & *RW)
main67005-95N83i199308-199508
W(BACK WINDOW GUARD & 2 STEP BACK DOOR DAMPER)
main67005-95N83i199308-199508
W(*RWD & BACK WINDOW GUARD & 2 STEP BACK DOOR DAMPER)
main67005-95N83i198908-199205
W(*RWD & *RW & BACK DOOR WINDOW GUARD & 2 STEP BACK DOOR DAMPER)
main67005-95N83i199010-199108
W(BACK DOOR WINDOW GUARD & 2-STEP BACK DOOR DAMPER & *RW)
main67005-95N83i198908-199308
W(*RWD & *RW & BACK WINDOW GUARD & 2 STEP BACK DOOR DAMPER
main67005-95N83i199105-199308
NORWAY SPEC & W(*RWD & *RW & BACK WINDOW GUARD & 2 STEP BACK DOOR DAMPER);SWEDEN SPEC & W(*RWD & *RW & BACK WINDOW GUARD & 2 STEP BACK DOOR DAMPER)
main67005-95N88i199108-199205
COLD SPEC & W(SIDE BUILT-IN REAR HEATER) OR NORWAY SPEC & W(*RWD) OR W(*RWD)
sub67005-95P00
main67005-95N88i198908-199205
COLD SPEC & W(SIDE BUILT-IN REAR HEATER) OR W(*RWD)
sub67005-95P00
main67005-95N88i198908-199205
W(*RWD)
sub67005-95P00
main67005-95N88i199010-199108
sub67005-95P00
main67005-95P00i198908-199205
sub67005-26180
main67005-95P01i198908-199508
W(2 STEP BACK DOOR DAMPER)
main67005-95P02i198908-199205
W(*RWD & BACK DOOR DAMPER)
sub67005-95P03
main67005-95P02i198908-199205
W(*RWD & BACK WINDOW GUARD)
sub67005-95P03
main67005-95P02i199105-199205
NORWAY SPEC & W(*RWD & BACK WINDOW GUARD) OR SWEDEN SPEC & W(*RWD & BACK WINDOW GUARD);SWEDEN SPEC & W(*RWD & BACK WINDOW GUARD)
sub67005-95P03
main67005-95P02i199010-199108
W(BACK WINDOW GUARD)
sub67005-95P03
main67005-95P03i198908-199508
W(BACK WINDOW GUARD)
sub67005-95N60
sub90333-20001
67685PACKING, BACK DOOR SERVICE HOLE, NO.1
main67685-95J01i198908-199508
67686PACKING, BACK DOOR SERVICE HOLE, NO.2
main67526-95A00i198908-199508
67750BOARD ASSY, BACK DOOR TRIM
main67750-95J15-03i198908-199308
NORWAY SPEC,GRAY,TRIM1#
main67750-95J15-B2i199308-199508
BLUISH GRAY,TRIM1#
67847COVER, BACK DOOR SERVICE HOLE, RH
main67847-95J07i198908-199508
67847CCOVER, BACK DOOR SERVICE HOLE, NO.1
main67847-95J05i198908-199508
W(BACK DOOR INSIDE LOCK)
main67847-95J06i198908-199508
main67847-95J09i198908-199308
NORWAY SPEC & W(BACK DOOR INSIDE LOCK)
main67847-95J09i199308-199508
67848COVER, BACK DOOR SERVICE HOLE, LH
main67848-95J01i198908-199508
67848CCOVER, BACK DOOR SERVICE HOLE, NO.2
main67848-95J00i198908-199508
67881AWEATHERSTRIP, BACK DOOR
main67881-26010i199006-199508
W(*DSBD)
main67881-95J16i198908-199508
main67881-95J17i199001-199006
W(*DSBD)
sub67881-26010
68131GLASS, BACK DOOR
main68131-26040i199308-199508
*TEM,T=3.5
sub68131-26180
main68131-26050i199308-199508
*EHT,T=3.5
sub68131-26190
main68131-26050i199308-199508
*EHT,T=3.5,W(*RWD)
sub68131-26190
main68131-26070i199308-199508
*EHTT,T=3.5
sub68131-26190
main68131-95J09i198908-199308
*EHT,T=4.0,W(*RWD) OR (COLD AREA PACKAGE & W(REAR HEATER))
sub68131-26050
main68131-95J09i198908-199308
*EHT,T=4.0,W(*RWD)
sub68131-26050
main68131-95J09i199010-199108
*EHT,T=4.0
sub68131-26050
main68131-95J10i198908-199308
*TEM,T=4.0
sub68131-26040
main68131-95J11i198908-199308
*EHTT,T=4.0,NORWAY SPEC & W(*RWD)
sub68131-26070
68291WEATHERSTRIP, BACK DOOR GLASS
main68291-95J04i198908-199508
W(CHROME PLATED WINDSHIELD MOULDING)
main68291-95J04i199203-199308
NORWAY SPEC & W(*RWD) OR W(CHROME PLATED WINDSHIELD MOULDING)
main68291-95J05i199108-199203
COLD PACKAGE & W(SIDE BUILT-IN REAR HEATER) OR NORWAY SPEC & W(*RWD)
main68291-95J05i198908-199308
NORWAY SPEC & W(*RWD)
main68291-95J05i198908-199308
SWEDEN SPEC & W(*RWD)
main68291-95J05i198908-199308
COLD SPEC & W(SIDE BUILT-IN REAR HEATER)
main68291-95J05i199105-199308
SWEDEN SPEC & W(*RWD) OR NORWAY SPEC & W(*RWD)
main68291-95J05i198908-199508
6777116080WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-16080
9014960027
main90149-60027
9018906002
main90189-06002
9033340001
main90333-40001
9331226012
main93312-26012

17 parts on this diagram · 2 diagrams in section
