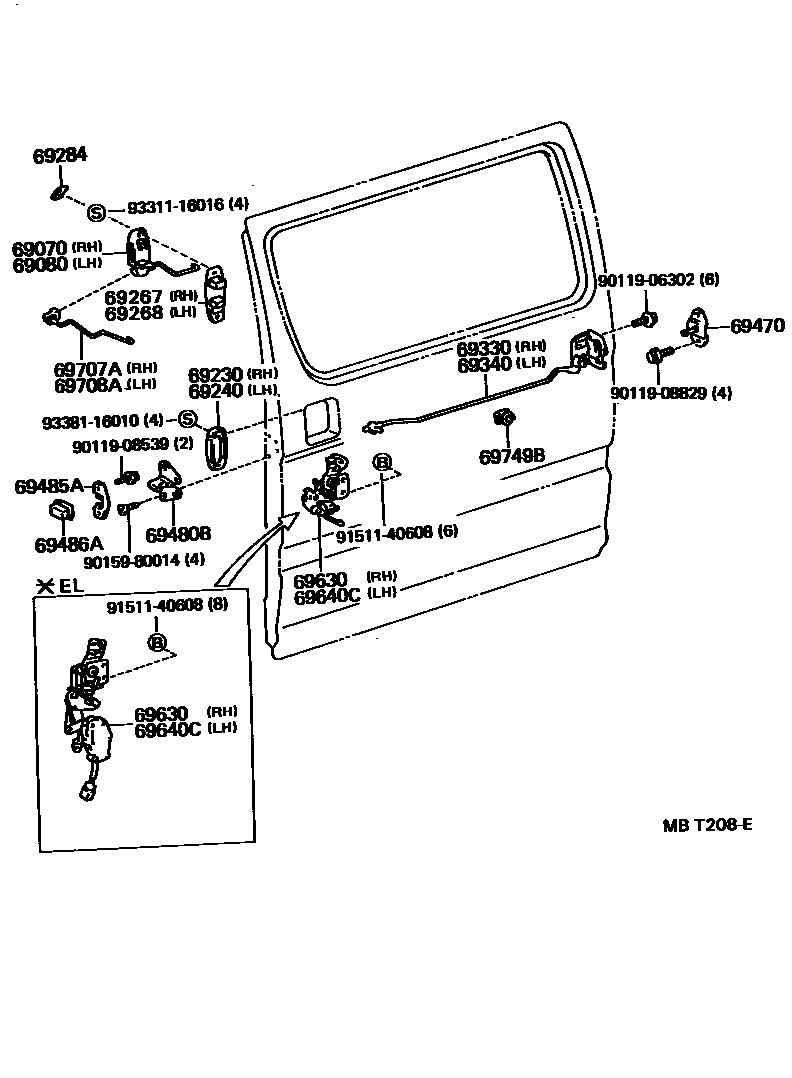

REAR DOOR LOCK & HANDLE

69070HANDLE ASSY, SLIDE DOOR, INSIDE, RH

main69070-95J03-03iLH10#,11#,RZH10#,11#..LHD198908-199308

GRAY,TRIM1#

main69070-95J03-B0iLH10#,11#,RZH10#,11#..LHD..(DX,STD)199308-199508

BLUISH GRAY,TRIM1#

main69070-95J05-03iLH102,RZH103..DX199108-199308

NORWAY SPEC,GRAY,TRIM1#

main69070-95J05-B0iLH102,RZH103..GL199308-199508

BLUISH GRAY,TRIM1#

69080HANDLE ASSY, SLIDE DOOR, INSIDE, LH

main69080-95J03-03iRZH112..03S;LH102,112..RHD;LH10#,11#,RZH10#,113,119..5D198908-199308

GRAY,TRIM1#

main69080-95J03-B0iLH102,112,RZH113..RHD;LH10#,11#,RZH103,109,11#..5D199308-199508

BLUISH GRAY,TRIM1#

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-95J01iLH10#,11#,RZH10#,11#..LHD198908-199508

NO PAINT REQ.

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-95J01iRZH112..03S;LH102,112,RZH113..RHD;LH10#,11#,RZH10#,113,119..5D198908-199508

BLACK, NO PAINT REQ.

69267SEAL, SLIDE DOOR INSIDE HANDLE, NO.1

main69267-95J01iRZH102..STD;LH102,112,RZH112..LHD199108-199308

U.S.S.R. SPEC

sub69267-26010

69268PLATE, WINDOW REGULATOR HANDLE

main69268-95J00iLH102,112,RZH102,112..5D..5F199010-199205

sub69268-95J01

69284PLUG, SLIDE DOOR INSIDE HANDLE

main69284-95J00-03×2iLH10#,11#,RZH10#,11#198908-199308

GRAY,TRIM1#

main69284-95J00-B0×2iLH10#,11#,RZH10#,11#199308-199508

BLUISH GRAY,TRIM1#

69330LOCK ASSY, REAR DOOR, RH

main69330-95J00iLH102..06S;LH112,RZH112..SG199010-199205

U.S.S.R. PACKAGE

main69330-95J01iLH102..03S..DX;LH102,11#,RZH10#,11#..05S,06S,09S,15S198908-199508

69340LOCK ASSY, REAR DOOR, LH

main69340-95J01iRZH113..5D..06S..5F198908-199205

W/O REAR SEAT

main69340-95J02iLH102,112,RZH113..5D..06S198908-199508

69470PLATE ASSY, SLIDE DOOR LOCK STRIKER

main69470-26010iLH10#,11#,RZH10#,11#199506-199508

main69470-95D00iLH10#,11#,RZH10#,11#198908-199506

sub69470-46010

69480BHOOK ASSY, SLIDE DOOR FRONT LOCK

main69480-26010iLH102,11#,RZH10#,11#..06S,09S199205-199210

main69480-26020iLH102..03S..DX;LH102,11#,RZH10#,11#..05S,06S,09S199210-199508

sub69481-25010

main69480-95701iLH102,11#,RZH10#,11#..06S,09S,15S198908-199205

69485ABRACKET, SLIDE DOOR FRONT LOCK STRIKER

main69485-26010iLH102..03S..DX;LH102,11#,RZH10#,11#..05S,06S,09S199205-199508

main69485-95701iLH102,11#,RZH10#,11#..06S,09S,15S198908-199205

69486ACOVER, SLIDE DOOR FRONT LOCK STRIKER

main69486-95701iLH102..03S..DX;LH102,11#,RZH10#,11#..05S,06S,09S,15S198908-199508

69630CONTROL ASSY, SLIDE DOOR LOCK REMOTE

main69630-95J03iLH10#,11#,RZH10#,11#..LHD..(DX,STD)198908-199508

main69630-95J04iLH102,RZH103..LHD..STD;LH108,11#,RZH102,109,11#..LHD199108-199308

W(*EL)

69640CCONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH

main69640-95J05iRZH112..03S;LH102,112,RZH113..RHD;LH10#,11#,RZH10#,113,119..5D198908-199508

main69640-95J06iRZH112..03S;LH102,112,RZH113..RHD;LH10#,11#,RZH10#,113,119..5D198908-199508

W(*EL)

69707AROD SUB-ASSY, SLIDE DOOR LOCKING CONTROL PUSH, RH

main69707-95J01-03iLH10#,11#,RZH10#,11#..LHD198908-199308

GRAY,TRIM1#

main69707-95J01-B0iLH10#,11#,RZH10#,11#..LHD199308-199508

BLUISH GRAY,TRIM1#

69708AROD SUB-ASSY, SLIDE DOOR LOCKING CONTROL PUSH, LH

main69708-95J01-03iRZH112..03S;LH102,112..RHD;LH10#,11#,RZH10#,113,119..5D198908-199308

GRAY,TRIM1#

main69708-95J01-B0iLH102,112,RZH113..RHD;LH10#,11#,RZH103,109,11#..5D199308-199508

BLUISH GRAY,TRIM1#

69749BCLAMP, REAR DOOR LOCK LINK

main69749-20010iLH102..03S..DX;LH102,11#,RZH10#,11#..05S,06S,09S,15S198908-199508

main69749-95J00iRZH102..DX199010-199108

W/O(REAR SEAT)

9011906302

main90119-06302

9011908539

main90119-08539

9011908829

main90119-08829

9015980014

main90159-80014

9151140608

main91511-40608

9331116016

main93311-16016

9338116010

main93381-16010

25 parts on this diagram · 1 diagram in section
