REAR VENTILATOR & ROOF VENTILATOR

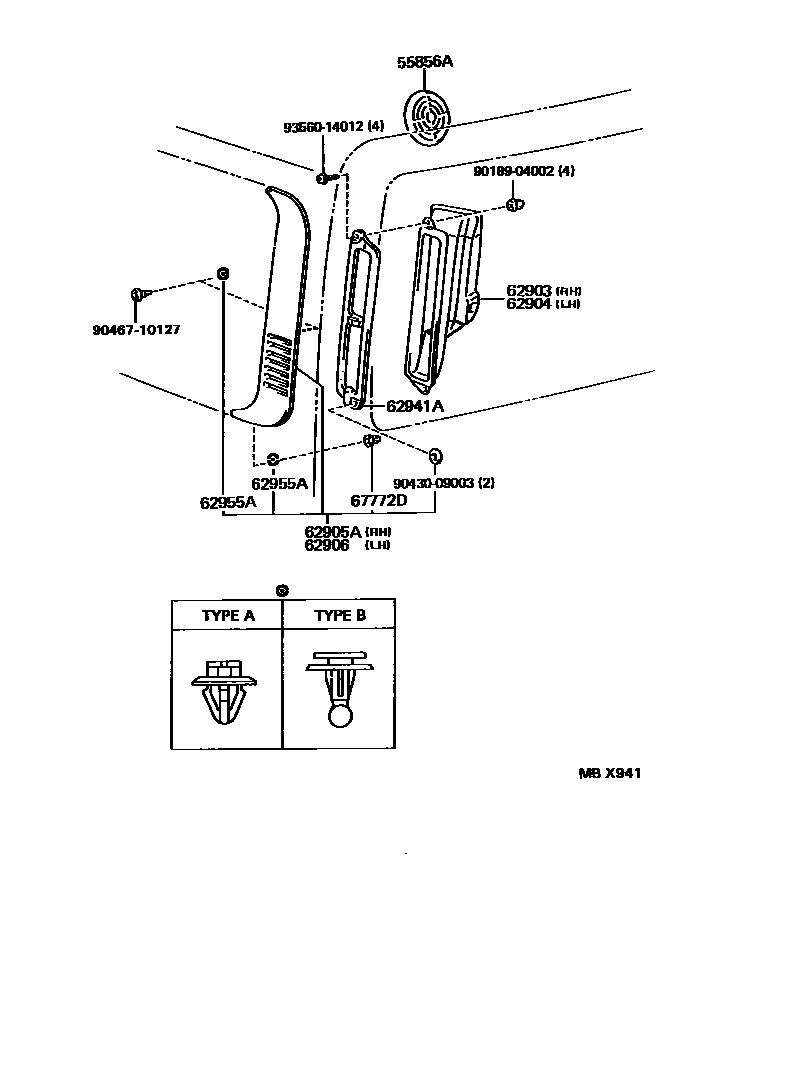

Parts diagram

55856ALOUVER, REAR VENTILATOR

main55856-95J00-08i199105-199108

HUNGARY AMBULANCE SPEC & W/O REAR SEAT,IVORY,TRIM1#

main55856-95J00-08i198908-199308

IVORY,TRIM1#

main55856-95J00-B0i199308-199508

LI. GRAY,TRIM1#

62903DUCT SUB-ASSY, QUARTER VENTILATOR, RH

main62903-95J00i198908-199508

62904DUCT SUB-ASSY, QUARTER VENTILATOR, LH

main62904-95J00i198908-199508

62905ALOUVER, QUATER VENTILATION, RH

main62905-95J00i198908-199108

W(*FRS) OR W/O REAR SEAT

main62905-95J00i198908-199308

NORWAY SPEC OR W(*FRS) OR W/O REAR SEAT

main62905-95J00i198908-199508

main62905-95J00i199105-199108

NORWAY SPEC

main62905-95J01i198908-199308

W(*FRS)

main62905-95J01i199010-199108

FOR HUNGARY AMBULANCE SPEC & W/O REAR SEAT

62906LOUVER, QUATER VENTILATION, LH

main62906-95J00i198908-199108

W(*FRS) OR W/O REAR SEAT

main62906-95J00i198908-199308

NORWAY SPEC OR W(*FRS) OR W/O REAR SEAT

main62906-95J00i199105-199108

NORWAY SPEC

main62906-95J00i198908-199508

main62906-95J01i198908-199308

W(*FRS)

main62906-95J01i199010-199108

FOR HUNGARY AMBULANCE SPEC & W/O REAR SEAT

62941ARETAINER, QUARTER VENT DUCT

main62941-95J01i198908-199508

RH

main62942-95J01i198908-199508

LH

62955ARETAINER, QUARTER VENT LOUVER

main62955-20020i198908-199308

TYPE A

main62955-20040i198908-198911

TYPE B

main62955-26010i199010-199508

TYPE B

main62955-26020i199308-199508

TYPE A

main90467-06123i198911-199010

TYPE B

67772DCAP, DOOR TRIM RETAINER

main67772-95J01i198908-199508

9018904002

main90189-04002

9043009003

main90430-09003

9046710127

main90467-10127

9356014012

main93560-14012

12 parts on this diagram · 1 diagram in section
