SIDE WINDOW
62229PACKING, SIDE WINDOW
62229APACKING, SIDE WINDOW, NO.2
62229BPACKING, SIDE WINDOW, NO.3
main62229-95J01iLH112..4FC;LH102,112..RHD;LH102,112,RZH102..SG;LH108,118,RZH103,109,11#199010-199508
62249PLATE, SIDE WINDOW, RH
W(SLIDE WINDOW)
W(*FRS)
62279SPACER, SIDE WINDOW FRAME, UPPER
62703EFRAME SUB-ASSY, SIDE REAR WINDOW, RH
62704EFRAME SUB-ASSY, SIDE REAR WINDOW, LH
62708FFRAME SUB-ASSY, SIDE FRONT WINDOW, LH
*FRG & W(*FRS OR W/O REAR SEAT)
*FRG & W(*FRS) OR W/O(REAR BELT)
W(*FRS)
FOR HUNGARY AMBULANCE SPEC & W/O(REAR BELT)
NORWAY SPEC OR W(*FRS) OR W/O(REAR BELT)
W(*FRS) OR W/O(REAR BELT)
NORWAY SPEC
W/O(REAR SEAT)
62712EGLASS, SIDE FRONT WINDOW, LH
*TT,T=4.0
*TEM,T=3.5
*TEM,T=3.5,W(SLIDE DOOR WINDOW GLASS(CLEAR,FIXED))
*TEM,T=4.0,W(SLIDE DOOR WINDOW GLASS(CLEAR,FRONT SLIDE))
sub62712-26100
*TEM,T=4.0,HUNGARY AMBULANCE SPEC & W/O REAR SEAT
sub62712-26100
62714BGLASS, SIDE WINDOW, REAR LH
*TT,T=4.0
*TEM,T=4.0,*FRG & W(*FRS OR W/O REAR SEAT)
*TEM,T=4.0,HUNGARY AMBULANCE SPEC & W/O REAR SEAT
sub62714-26060
*TT,T=4.0,NORWAY SPEC
62715FGLASS, SIDE REAR WINDOW, RH
*EHT,T=4.0,*FRG
*TEM,T=3.5,FOR HUNGARY AMBULANCE SPEC & W/O(REAR SEAT)
sub62715-95J11
*EHT,T=4.0,SWEDEN SPEC
*EHT,T=4.0,*FRG
*EHT,T=4.0,CANARY ISLANDS
62719APACKING, SIDE FRONT WINDOW, UPPER
main62719-95J02iLH112..4FC;LH102,112..RHD;LH102,112,RZH102..SG;LH108,118,RZH103,109,11#198908-199308
W(SLIDE DOOR WINDOW GLASS(CLEAR,FRONT SLIDE)),50 X 16.5
50 X 16.5
50X16.5
30 X 16.5
W(SLIDE DOOR WINDOW GLASS(CLEAR,FRONT SLIDE)),30 X 16.5
30X16.5
62719BPACKING, SIDE REAR WINDOW, UPPER
50X16.5
50 X 16.5
30 X 16.5
30X16.5
62724DSTOP, SIDE FRONT WINDOW GLASS, LH
W(FOLDING REAR SEAT)
FOR HUNGARY AMBULANCE SPEC & W/O(REAR SEAT)
W(*FRS) OR W/O(REAR SEAT)
NORWAY SPEC
W/O(REAR SEAT)
NORWEY SOEC OR W(*FRS) OR W/O(REAR SEAT);W(FOLDING REAR SEAT) OR W/O REAR SEAT
62724ESTOP, SIDE REAR WINDOW GLASS, RH
FR
RR
62724GSTOP, SLIDE DOOR WINDOW GLASS, RH
W(FOLDING REAR SEAT)
FOR HUNGARY AMBULANCE SPEC & W/O(REAR SEAT)
main62751-95661iLH112..4FC;LH102,112..SG..STD;LH108,118,RZH102,109,112,113,119..LHD..STD198908-199308
NORWEY SOEC OR W(*FRS) OR W/O(REAR SEAT);W(FOLDING REAR SEAT) OR W/O REAR SEAT
main62751-95661iLH112..4FC;LH102,112..SG..STD;LH108,118,RZH102,109,112,113,119..LHD..STD198908-199308
W(FRONT SLIDE GLASS TYPE)
W/O(REAR SEAT)
W(*FRS) OR W/O(REAR SEAT)
NORWAY SPEC
62724HSTOP, SLIDE DOOR WINDOW GLASS, LH
main62751-95661iRZH113..5D;LH112..4FC;LH102,112..06S;LH102,112..RHD;LH118,RZH112,119..03S198908-199308
62732CGLASS, SLIDE DOOR WINDOW, FRONT RH
*FRG & W(SLIDE DOOR WINDOW GLASS(CLEAR,FRONT SLIDE))
sub62732-26020
sub62732-26020
*TEM,T=4.0,W(SLIDE DOOR WINDOW GLASS(CLEAR,FRONT SLIDE))
sub62732-26070
main62732-95J10iLH112..4FC;LH102,112,RZH102,115..06S,09S,15S;LH108,118,RZH103,109,112,113,119..LHD198908-199308
*TEM,T=4.0
sub62732-26070
62733BGLASS, SIDE REAR WINDOW, REAR RH
*FRG
SWEDEN SPEC
*FRG
CANARY ISLANDS
62735AGRASS, SLIDE DOOR WINDOW, REAR RH
*FRG & W(SLIDE DOOR WINDOW GLASS(CLEAR,FRONT SLIDE))
*FRG & W(*FRS) OR W/O(REAR SEAT)
*FRG & W(*FRS OR W/O REAR SEAT)
sub62735-26020
main62735-95J05iLH112..4FC;LH102,112..SG..STD;LH108,118,RZH103,109,112,113,119..LHD..STD198908-199308
*TEM,T=4.0,W(SLIDE DOOR WINDOW GLASS(CLEAR,FRONT SLIDE))
sub62735-95J06
main62735-95J05iLH112..4FC;LH102,112,RZH109..SG..STD;LH118,RZH103,112,113,119..LHD..STD198908-199308
*TEM,T=4.0
sub62735-95J06
main62735-95J05iLH112..4FC;LH102,112..SG..STD;LH108,118,RZH102,109,112,113,119..LHD..STD199108-199308
*TEM,T=4.0,W/O(REAR SEAT)
sub62735-95J06
main62735-95J05iLH112..4FC;LH102,112..SG..STD;LH108,118,RZH102,109,112,113,119..LHD..STD199108-199308
*TEM,T=4.0,W(*FRS) OR W/O(REAR SEAT)
sub62735-95J06
*TT,T=4.0,NORWAY SPEC
*TEM,T=4.0,FOR HUNGARY AMBULANCE SPEC & W/O(REAR SEAT)
sub62735-26040
62736GLASS, SLIDE DOOR WINDOW, REAR LH
*FRG & W(SLIDE DOOR WINDOW GLASS(FRONT SLIDE TYPE)
*TEM,T=4.0,W(SLIDE DOOR WINDOW GLASS(CLEAR,FRONT SLIDE))
sub62736-95J10
main62736-95J09iLH112..4FC;RZH112..STD;LH102,112..06S;LH102,112..RHD;LH108,118,RZH102,109,113,119..5D198908-199308
*TEM,T=4.0
sub62736-95J10
62742AGLASS, SIDE REAR WINDOW, FRONT LH
*FRG
*FRG
SWEDEN SPEC
CANARY ISLANDS
62743AGLASS, SIDE REAR WINDOW, REAR LH
*FRG
CANARY ISLANDS
SWEDEN SPEC
*FRG
62749BSEAL, SIDE WINDOW FRAME
main62749-95J01iLH112..4FC;LH102,112..RHD;LH102,112,RZH103..SG;LH108,118,RZH102,109,11#198908-199308
W(SLIDE DOOR WINDOW GLASS(CLEAR,FRONT SLIDE))
62757CPROTECTOR, SIDE WINDOW GLASS, RH
*FRG & W(SLIDE DOOR WINDOW GLASS(CLEAR,FRONT SLIDE))
*FRG
SWEDEN SPEC
CANARY ISLANDS
62757DPROTECTOR, SIDE WINDOW GLASS
*FRG
SWEDEN SPEC
CANARY ISLANDS
62758BPROTECTOR, SIDE WINDOW GLASS, LH
*FRG & W(SLIDE DOOR WINDOW GLASS(CLEAR,FRONT SLIDE))
*FRG
SWEDEN SPEC
CANARY ISLANDS
62762KGLASS, SIDE DOOR WINDOW, FRONT LH
*TEM,T=4.0,*FRG & W(SLIDE DOOR WINDOW GLASS(CLEAR,FRONT SLIDE))
*TEM,T=4.0
main62733-95J19iRZH113..5D;LH112..4FC;LH102,112..06S;LH102,112..RHD;LH118,RZH112,119..03S198908-199508
*TEM,T=4.0
sub62733-26140
main62733-95J19iRZH113..5D;LH112..4FC;LH102,112..06S;LH102,112..RHD;LH118,RZH112,119..03S198908-199308
*TEM,T=4.0,W(SLIDE DOOR WINDOW GLASS(CLEAR,FRONT SLIDE))
sub62733-26140
62783ASASH, SIDE WINDOW, CENTER
W(SLIDE DOOR WINDOW GLASS(CLEAR,FRONT SLIDE))
62793BRETAINER, SIDE WINDOW LOCK, RH
W(*FRS)
W(SLIDE DOOR WINDOW GLASS(CLEAR,FRONT SLIDE))
62910ELOCK ASSY, SIDE WINDOW
W(SLIDE DOOR WINDOW GLASS(CLEAR,FRONT SLIDE))
W(*FRS)
67043DFRAME SUB-ASSY, SLIDE DOOR WINDOW, RH
*FRG & W(*FRS) OR W/O(REAR SEAT)
*FRG & W(SLIDE DOOR WINDOW GLASS(CLEAR,FRONT SLIDE))
*FRG & W(*FRS OR W/O REAR SEAT)
W(*FRS)
FOR HUNGARY AMBULANCE SPEC & W/O REAR SEAT
W(SLIDE DOOR WINDOW GLASS(CLEAR,FRONT SLIDE))
NORWAY SPEC
W(*FRS) OR W/O(REAR SEAT)
NORWAY SPEC OR W(*FRS) OR W/O(REAR SEAT)
W/O(REAR SEAT)
67044DFRAME SUB-ASSY, SLIDE DOOR WINDOW, LH
*FRG & W(SLIDE DOOR WINDOW GLASS(CLEAR,FRONT SLIDE))
main67044-95J01iRZH113..5D;LH112..4FC;LH102,112..06S;LH102,112..RHD;LH118,RZH112,119..03S198908-199308
W(SLIDE DOOR WINDOW GLASS(CLEAR,FRONT SLIDE))
9015740007
main90157-40007
9016440091
main90164-40091
9321984008
main93219-84008
9354084008
main93540-84008

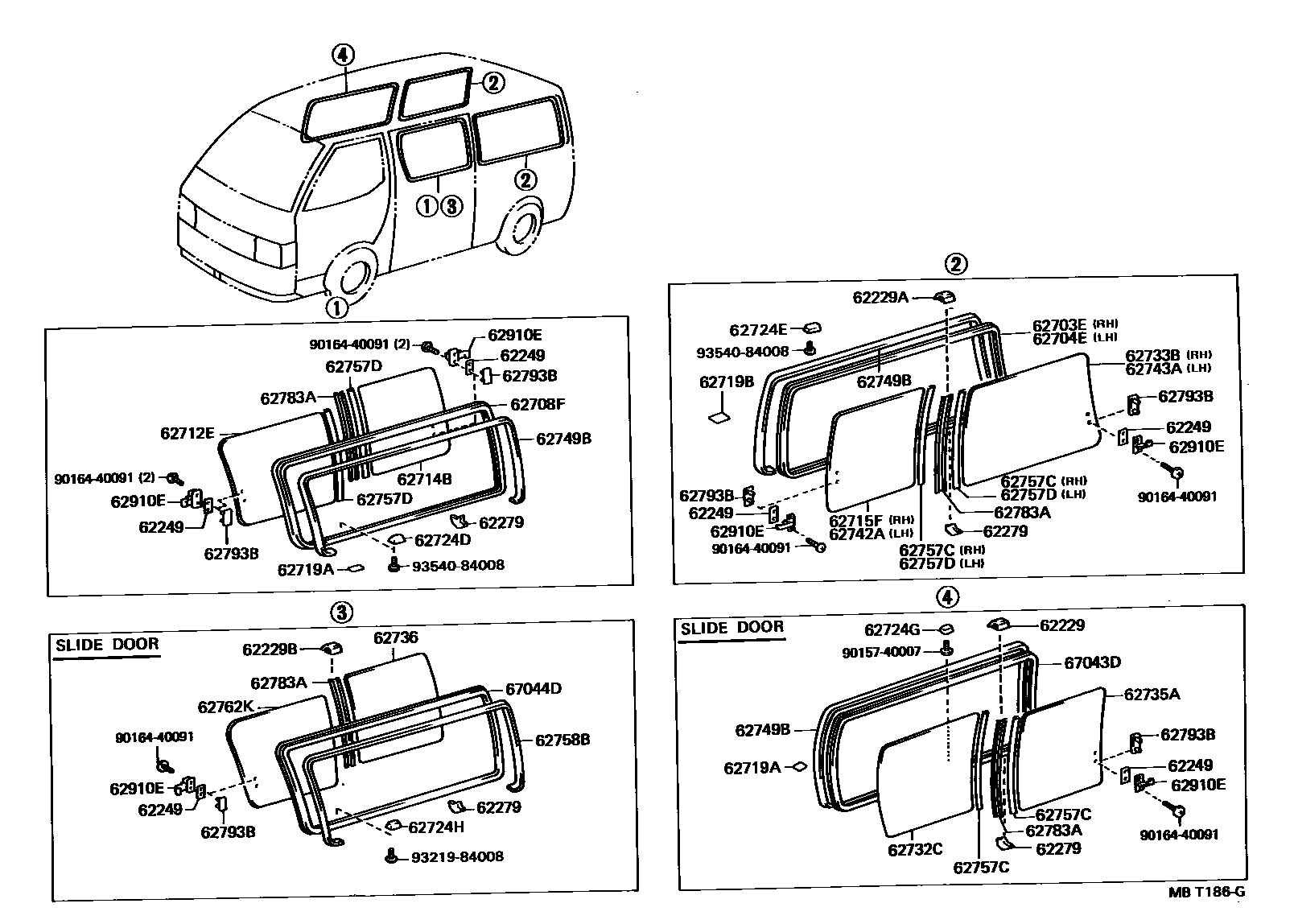

37 parts on this diagram · 2 diagrams in section
