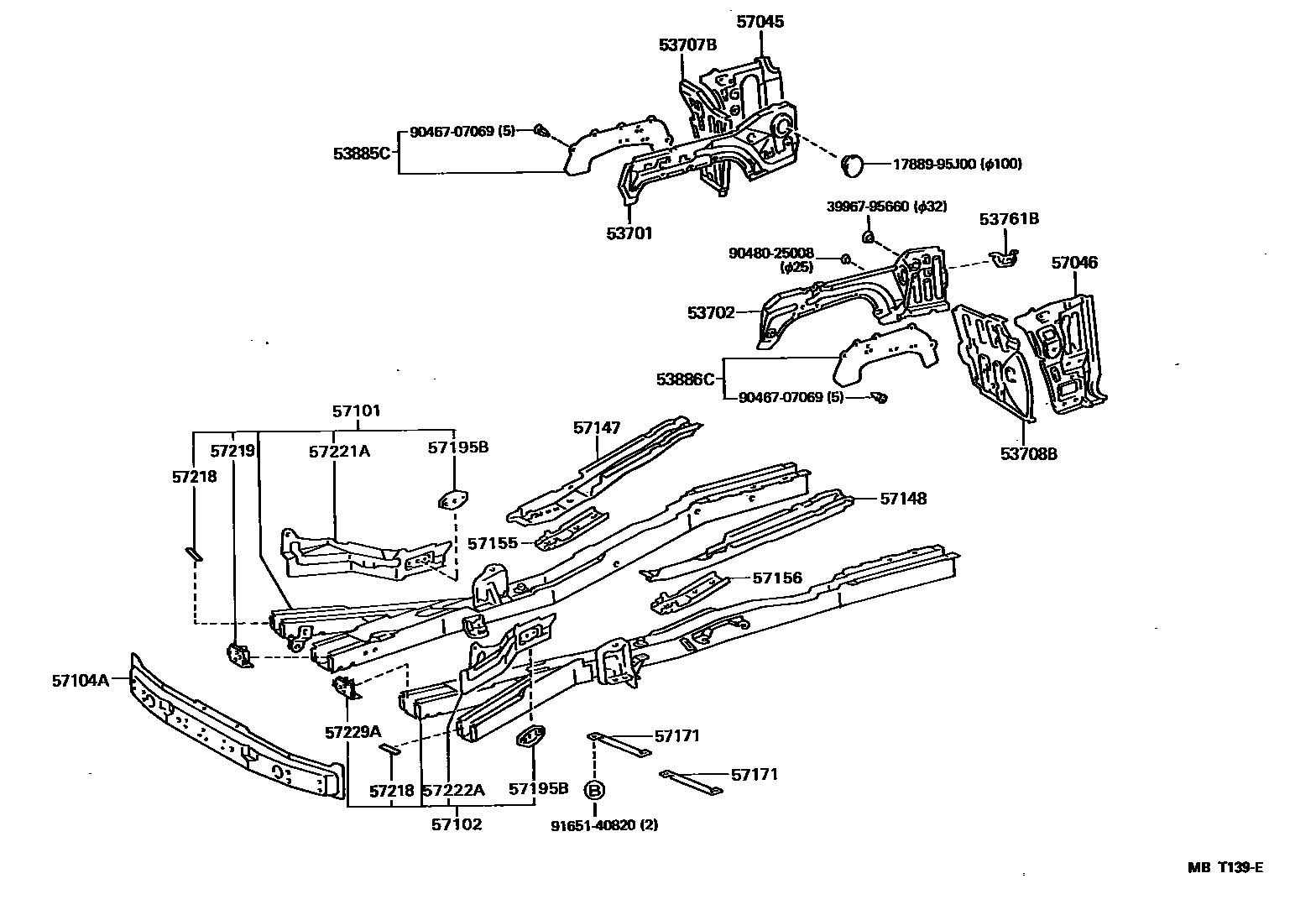

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-95J07iRZH10#,11#¥9,600198908-199508

main53701-95J09iLH10#,11#,RZH103,109,113,115,119¥9,600198910-199508

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-95J07iRZH10#,11#¥9,600198908-199508

sub53702-26050¥9,600

main53702-95J09iLH102..GL¥9,600199308-199508

main53702-95J09iLH10#,11#..DX,STD¥9,600198908-199508

W(80D26L-MF X2 BATTERY)

main53702-95J13iLH10#,11#..DX,STD¥9,600198908-199508

sub53702-95J09¥9,600

53707BAPRON SUB-ASSY, FENDER SIDE, RH

main53707-95J16iLH10#,11#,RZH10#,11#¥9,400198908-199508

sub53707-26020¥9,600

53708BAPRON SUB-ASSY, FENDER SIDE, LH

main53708-95J08iLH10#,11#¥9,400198908-199508

sub53708-26090¥9,600

main53708-95J09iRZH10#,11#¥9,400198908-199508

sub53708-26080¥9,400

53761BBRACKET, BATTERY CLAMP MOUNTING

main53761-26010iLH102,11#,RZH103,11#..5D..03S..EUR¥380199311-199508

NORWAY SPEC & W(BOARD TYPE ROOM SEPARAYTOR & SEAT HEATER)

main53761-95J02iLH10#,11#,RZH10#,11#¥390198908-199311

main53761-95J02iRZH103,109,11#;LH102,RZH102..(DX,GL)..EUR¥390199311-199508

W(80D26L-MF X2 BATTERY)

53885CSEAL, FENDER APRON MUDGUARD, RH

main53885-95J02iLH102,112,RZH102,103,112,113,115¥2,470198908-199508

main53885-95J03iLH108,118,RZH109,119¥2,470198908-199508

53886CSEAL, FENDER APRON MUDGUARD, LH

main53886-95J02iLH102,112,RZH102,103,112,113,115¥2,470198908-199508

main53886-95J03iLH108,118,RZH109,119¥2,470198908-199508

57045PLATE SUB-ASSY, FLOOR SIDE RAIL, RH

main57045-95J10iLH102,112,RZH112,113..RHD¥6,600198908-199508

sub57045-26070¥6,700

main57045-95J12iLH10#,11#,RZH10#,11#..LHD¥4,680198908-199508

sub57045-26110¥6,600

main57045-95J13iRZH102..STD;LH102,112,RZH112..LHD¥6,600199010-199308

SEVERE USAGE PACKAGE

sub57045-26120¥6,600

57046PLATE SUB-ASSY, FLOOR SIDE RAIL, LH

main57046-95J12iRZH103,109,113,115,119..LHD..4D¥6,600198908-199508

sub57046-26140¥6,600

main57046-95J15iRZH113..RHD;RZH103,109,113,119..5D¥6,600198908-199508

sub57046-26190¥6,600

main57046-95J16iLH102,11#,RZH102,112..LHD..4D¥6,600198908-199508

sub57046-26130¥6,600

main57046-95J19iRZH112..03S;LH102,112..RHD;LH10#,11#,RZH102..5D¥6,600198908-199508

sub57046-26200¥6,600

main57046-95J24iRZH102,112..5D..5F¥6,600199010-199308

SEVERE USAGE PACKAGE

sub57046-95J25¥6,600

main57046-95J26iLH102,112..5D¥6,600199010-199308

SEVERE USAGE PACKAGE & W(80D26L BATTERY)

sub57046-95J27¥6,600

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-26010iRZH102..STD;LH102,112,RZH112..LHD¥139,000199010-199308

SEVERE USAGE PACKAGE & U.S.S.R. SPEC

sub57101-26011¥145,000

main57101-26070iLH102,112,RZH102,103,113..LHD¥145,000199308-199508

sub57101-26012¥145,000

sub90105-14136¥510

sub90105-14137¥410

main57101-26080iLH102,112,RZH113..RHD¥145,000199308-199508

sub57101-26081¥145,000

sub90105-14136¥510

sub90105-14137¥410

main57101-26090iLH108,118,RZH109,119¥145,000199308-199508

sub57101-26460¥145,000

sub90105-14137¥410

main57101-95J43iLH108,118,RZH109,119¥158,000198908-199308

sub57101-26090¥145,000

main57101-95J47iLH102,112,RZH102,103,112,113,115..LHD¥139,000198908-199308

sub57101-26070¥145,000

main57101-95J49iLH102,112,RZH112..RHD¥139,000198908-199308

sub57101-26080¥145,000

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-26010iRZH102..STD;LH102,112,RZH112..LHD¥139,000199010-199308

SEVERE USAGE PACKAGE & U.S.S.R. SPEC

sub57102-26011¥145,000

main57102-26080iLH102,112,RZH102,103,113..LHD¥145,000199308-199508

sub57102-26012¥145,000

sub90105-14136¥510

sub90105-14137¥410

main57102-26090iLH102,112,RZH113..RHD¥145,000199308-199508

sub57102-26091¥145,000

sub90105-14136¥510

sub90105-14137¥410

main57102-26100iLH108,118,RZH109,119¥145,000199308-199508

sub57102-26480¥145,000

sub90105-14137¥410

main57102-95J43iLH108,118,RZH109,119¥158,000198908-199308

sub57102-26100¥145,000

main57102-95J47iLH102,112,RZH112..RHD¥139,000198908-199308

sub57102-26090¥145,000

main57102-95J49iLH102,112,RZH102,103,112,113,115..LHD¥139,000198908-199308

sub57102-26080¥145,000

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-95J06iLH10#,11#,RZH10#,11#¥19,900198908-199508

sub57104-26050¥22,700

57147PLATE, FRONT SIDE MEMBER, REAR RH

main57105-26020iLH102..03S..DX;LH102,11#,RZH10#,11#..05S,06S,09S¥8,500199003-199508

main57105-95J14iRZH109,119..STD;RZH113..5D..06S..5F;LH10#,11#,RZH102,103,112,113,115..03S,15S¥8,700198908-199508

57148PLATE, FRONT SIDE MEMBER, REAR LH

main57106-26020iRZH119..DX;RZH113..4D..SG;RZH113..06S..4FC;LH102,11#,RZH102,103,112..06S,09S¥8,500199003-199508

main57106-95J15iLH10#,11#,RZH10#,11#¥8,700198908-199508

57155REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH

main57155-26010iLH10#,11#,RZH10#,11#¥3,780199308-199508

main57155-95J02iLH10#,11#,RZH10#,11#¥3,750199305-199308

sub57155-26010¥3,780

main57155-95J03iLH10#,11#,RZH10#,11#¥3,750198908-199305

sub57155-95J02¥3,750

57156REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH

main57155-26010iLH10#,11#,RZH10#,11#¥3,780199308-199508

main57155-95J02iLH10#,11#,RZH10#,11#¥3,750199305-199308

sub57155-26010¥3,780

main57155-95J03iLH10#,11#,RZH10#,11#¥3,750198908-199305

sub57155-95J02¥3,750

57171BRACKET, CROSSMEMBER FLOOR, NO.1

main57171-95J00iLH10#,11#,RZH10#,11#¥2,710198908-199508

57195BBRACKET, SHIFT CONTROL CABLE

main57195-95J02iLH10#,11#,RZH10#,11#¥840198908-199508

57218GUSSET, FRONT SIDE MEMBER, NO.1

main57218-95J00iLH10#,11#,RZH10#,11#¥510199308-199508

57219GUSSET, FRONT SIDE MEMBER, NO.2

main57219-26020iLH10#,11#,RZH10#,11#¥2,000199308-199508

57221ABRACKET, FRONT SIDE MEMBER, RH

main57221-95J00iLH10#,11#,RZH10#,11#¥6,300198908-199508

57222ABRACKET, FRONT SIDE MEMBER, LH

main57222-95J00iLH10#,11#,RZH10#,11#¥6,300198908-199508

57229AGUSSET, FRONT SIDE MEMBER, NO.2 LH

main57229-26020iLH10#,11#,RZH10#,11#¥2,000199308-199508

1788995J00BOX, AIR CLEANER HOSE, NO.2

main17889-95J00¥1,460

3996795660

main39967-95660

9046707069

main90467-07069¥120

9048025008

main90480-25008¥590

9165140820

main91651-40820¥90

28 parts on this diagram · 2 diagrams in section
