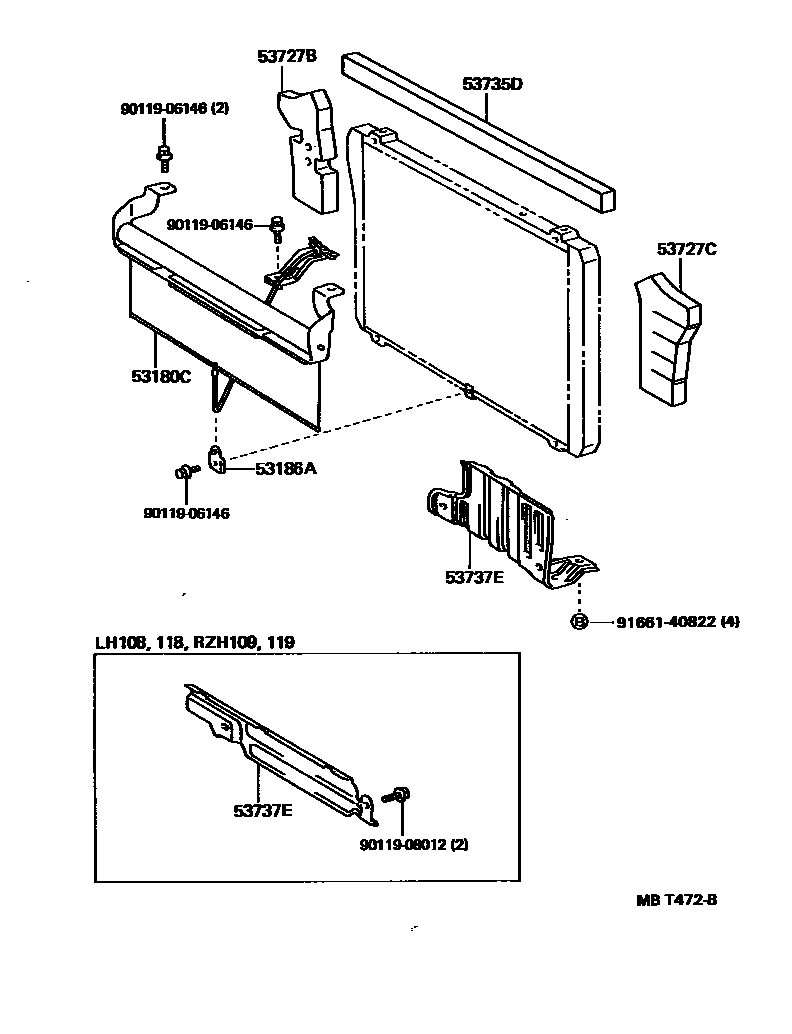

RADIATOR SUPPORT & WIND GUIDE

53180CSHUTTER ASSY, RADIATOR

main53180-95J00iRZH102..STD;LH102,112,RZH112..LHD199010-199308

U.S.S.R. SPEC

53186AHOOK, RADIATOR SHUTTER

main53186-95J00iRZH112..LHD..5F;LH102,112,RZH102..LHD199010-199308

U.S.S.R. SPEC

53727BSHUTTER, HOT AIR SIDE, RH

main53727-95J04iLH10#,11#,RZH10#,11#..(DX,STD)..(EUR,FRG)198908-199508

COLD SPEC

main53727-95J04iRZH113..SDN;LH102,RZH103..GL199308-199508

53727CSHUTTER, HOT AIR SIDE, LH

main53728-95J02iLH10#,11#,RZH10#,11#..(DX,STD)..(EUR,FRG)198908-199508

COLD SPEC

53735DSHUTTER, HOT AIR, UPPER

main53735-95J02iLH10#,11#,RZH10#,11#198908-199308

main53735-95J03iRZH102..STD;LH102,112,RZH112..LHD199010-199308

U.S.S.R. SPEC

main53735-95J03iLH10#,11#,RZH10#,11#199308-199508

53737ESHUTTER, HOT AIR, LOWER

main53737-26070iLH102,112,RZH113..RHD199408-199508

main53737-26080iLH102,112,RZH102,103,113..LHD199408-199508

main53737-95J02iLH102,112,RZH112,113..RHD198908-199408

main53737-95J03iLH102,112,RZH102,103,112,113,115..LHD198908-199408

main53737-95J04iLH108,118,RZH109,119198908-199508

9011906146

main90119-06146

9011908012

main90119-08012

9166140822

main91661-40822

9 parts on this diagram · 1 diagram in section
