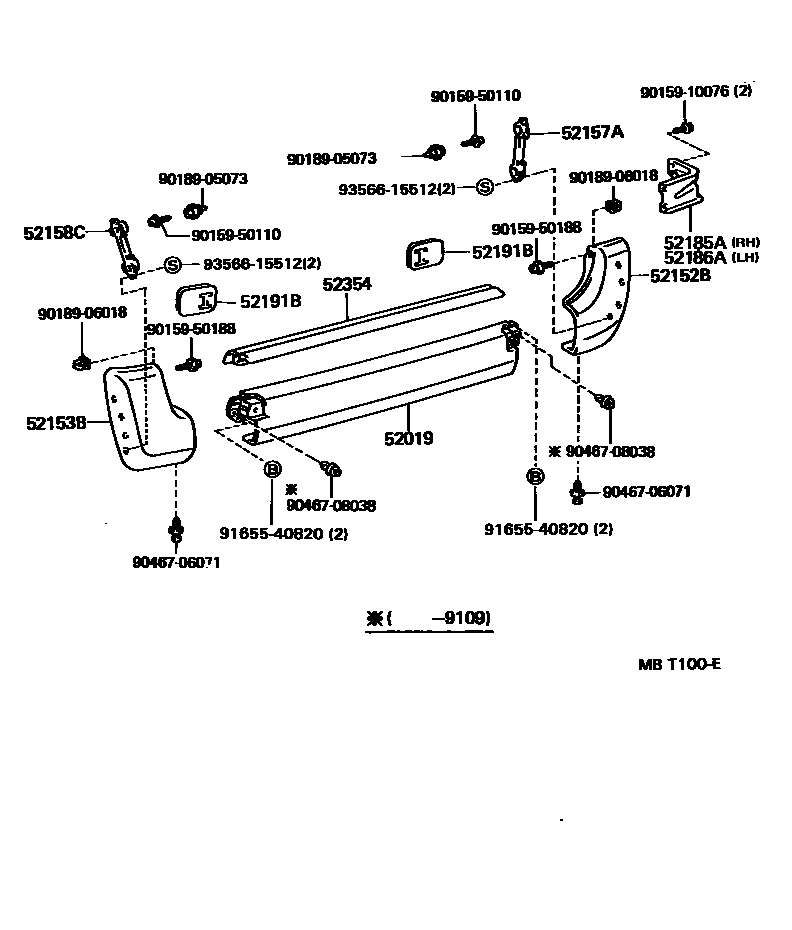

REAR BUMPER & BUMPER STAY

0001 1 0002 1W(STEP) 0003 1SWEDEN SPEC,AUSTRIA SPEC,*FRG0004 1NORWAY SPEC 0006 1 0008 1CZECHOSLOVAKIA SPEC 0009 1W(STEP)

52019BAR SUB-ASSY, REAR BUMPER

main52019-95J31iLH102..DX199206-199308

U.S.S.R. SPEC

main52019-95J31iLH10#,118,RZH109,115..STD;LH112,RZH102,103,112,113,119198908-199308

main52019-95J31iRZH102;LH112,RZH113..RHD;LH102,RZH103..LHD..4D..SP;LH11#,RZH11#..5D..03S..(EUR,FRG)199308-199508

W(*DSBD)

main52019-95J32iRZH102..DX199108-199308

STEEL TYPE & W(WEIGHT)

main52019-95J32iRZH103..DX199108-199308

*FRG

main52019-95J32iRZH113..5D..03S198908-199308

SWEDEN SPEC

main52019-95J32iLH102,118..DX;RZH103..DX..FRG;RZH113..STD..SDN198908-199508

main52019-95J32iRZH102..DX198908-199108

*FRG & W(*FRS) OR *FRG & W/O REAR SEAT

main52019-95J32iLH112..DX198908-199308

AUSTRIA SPEC

52152BEXTENSION, REAR BUMPER, RH

main52165-95J01iLH10#,11#,RZH10#,11#198908-199508

main52165-95J02iLH112,RZH113..RHD;LH102,RZH103..LHD..4D..SP;LH11#,RZH11#..5D..03S..(EUR,FRG)199001-199508

W(*DSBD)

52153BEXTENSION, REAR BUMPER, LH

main52166-95J01iLH10#,11#,RZH10#,11#198908-199508

main52166-95J02iRZH113..STD..SDN199001-199508

W(*DSBD)

52157ASUPPORT, REAR BUMPER SIDE, NO.2 RH

main52157-95J00iLH10#,11#,RZH10#,11#198908-199508

main52157-95J00iLH112,RZH113..RHD;LH102,RZH103..LHD..4D..SP;LH11#,RZH11#..5D..03S..(EUR,FRG)199405-199508

W(COLORED & STEP TYPE REAR BUMPER)

main52157-95J01iLH112,RZH113..RHD;LH112,RZH113..5D..03S;LH118,RZH112,119..03S;LH102,RZH102,103..LHD..4D..SP199001-199508

W(*DSBD)

52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH

main52158-95J00iLH112,RZH113..RHD;LH102,RZH103..LHD..4D..SP;LH11#,RZH11#..5D..03S..(EUR,FRG)199405-199508

W(COLORED & STEP TYPE REAR BUMPER)

main52158-95J00iLH10#,11#,RZH10#,11#198908-199508

main52158-95J01iLH112,RZH113..RHD;LH112,RZH113..5D..03S;LH118,RZH112,119..03S;LH102,RZH102,103..LHD..4D..SP199001-199508

W(*DSBD)

52185ABRACKET, REAR BUMPER SIDE, RH

main52185-95J02iLH112,RZH113..RHD;LH112,RZH113..5D..03S;LH118,RZH112,119..03S;LH102,RZH102,103..LHD..4D..SP199001-199508

52186ABRACKET, REAR BUMPER SIDE, LH

main52186-95J02iLH112,RZH113..RHD;LH112,RZH113..5D..03S;LH118,RZH112,119..03S;LH102,RZH102,103..LHD..4D..SP199001-199508

52191BGROMMET, REAR BUMPER STAY

main52191-95J00iLH10#,11#,RZH10#,11#198908-199508

52354SHUTTER, REAR CROSS TO BUMPER

main52353-26010iRZH102..DX199011-199012

NORWAY SPEC,RH

sub52353-26020

main52353-26020iLH102,112,RZH103,109,11#..(DX,GL)..(EUR,SDN)199308-199508

CZECHOSLOVAKIA SPEC,RH

main52353-26020iLH102,112,RZH103,109,11#..(DX,GL)..(EUR,SDN)199308-199508

RH

main52353-26020iRZH102..DX199012-199308

NORWAY SPEC,RH

main52354-26010iRZH102..DX199011-199012

NORWAY SPEC,LH

sub52354-26020

main52354-26020iLH102,112,RZH103,109,11#..(DX,GL)..(EUR,SDN)199308-199508

CZECHOSLOVAKIA SPEC,LH

sub52354-26021

main52354-26020iRZH102..DX199012-199308

NORWAY SPEC,LH

sub52354-26021

main52354-26020iLH102,112,RZH103,109,11#..(DX,GL)..(EUR,SDN)199308-199508

LH

sub52354-26021

main52354-95J02iLH10#,11#,RZH10#,112,113,119..STD198908-199010

W(STEP REAR BUMPER)

main52354-95J03iLH102..DX199206-199308

U.S.S.R. SPEC

main52354-95J03iLH10#,118,RZH109,115..STD;LH112,RZH102,103,112,113,119198908-199308

main52354-95J03iRZH113..STD..SDN199308-199508

W(*DSBD)

main52354-95J04iRZH102..DX198908-199011

NORWAY SPEC

main52354-95J05iRZH102..DX199108-199308

*FRG

main52354-95J05iRZH102..DX199108-199308

STEEL TYPE & W(WEIGHT)

main52354-95J05iRZH113..5D..03S198908-199308

SWEDEN SPEC

main52354-95J05iLH102,118..DX;RZH103..DX..FRG;RZH113..STD..SDN198908-199508

main52354-95J05iLH112..DX198908-199308

AUSTRIA SPEC

main52354-95J05iRZH102..DX198908-199108

*FRG & W(*FRS) OR *FRG & W/O REAR SEAT

9015910076

main90159-10076

9015950110

main90159-50110

9015950188

main90159-50188

9018905073

main90189-05073

9018906018

main90189-06018

9046706071

main90467-06071

9046708038

main90467-08038

9165540820

main91655-40820

9356615512

main93566-15512

18 parts on this diagram · 7 diagrams in section
