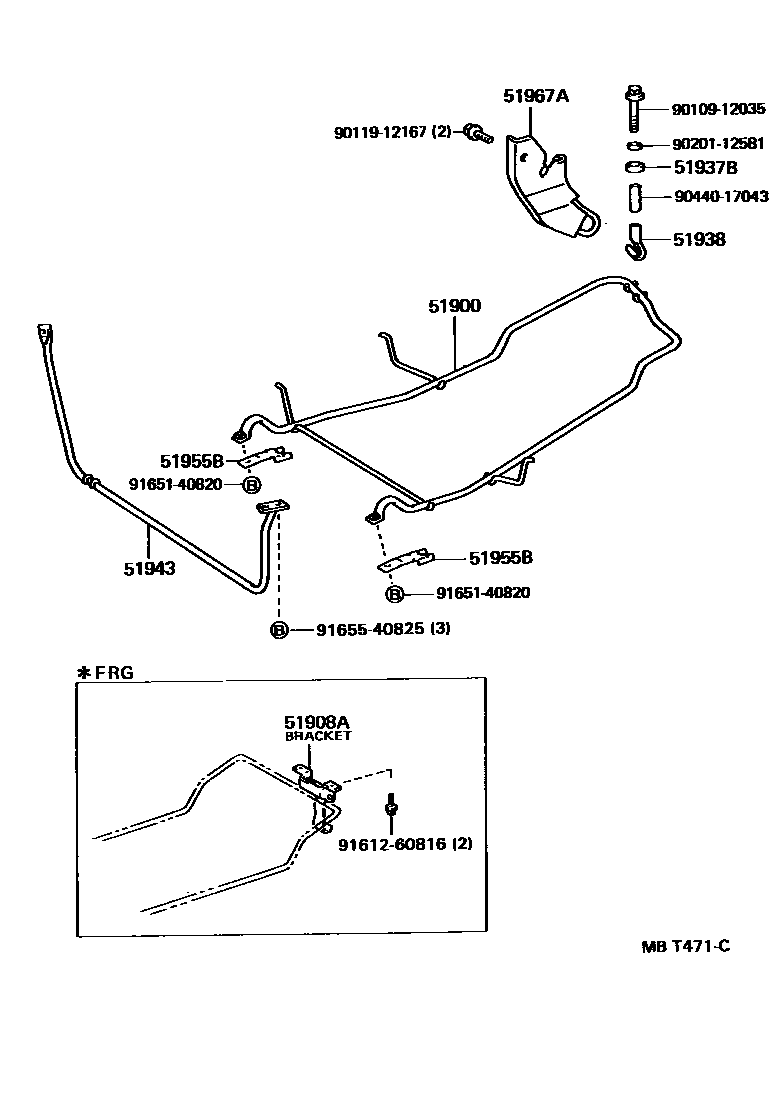

SPARE WHEEL CARRIER

51900CARRIER ASSY, SPARE WHEEL

main51903-26360iRZH113..06S198908-199308

W(185R14C-16 TIRE)

main51903-26360iRZH102;LH102,112..STD199308-199508

main51903-26380iRZH103,113;LH102,112..DX,GL199308-199508

W(195/70R15C TIRE)

main51903-26380iRZH112,113,115..SG..STD198908-199308

W(195/75R14C TIRE)

main51903-26410iLH108,118,RZH109,119198908-199508

51908ABRACKET SUB-ASSY, SPARE WHEEL MOUNTING

main51908-26010iRZH102;LH102..DX;RZH103..5D;LH102,112..LHD..SP..5F198908-199308

*FRG

main51908-26010iLH102,RZH103..DX..FRG199308-199508

W(*DSBD)

main51908-26050iRZH103..5D;LH102,112,RZH102..LHD..SP..5F198908-199308

*FRG & W(STEP TYPE REAR BUMPER)

main51908-26050iLH102,112,RZH103..STD..FRG199308-199508

51937BPLATE, SPARE WHEEL CARRIER LOCK

main51937-26010iLH10#,11#,RZH10#,11#198908-199508

51938LOCK, SPARE WHEEL CARRIER

main51938-26040iLH10#,11#,RZH10#,11#199302-199508

main51938-28030iLH10#,11#,RZH10#,11#198908-199302

51943BRACKET, SPARE WHEEL CARRIER, NO.1

main51943-26120iLH10#,11#,RZH10#,11#198908-199508

51955BHINGE, SPARE WHEEL CARRIER, NO.1

main51955-26040iLH10#,11#,RZH10#,11#198908-199508

51967AHOOK SUB-ASSY, REAR

main51095-95J00iRZH102;LH102..DX;LH102,112..LHD..SP..5F198908-199308

*FRG

main51095-95J00iLH102,112,RZH103..FRG199308-199508

9010912035

main90109-12035

9011912167

main90119-12167

9020112581

main90201-12581

9044017043

main90440-17043

9161260816

main91612-60816

9165140820

main91651-40820

9165540825

main91655-40825

14 parts on this diagram · 1 diagram in section
