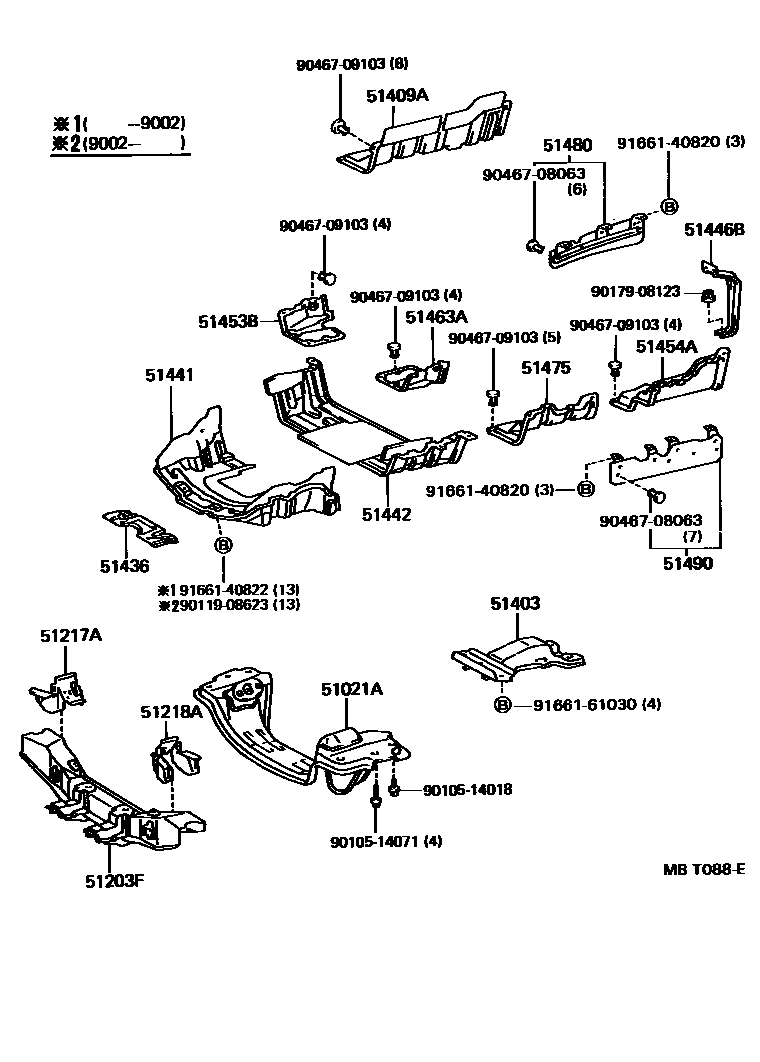

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1 0003 1 0004 1 0005 1

51021AMEMBER SUB-ASSY, ENGINE FRONT SUPPORT

main51021-95J08iLH102,112198908-199508

main51021-95J09iRZH102,103,112,113,115198908-199508

main51021-95J10iLH108,118198908-199508

main51021-95J11iRZH109,119198908-199508

51203FCROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51203-26160iLH102,112,RZH113..RHD199308-199508

main51203-26200iLH108,118,RZH109,119199308-199508

main51203-26210iLH102,112,RZH102,103,113..LHD199308-199508

main51203-95J06iLH102,112,RZH102,103,112,113,115..LHD198908-199308

sub51203-95J07

main51203-95J09iLH102,112,RZH112..RHD198908-199308

sub51203-95J08

main51203-95J10iLH108,118,RZH109,119198908-199308

51217AREINFORCEMENT, FRONT SUSPENSION MEMBER, RH

main51217-26060iLH102,112,RZH102,103,113199308-199508

main51217-95J03iLH102,112,RZH102,103,112,113,115198908-199308

sub51217-95J02

51218AREINFORCEMENT, FRONT SUSPENSION MEMBER, LH

main51218-95J02iLH102,112,RZH102,103,113199308-199508

main51218-95J03iLH102,112,RZH102,103,112,113,115198908-199308

sub51218-95J02

51403BRACKET SUB-ASSY, ENGINE REAR MOUNTING

main51403-95J00iRZH112,113..5F;LH102,112,RZH102,103,115198908-199508

main51403-95J01iRZH112,113..4FC198908-199508

main51403-95J02iLH108,118198908-199508

main51403-95J03iRZH109,119198908-199508

51409ACOVER SUB-ASSY, ENGINE UNDER, NO.4

main51409-26030iLH102,112..DX,GL199308-199508

main51409-26040iLH118..DX199308-199508

main51409-26050iRZH103,109,11#..DX,GL199308-199508

main51409-95J03iRZH103,113,119..DX198908-199308

main51409-95J04iLH102,112..DX198908-199308

main51409-95J05iLH118..DX198908-199308

51436PROTECTOR, ENGINE FRONT SUPPORT

main51436-26070iLH102,112,RZH103,113..DX,GL199308-199508

main51436-95J00iLH102,112,RZH103,113..DX198908-199308

51441COVER, ENGINE UNDER, NO.1

main51405-26020iLH102,112..DX,GL199308-199508

main51405-26030iLH118..DX199308-199508

sub51405-26130

sub90119-08300

main51405-26040iRZH109,119..DX199308-199508

main51405-95J03iRZH103,113..DX,GL198908-199508

main51405-95J04iLH102,112..DX198908-199308

main51405-95J05iLH118..DX198908-199308

main51405-95J06iRZH119..DX198908-199308

51442COVER, ENGINE UNDER, NO.2

main51406-26020iLH102,112,RZH103,113..DX,GL199308-199508

sub51406-26110

main51406-26030iLH118..DX199308-199508

sub51406-26120

main51406-26040iRZH109,119..DX199308-199508

main51406-95J02iLH102,112,RZH103,113..DX198908-199308

main51406-95J03iLH118..DX198908-199308

main51406-95J04iRZH119..DX198908-199308

51446BBRACKET, ENGINE UNDER COVER, NO.2

main51446-26030iLH102,11#..DX,GL199308-199508

main51446-95J03iLH102,11#..DX198908-199308

51453BSILENCER, ENGINE UNDER COVER, RH

main51453-95J01iLH102,112,RZH103,113..DX198908-199308

main51453-95J02iLH118,RZH119..DX198908-199308

51454ASILENCER, ENGINE REAR COVER

main51454-95J02iLH102,112..DX198908-199308

main51454-95J03iLH118..DX198908-199308

51463ASILENCER, ENGINE UNDER COVER, FRONT, LH

main51463-95J00iLH102,112,RZH103,113..DX198908-199308

main51463-95J01iLH118,RZH119..DX198908-199308

51475SILENCER, ENGINE UNDER COVER, NO.5

main51475-95J01iLH102,11#,RZH103,113,119..DX198908-199308

51480SHUTTER ASSY, ENGINE REAR SIDE, RH

main51480-95J00iLH102,11#..DX,GL198908-199508

51490SHUTTER ASSY, ENGINE REAR SIDE, LH

main51490-95J00iLH102,11#..DX198908-199308

9010514018

main90105-14018

9010514071

main90105-14071

9011908623

main90119-08623

9017908123

main90179-08123

9046708063

main90467-08063

9046709103

main90467-09103

9166140820

main91661-40820

9166140822

main91661-40822

9166161030

main91661-61030

25 parts on this diagram · 5 diagrams in section
