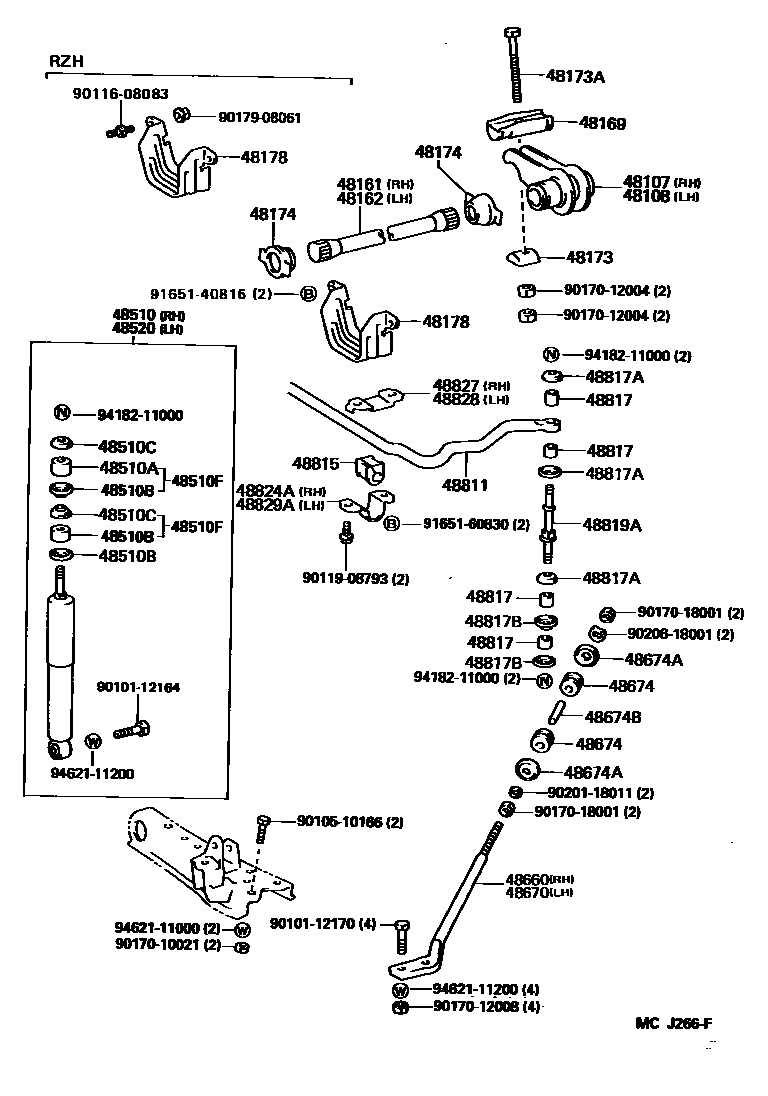

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

48107ARM SUB-ASSY, ANCHOR, RH

main48107-26050iLH10#,11#,RZH10#,11#198908-199508

48108ARM SUB-ASSY, ANCHOR, LH

main48108-26050iLH10#,11#,RZH10#,11#198908-199508

48161SPRING, TORSION BAR, RH

main48161-26160iLH108,118,RZH109,119198908-199308

main48161-26200iLH102,112,RZH102,103,112,113,115198908-199508

main48161-26290iLH108,118,RZH109,119199308-199508

48162SPRING, TORSION BAR, LH

main48162-26160iLH108,118,RZH109,119198908-199308

main48162-26200iLH102,112,RZH102,103,112,113,115198908-199508

main48162-26290iLH108,118,RZH109,119199308-199508

48169SWIVEL, ANCHOR ARM

main48169-26030iLH108,118,RZH109,119198908-199508

main48169-26050iLH102,112,RZH102,103,112,113,115198908-199508

48173SEAT, ANCHOR ARM ADJUSTER

main48173-27010iLH10#,11#,RZH10#,11#198908-199508

48173ABOLT, HEXAGON(FOR ANCHOR ARM ADJUSTING)

main90101-12091iLH108,118,RZH109,119198908-199508

RH

main90101-12165iLH108,118,RZH109,119198908-199508

LH

48174COVER, TORSION BAR DUST

main48174-26010iLH108,118,RZH109,119198908-199508

48178PROTECTOR, TORSION BAR DUST COVER, RH

main48178-26030iLH10#,11#,RZH10#,11#198908-199508

48510ABSORBER ASSY, SHOCK, FRONT RH

main48511-29525iLH102,112,RZH102,103,112,113,115198908-199205

MARK 48511-26240

sub48511-29526

main48511-29526iLH102,112,RZH102,103,112,113199205-199508

MARK 48511-26241

sub48511-29527

main48511-29595iLH108,118,RZH109,119198908-199508

MARK 48511-26200

sub48511-29596

48510ACUSHION, FRONT SHOCK ABSORBER

main90948-01003iLH10#,11#,RZH10#,11#198908-199308

main90948-01031iLH108,118,RZH109,119199308-199508

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-01035iLH108,118,RZH109,119198908-199308

sub90948-01031

sub90948-02017

main90948-02017iLH108,118,RZH109,119199308-199508

48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

main90948-02002iLH10#,11#,RZH10#,11#198908-199508

48510FCUSHION, SHOCK ABSORBER

main90948-01035iLH108,118,RZH109,119199308-199508

sub90948-01031

sub90948-02017

48520ABSORBER ASSY, SHOCK, FRONT LH

main48511-29525iLH102,112,RZH102,103,112,113,115198908-199205

MARK 48511-26240

sub48511-29526

main48511-29526iLH102,112,RZH102,103,112,113199205-199508

MARK 48511-26241

sub48511-29527

main48511-29595iLH108,118,RZH109,119198908-199508

MARK 48511-26200

sub48511-29596

48660BAR ASSY, STRUT, RH

main48661-26020iLH102,112,RZH102,103,112,113,115198908-199508

48670BAR ASSY, STRUT, LH

main48661-26020iLH102,112,RZH102,103,112,113,115198908-199508

48674CUSHION, STRUT BAR

main48674-26021iLH102,112,RZH102,103,113199312-199508

main48674-26030iLH102,112,RZH102,103,112,113,115198908-199312

48674ARETAINER, CUSHION(FOR STRUT BAR CUSHION)

main90948-02062iLH102,112,RZH102,103,112,113,115198908-199508

48674BCOLLAR(FOR STRUT BAR CUSHION)

main90387-18005iLH102,112,RZH102,103,112,113,115198908-199508

48811BAR, STABILIZER, FRONT

main48811-26150iLH102,112,RZH102,103,112,113,115198908-199508

main48811-26180iLH108,118,RZH109,119198908-199508

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-26050iLH108,118,RZH109,119198908-199508

main48815-26060iLH102,112,RZH102,103,112,113,115198908-199508

48817CUSHION, FRONT STABILIZER

main90948-01002iLH102,112,RZH102,103,112,113,115198908-199508

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02004iLH10#,11#,RZH10#,11#198908-199508

48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

main90948-02005iLH108,118,RZH109,119198908-199508

48819ABOLT, FRONT STABILIZER

main48819-26040iLH108,118,RZH109,119198908-199508

main48819-26050iLH102,112,RZH102,103,112,113,115198908-199508

48824BRACKET, STABILIZER, FRONT

main48824-26090iLH108,118,RZH109,119198908-199508

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-26110iLH102,112,RZH102,103,112,113,115198908-199508

48827BRACKET, FRONT STABILIZER, NO.2 RH

main48827-26020iLH102,112,RZH102,103,112,113,115198908-199508

48828BRACKET, FRONT STABILIZER, NO.2 LH

main48828-26020iLH102,112,RZH102,103,112,113,115198908-199508

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48829-26080iLH102,112,RZH102,103,112,113,115198908-199508

9010112164

main90101-12164

9010112170

main90101-12170

9010510166

main90105-10166

9011608083

main90116-08083

9011908793

main90119-08793

9017010021

main90170-10021

9017012004

main90170-12004

9017012008

main90170-12008

9017018001

main90170-18001

9017908061

main90179-08061

9020118011

main90201-18011

9020618001

main90206-18001

9165140816

main91651-40816

9165160830

main91651-60830

9418211000

main94182-11000

9462111000

main94621-11000

9462111200

main94621-11200

48 parts on this diagram · 2 diagrams in section
