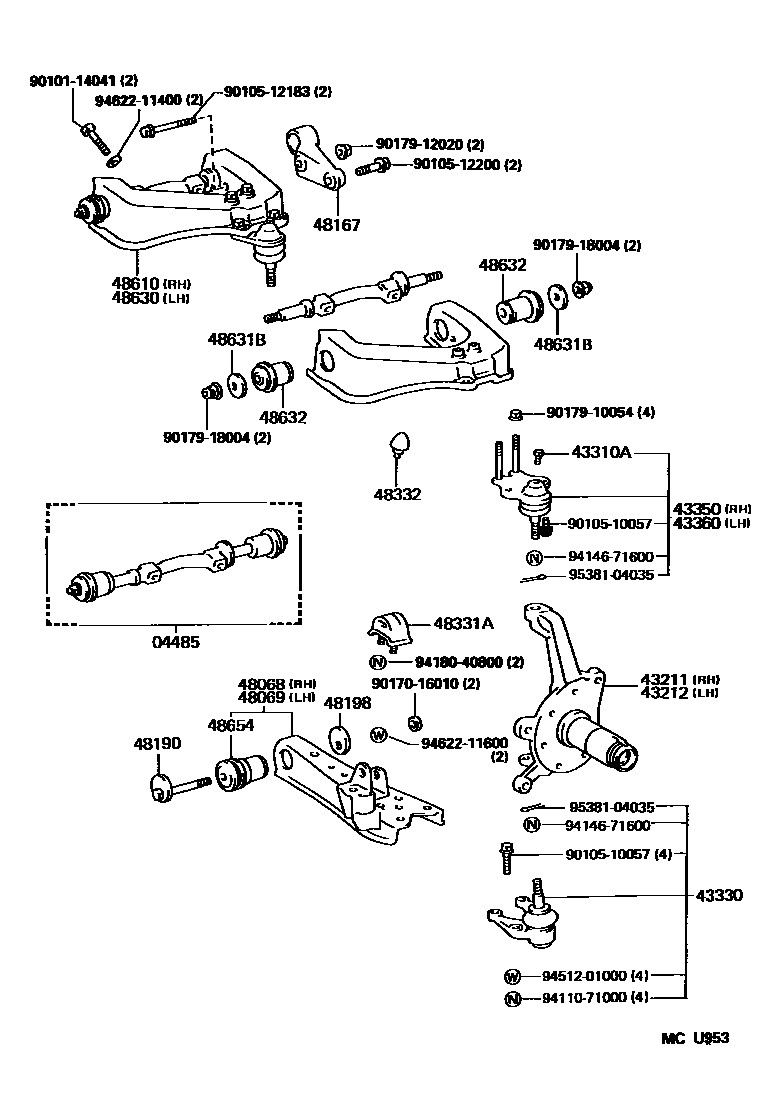

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1

04485SHAFT KIT, UPPER SUSPENSION ARM

main04485-26050iLH102,112,RZH102,103,112,113,115198908-199508

sub04485-26120

43211KNUCKLE, STEERING, RH

main43201-26010iLH108,118,RZH109,119198908-199308

sub43201-26030

main43201-26030iLH108,118,RZH109,119199308-199508

sub43201-26031

sub90304-76005

main43211-26051iLH102,112,RZH102,103,112,113,115198908-199508

main43211-26090iLH102,112..STD199308-199508

W(SILVER WHEEL)

sub43211-26120

43212KNUCKLE, STEERING, LH

main43202-26010iLH108,118,RZH109,119198908-199308

sub43202-26030

main43202-26030iLH108,118,RZH109,119199308-199508

sub43202-26031

sub90304-76005

main43212-26021iLH102,112,RZH102,103,112,113,115198908-199508

main43212-26060iRZH103,113;LH102,112..DX,GL199308-199508

W(SILVER WHEEL)

sub43212-26090

43310APLUG (FOR BALL JOINT)

main90345-06014iLH10#,11#,RZH10#,11#198908-199508

43330JOINT ASSY, LOWER BALL, FRONT

main43330-29155iLH102,112,RZH102,103,112,113,115198908-199308

sub43330-29535

main43330-29215iLH108,118,RZH109,119198908-199308

main43330-29295iLH102,112,RZH102,103,113199308-199508

sub43330-29515

main43330-29305iLH108,118,RZH109,119199308-199508

43350JOINT ASSY, FRONT UPPER BALL, RH

main43350-29065iLH102,112,RZH102,103,112,113,115198908-199308

sub43350-29095

main43350-29095iLH102,112,RZH102,103,113199308-199508

43360JOINT ASSY, FRONT UPPER BALL, LH

main43350-29065iLH102,112,RZH102,103,112,113,115198908-199308

sub43350-29095

main43350-29095iLH102,112,RZH102,103,113199308-199508

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-26050iLH102,112,RZH102,103,112,113,115198908-199308

sub48068-26090

main48068-26060iLH108,118,RZH109,119198908-199308

sub48068-26061

main48068-26061iLH108,118,RZH109,119199308-199505

sub48068-26062

main48068-26062iLH108,118,RZH109,119199505-199508

main48068-26090iLH102,112,RZH102,103,113199308-199508

sub48068-26151

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-26050iLH102,112,RZH102,103,112,113,115198908-199308

sub48069-26090

main48069-26060iLH108,118,RZH109,119198908-199308

sub48069-26061

main48069-26061iLH108,118,RZH109,119199308-199505

sub48069-26062

main48069-26062iLH108,118,RZH109,119199505-199508

main48069-26090iLH102,112,RZH102,103,113199308-199508

sub48069-26151

48167ARM, TORQUE

main48106-26020iLH108,118,RZH109,119198908-199508

sub48106-25020

main48106-26040iLH102,112,RZH102,103,112,113,115198908-199508

48190CAM ASSY, CAMBER ADJUST

main48190-26020iLH102,112,RZH102,103,112,113,115198908-199508

48198CAM, CAMBER ADJUST, NO.2

main48198-26010iLH102,112,RZH102,103,112,113,115198908-199508

48331ABUMPER, FRONT SPRING, NO.1

main48331-26051iLH108,118,RZH109,119198908-199508

main48331-26090iLH102,112,RZH102,103,112,113,115198908-199308

main48331-26091iLH102,112,RZH102,103,113199308-199508

48332BUMPER, FRONT SPRING, NO.2

main48332-35020iLH10#,11#,RZH10#,11#198908-199508

48610ARM ASSY, FRONT SUSPENSION UPPER, RH

main48610-29015iLH102,112,RZH102,103,112,113,115198908-199308

sub48610-29085

main48610-29085iLH102,112,RZH102,103,113199308-199508

48630ARM ASSY, FRONT SUSPENSION, UPPER LH

main48630-29015iLH102,112,RZH102,103,112,113,115198908-199308

sub48630-29075

main48630-29075iLH102,112,RZH102,103,113199308-199508

48631BRETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM)

main90948-02142iLH102,112,RZH102,103,112,113,115198908-199508

RR

main90948-02143iLH102,112,RZH102,103,112,113,115198908-199508

FR

48632BUSH, UPPER ARM

main48632-26010iLH102,112,RZH102,103,112,113,115198908-199508

FR

main48635-26010iLH102,112,RZH102,103,112,113,115198908-199508

RR

48654BUSH, LOWER ARM

main48061-26030iLH102,112,RZH102,103,112,113,115198908-199508

main48061-26031iLH10#,11#,RZH10#,11#199204-199308

main48061-26040iLH108,118,RZH109,119199505-199508

main48061-35011iLH108,118,RZH109,119198908-199505

9010114041

main90101-14041

9010510057

main90105-10057

9010512183

main90105-12183

9010512200

main90105-12200

9017016010

main90170-16010

9017910054

main90179-10054

9017912020

main90179-12020

9017918004

main90179-18004

9411071000

main94110-71000

9414671600

main94146-71600

9418040800

main94180-40800

9451201000

main94512-01000

9462211400

main94622-11400

9462211600

main94622-11600

9538104035

main95381-04035

34 parts on this diagram · 2 diagrams in section
