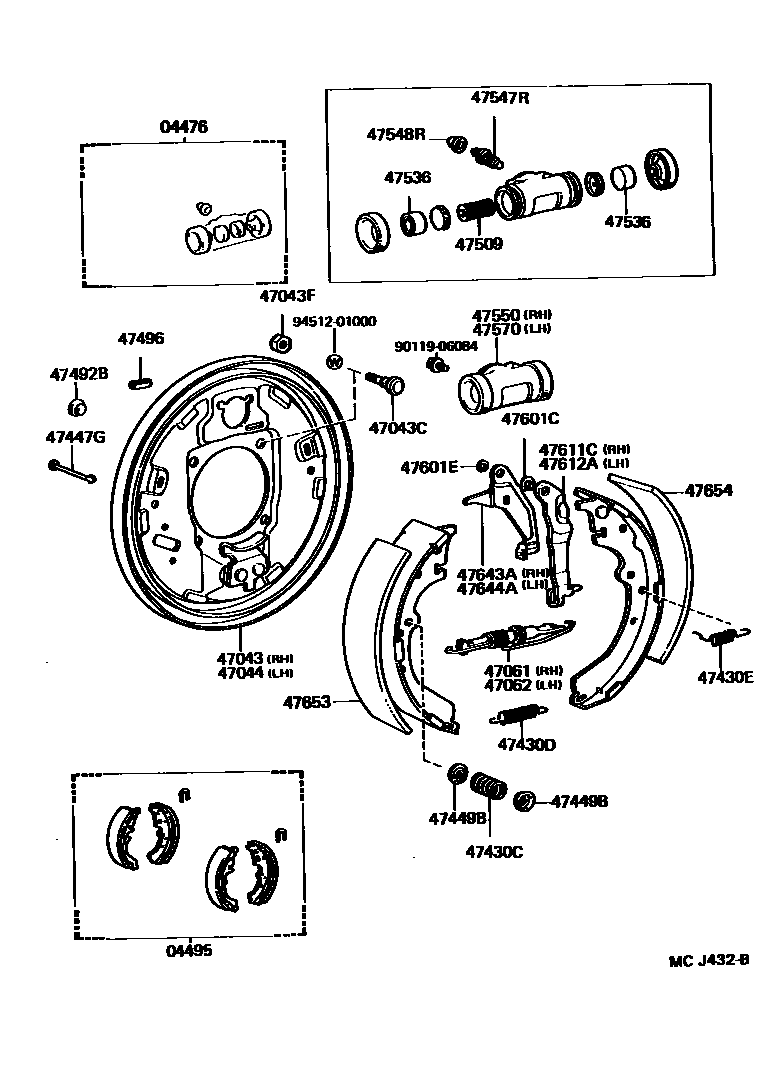

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1 0003 1

04476CUP KIT, REAR WHEEL CYLINDER

04495SHOE KIT, REAR BRAKE

main04495-26130iLH102,112,RZH112..RHD198908-199308

main04495-26150iLH102,112,RZH102,103,112,113,115..LHD198908-199308

main04495-26180iLH102,112,RZH113..RHD199308-199508

MARK NBK LN508

main04495-26190iLH102,112,RZH102,103,113..LHD199308-199508

MARK NBK LN508

main04495-35151iLH108,118,RZH109,119198908-199508

MARK NBK LN508

sub04495-35230

main04497-26080iLH102,112,RZH112..RHD198908-199308

REBUILT

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-26070iLH108,118,RZH109,119198908-199101

sub47043-26071

sub47492-28010

main47043-26071iLH108,118,RZH109,119199101-199508

main47043-26090iLH102,112,RZH112..RHD198908-199101

sub47043-26091

sub47492-28010

main47043-26091iLH102,112,RZH112..RHD199101-199308

main47043-26100iLH102,112,RZH102,103,112,113,115..LHD198908-199101

sub47043-26101

sub47492-28010

main47043-26101iLH102,112,RZH102,103,112,113,115..LHD199101-199308

main47043-26120iLH102,112,RZH113..RHD199308-199508

main47043-26130iLH102,112,RZH102,103,113..LHD199308-199508

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90114-10002iLH10#,11#,RZH10#,11#198908-199508

*10-1.25PX37-18.5

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90179-10041iLH10#,11#,RZH10#,11#198908-199508

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-26070iLH108,118,RZH109,119198908-199101

sub47044-26071

sub47492-28010

main47044-26071iLH108,118,RZH109,119199101-199508

main47044-26090iLH102,112,RZH112..RHD198908-199101

sub47044-26091

sub47492-28010

main47044-26091iLH102,112,RZH112..RHD199101-199308

main47044-26100iLH102,112,RZH102,103,112,113,115..LHD198908-199101

sub47044-26101

sub47492-28010

main47044-26101iLH102,112,RZH102,103,112,113..LHD199101-199308

main47044-26120iLH102,112,RZH113..RHD199308-199508

main47044-26130iLH102,112,RZH102,103,113..LHD199308-199508

47061STRUT SET, PARKING BRAKE SHOE, RH

main47061-35020iLH102,112,RZH102,103,112,113,115198908-199508

main47061-60011iLH108,118,RZH109,119198908-199508

47062STRUT SET, PARKING BRAKE SHOE, LH

main47062-35020iLH102,112,RZH102,103,112,113,115198908-199508

main47062-60011iLH108,118,RZH109,119198908-199508

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20012iLH102,112,RZH102,103,112,113198908-199508

main90501-20604iLH108,118,RZH109,119198908-199508

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-18031iLH108,118,RZH109,119198908-199508

main90506-18299iLH102,112,RZH102,103,113199308-199508

main90506-26021iLH102,112,RZH102,103,112,113,115198908-199308

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-26011iLH108,118,RZH109,119198908-199508

RH

main90506-26014iLH108,118,RZH109,119198908-199508

LH

main90507-12036iLH102,112,RZH102,103,112,113,115198908-199508

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-20010iLH102,112,RZH102,103,112,113,115198908-199508

main47447-30020iLH108,118,RZH109,119198908-199508

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020iLH10#,11#,RZH10#,11#198908-199508

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-28010iLH10#,11#,RZH10#,11#199101-199508

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011iLH10#,11#,RZH10#,11#198908-199508

47509SPRING SUB-ASSY, REAR WHEEL CYLINDER PISTON

main47509-35020iLH102,112,RZH102,103,112,113,115198908-199508

main47509-60010iLH108,118,RZH109,119198908-199508

47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

main47051-30030iLH102,112,RZH102,103,112,113198908-199508

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20030iLH102,112,RZH102,103,112,113,115198908-199508

main47547-60020iLH108,118,RZH109,119198908-199508

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iLH10#,11#,RZH10#,11#198908-199508

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-26110iLH108,118,RZH109,119..STD198908-199508

main47550-30100iLH102,112,RZH102,103,112,113,115198908-199508

main47550-60120iLH118,RZH109,119..DX198908-199508

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-26110iLH108,118,RZH109,119..STD198908-199508

main47550-30100iLH102,112,RZH102,103,112,113,115198908-199508

main47550-60120iLH118,RZH109,119..DX198908-199508

47601CWASHER, C(FOR REAR BRAKE)

main90213-07010iLH10#,11#,RZH10#,11#198908-199508

T=1.6

47601ERING, E(FOR REAR BRAKE)

main96160-00500iLH108,118,RZH109,119198908-199308

ADJUST LEVER

main96160-00500iLH102,112,RZH102,103,113199308-199508

SEGMENTAL PULL

main96160-00600iLH108,118,RZH109,119198908-199308

SEGMENTAL PULLY

main96160-00600iLH108,118,RZH109,119199308-199508

ADJUST LEVER

47611CLEVER, PARKING BRAKE SHOE, RH

main47611-26050iLH102,112,RZH102,103,112,113198908-199508

main47611-60010iLH108,118,RZH109,119198908-199508

sub47611-35040

47612ALEVER, PARKING BRAKE SHOE, LH

main47612-26050iLH102,112,RZH102,103,112,113,115198908-199508

main47612-60010iLH108,118,RZH109,119198908-199508

sub47612-35040

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-26010iLH102,112,RZH112..RHD198908-199508

sub47643-26020

main47643-60010iLH108,118,RZH109,119198908-199508

main47644-26010iLH102,112,RZH102,103,112,113,115..LHD198908-199508

sub47644-26020

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47643-26010iLH102,112,RZH102,103,112,113,115..LHD198908-199508

sub47643-26020

main47644-26010iLH102,112,RZH112..RHD198908-199508

sub47644-26020

main47644-60010iLH108,118,RZH109,119198908-199508

47653LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER)

main47655-26050iLH102,112,RZH102,103,112,113,115198908-199508

47654LINING, REAR BRAKE SHOE(FOR REAR OR LOWER)

main47655-26050iLH102,112,RZH102,103,112,113,115198908-199508

9011906084

main90119-06084

9451201000

main94512-01000

31 parts on this diagram · 3 diagrams in section
