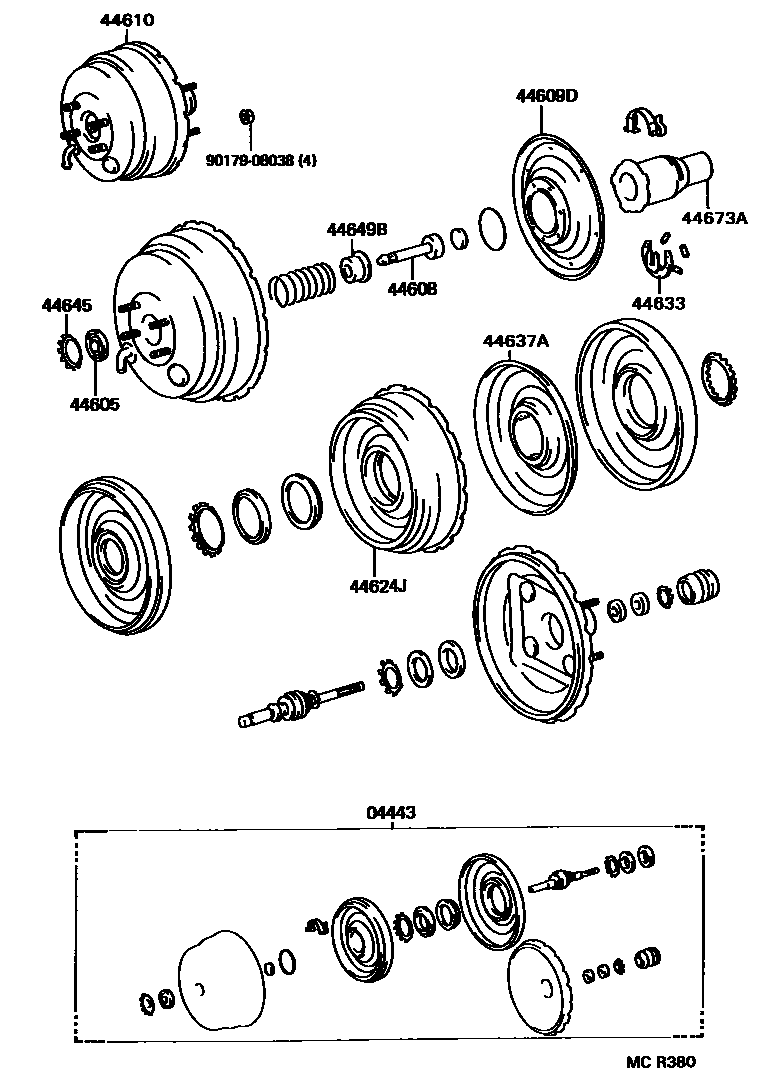

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0004 1 0005 1 0007 1 0008 1 0009 1 0010 1

04443BOOSTER KIT, BRAKE

main04443-26420iRZH102,103,112,113198908-199308

main04443-26440iLH102,112198908-199308

main04443-26450iRZH109,119198908-199308

main04443-26470iLH108,118198908-199308

44605PLATE & SEAL SUB-ASSY, BOOSTER

main44605-10080iLH102,112198908-199308

main44605-30350iRZH102,103,112,113,115198908-199308

sub44605-10080

44608PUSH ROD SUB-ASSY, BOOSTER

main44608-2B460iRZH102,103,112,113198908-199308

main44608-32020iLH102,112198908-199308

44609DPLATE & RETAINER SUB-ASSY, BOOSTER

main44609-2B640iRZH102,103,112,113,115198908-199308

44610BOOSTER ASSY, BRAKE

main44610-26410iRZH102,103,112,113,115198908-199308

sub44610-26430

main44610-26420iLH102,112198908-199308

sub44610-26440

main44610-26430iRZH109,119198908-199508

sub44610-26431

main44610-26440iLH108,118198908-199508

sub44610-26441

44624JPLATE, BOOSTER CENTER

main44624-20800iRZH109,119198908-199308

main44624-2B640iRZH102,103,112,113198908-199308

44633KEY, BOOSTER VALVE PLUNGER

main44633-20811iLH102,112198908-199308

main44633-2B460iRZH102,103,112,113,115198908-199308

44637APLATE, BOOSTER DIAPHRAGM

main44637-26420iLH102,112198908-199308

main44637-2B460iRZH102,103,112,113,115198908-199308

44645RETAINER, BOOSTER PUSH ROD SEAL

main44645-10080iLH102,112,RZH102,103,112,113,115198908-199308

44649BRETAINER, BOOSTER SPRING

main44649-2B460iRZH102,103,112,113,115198908-199308

44673ABODY, BOOSTER VALVE

main44673-26420iLH102,112198908-199308

main44673-2B500iRZH102,103,112,113,115198908-199308

9017908038

main90179-08038

12 parts on this diagram · 8 diagrams in section
