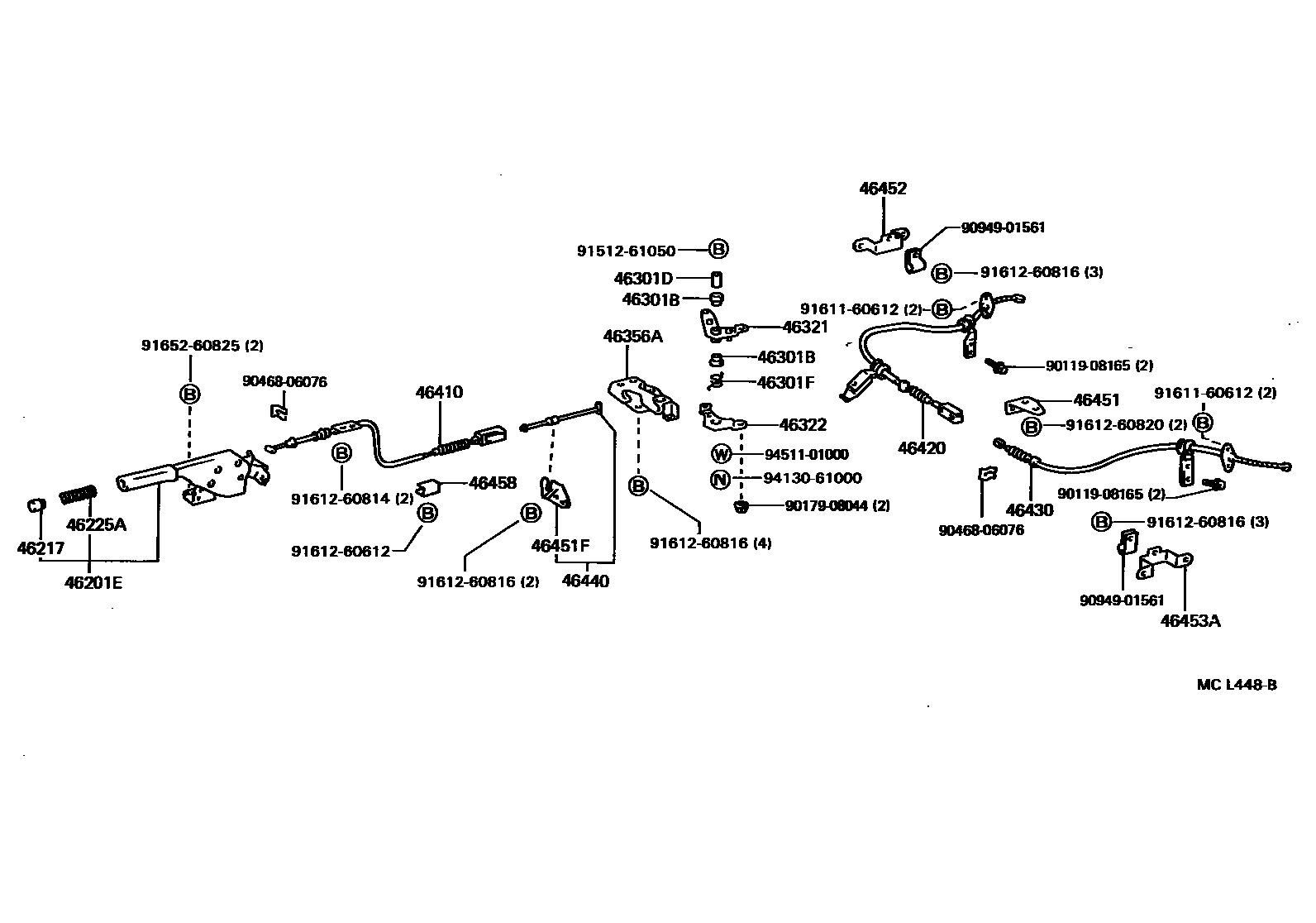

PARKING BRAKE & CABLE

0001 1 0002 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-26010-03iLH102,112,RZH112..RHD198908-199308

GRAY,TRIM1#

sub46201-26010

main46201-26010-B0iLH102,112,RZH113..RHD199308-199508

BLUISH GRAY,TRIM1#

sub46201-26010

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-12020-33iLH102,112,RZH112..RHD198908-199308

GRAY,TRIM1#

sub46217-12020

sub46217-16030

main46217-12020-B3iLH102,112,RZH113..RHD199308-199508

BLUISH GRAY,TRIM1#

sub46217-12020

sub46217-16030

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10069iLH102,112,RZH112,113..RHD198908-199508

46301BBUSH(FOR INTERMEDIATE LEVER)

main90386-16009iLH10#,11#,RZH10#,11#198908-199508

46301DCOLLAR(FOR INTERMEDIATE LEVER)

main90387-10110iLH10#,11#,RZH10#,11#198908-199508

46301FSPRING, TORSION(FOR PARKING BRAKE INTERMEDIATE LEVER)

main90508-26079iLH102,112,RZH112,113..RHD198908-199508

46321LEVER, PARKING BRAKE INTERMEDIATE

main46321-26130iLH102,112,RZH102,103,112,113,115..LHD198908-199508

main46321-26140iLH108,118,RZH109,119198908-199508

main46321-26150iLH102,112,RZH112..RHD198908-199308

main46321-26151iLH102,112,RZH113..RHD199308-199508

46322LEVER, INTERMEDIATE, NO.2

main46322-26010iLH102,112,RZH112..RHD198908-199308

main46322-26011iLH102,112,RZH113..RHD199308-199508

46356ABRACKET, INTERMEDIATE LEVER(FOR PARKING BRAKE)

main46356-26120iLH10#,11#,RZH10#,11#..LHD198908-199508

main46356-26130iLH102,112,RZH112,113..RHD198908-199508

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-26320iLH10#,11#,RZH10#,11#..LHD198908-199508

main46410-26330iRZH112..4D..03S198908-199308

sub46410-26331

main46410-26331iRZH113..RHD199308-199508

sub46410-26332

main46410-26350iLH102,112..RHD198908-199308

sub46410-26351

main46410-26351iLH102,112..RHD199308-199508

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-26250iLH102,112,RZH112..RHD198908-199308

sub46420-26251

main46420-26251iLH102,112,RZH113..RHD199308-199508

main46420-26310iLH102,RZH102,103..LHD198908-199508

main46420-26320iLH112,RZH112,113,115..LHD198908-199508

main46420-26330iLH108,RZH109198908-199508

main46420-26340iLH118,RZH119198908-199508

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-26170iLH102,112,RZH112..RHD198908-199308

sub46430-26171

main46430-26171iLH102,112,RZH113..RHD199308-199508

46440CABLE ASSY, PARKING BRAKE, NO.4

main46440-26010iLH102..RHD198908-199308

main46440-26011iLH102..RHD199308-199508

main46440-26030iLH112,RZH112..RHD198908-199308

main46440-26031iLH112,RZH113..RHD199308-199508

46451BRACKET, CABLE SUPPORT

main46451-26140iLH102,112,RZH112,113..RHD198908-199508

main46452-26100iLH10#,11#,RZH10#,11#..LHD198908-199508

46451FBRACKET, CABLE SUPPORT

main46451-26130iLH102,112,RZH112,113..RHD198908-199508

46452BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2

main46452-26040iLH102..RHD198908-199508

main46452-26060iLH112,RZH112,113..RHD198908-199508

main46452-26110iLH10#,11#,RZH10#,11#..LHD198908-199508

46453ABRACKET, CABLE SUPPORT, NO.3

main46453-26010iLH10#,RZH10#198908-199508

main46453-26030iLH11#,RZH11#198908-199508

46458RETAINER, CABLE

main46458-28010iLH10#,11#,RZH10#,11#198908-199508

9011908165

main90119-08165

9017908044

main90179-08044

9046806076

main90468-06076

9094901561

main90949-01561

9151261050

main91512-61050

9161160612

main91611-60612

9161260612

main91612-60612

9161260814

main91612-60814

9161260816

main91612-60816

9161260820

main91612-60820

9165260825

main91652-60825

9413061000

main94130-61000

9451101000

main94511-01000

31 parts on this diagram · 2 diagrams in section
