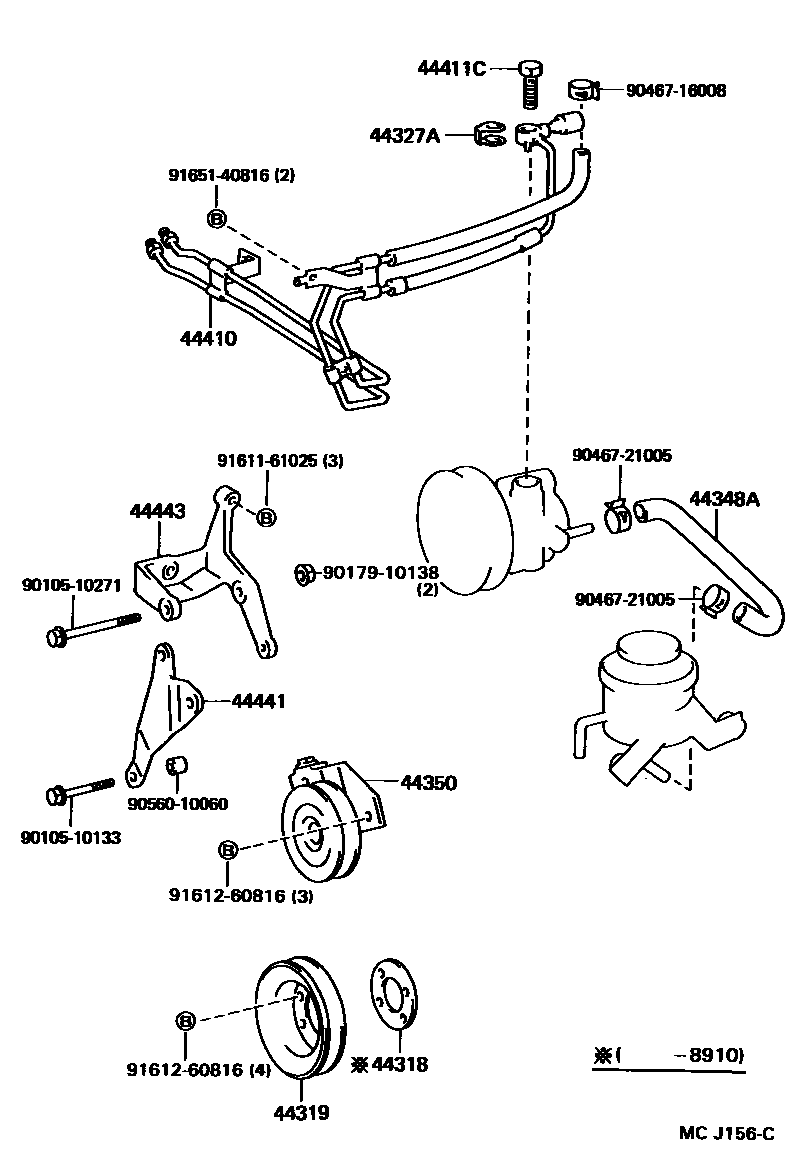

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

44318SPACER, VANE PUMP DRIVE PULLEY

main44318-26010iLH10#,11#198908-199508

main44318-26020iRZH10#,11#198908-199508

44319PULLEY, VANE PUMP DRIVE

main44319-26010iLH102,112198908-199010

main44319-26020iRZH10#,11#198908-199508

main44319-26040iLH108,118198908-199508

main44319-26050iLH102,112199010-199508

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iLH10#,11#198908-198911

main44327-26020iRZH10#,11#198908-199508

main44327-26030iLH10#,11#198911-199002

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-26070iRZH102,103,112,113,115198908-199508

main44348-26080iRZH109,119198908-199508

main44348-26090iLH102,112198908-199508

main44348-26100iLH108,118198908-199508

44350PULLEY ASSY, POWER STEERING IDLE

main44350-26010iRZH10#,11#198908-199508

44410TUBE ASSY, PRESSURE FEED

main44410-26170iRZH113..RHD199308-199508

main44410-26180iRZH103,113,115..LHD198908-199508

main44410-26230iRZH109,119198908-199308

main44410-26231iRZH109,119199308-199508

main44410-26240iLH102,112..RHD198908-199002

D=14

main44410-26241iLH102,112..RHD199002-199308

D=19

main44410-26242iLH102,112..RHD199308-199508

main44410-26250iLH102,112..LHD198908-199002

D=14

main44410-26251iLH102,112..LHD199002-199308

D=19

main44410-26252iLH102,112..LHD199308-199508

main44410-26290iLH108,118198908-199002

D=14

main44410-26291iLH108,118199002-199308

D=19

main44410-26292iLH108,118199308-199508

main44410-26310iRZH112..4D..03S198908-199308

main44410-26320iRZH102,112..LHD198908-199508

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16008iLH10#,11#198908-199002

*16-1.5PX26-12

main90401-16014iRZH10#,11#198908-199508

*16-1.5PX31-15

44441BRACKET, PUMP, FRONT

main44441-26010iRZH10#,11#198908-199508

44443BRACKET, PUMP

main44443-26030iRZH10#,11#198908-198910

sub44443-26031

sub90105-10133

main44443-26031iRZH10#,11#198910-199508

main44443-26040iLH102,112198908-199308

main44443-26041iLH102,112199308-199508

main44443-26050iLH108,118198908-199508

9010510133

main90105-10133

9010510271

main90105-10271

9017910138

main90179-10138

9046716008

main90467-16008

9046721005

main90467-21005

9056010060

main90560-10060

9161161025

main91611-61025

9161260816

main91612-60816

9165140816

main91651-40816

18 parts on this diagram · 6 diagrams in section
