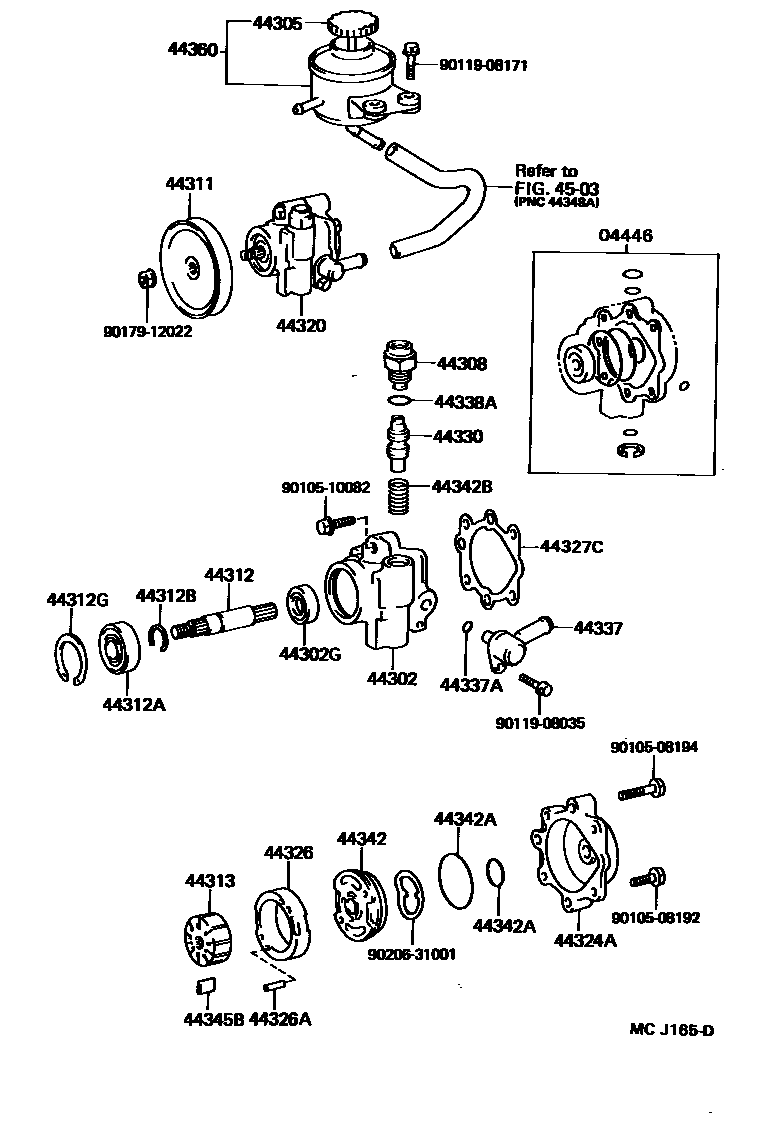

VANE PUMP & RESERVOIR (POWER STEERING)

04446GASKET KIT, POWER STEERING PUMP

main04446-26020iLH10#,11#,RZH10#,11#¥1,810198908-199402

sub04446-30120¥2,530

main04446-30120iLH10#,11#,RZH10#,11#¥2,530199402-199508

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-26010iLH10#,11#,RZH10#,11#¥17,300198908-199105

sub44302-26011¥19,700

main44302-26011iLH10#,11#,RZH10#,11#¥19,700199105-199308

main44302-26012iLH10#,11#,RZH10#,11#¥19,900199308-199508

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90311-17007iLH10#,11#,RZH10#,11#¥190198908-199508

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-22040iLH10#,11#,RZH10#,11#¥1,940199307-199508

sub44305-22060¥1,940

main44305-27010iLH10#,11#,RZH10#,11#¥2,010198908-199307

sub44305-22040¥1,940

44308UNION SUB-ASSY, PRESSURE PORT

main44308-26040iLH10#,11#,RZH10#,11#¥1,700198908-199105

main44308-26041iLH10#,11#,RZH10#,11#¥1,690199105-199508

44311PULLEY, VANE PUMP

main44311-26010iRZH10#,11#¥7,100198908-199508

main44311-26020iLH102,112¥7,200198908-199308

main44311-26030iLH108,118¥6,800198908-199105

sub44311-26031¥6,700

main44311-26031iLH108,118¥6,700199105-199508

main44311-26040iLH102,112¥7,100199308-199508

44312SHAFT, VANE PUMP

main44312-26010iLH10#,11#,RZH10#,11#¥1,720198908-199508

OD=17.009-17.014

main44312-26020iLH108,118,RZH10#,11#¥1,720198908-199508

OD=17.004-17.009

main44312-26020iLH102,112¥1,720198908-199308

main44312-26020iLH102,112¥1,720199308-199508

0D=17.004-17.009

44312ABEARING(FOR VANE PUMP SHAFT)

main90363-17008iLH102,112,RZH10#,11#¥1,240198908-199508

sub90363-17013¥1,240

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90520-15001iLH10#,11#,RZH10#,11#¥240198908-199508

sub90520-15005¥80

44312GRING, SNAP, NO.2(FOR VANE PUMP SHAFT BEARING)

main90521-44002iLH10#,11#,RZH10#,11#¥580198908-199508

44313ROTOR, VANE PUMP

main44313-26060iLH10#,11#,RZH10#,11#¥7,700198908-199508

NO MARK

main44313-26070iLH10#,11#,RZH10#,11#¥7,700198908-199508

MARK 1

main44313-26080iLH10#,11#,RZH10#,11#¥7,700198908-199508

MARK 2

main44313-26090iLH10#,11#,RZH10#,11#¥7,700198908-199508

MARK 3

main44313-26100iLH10#,11#,RZH10#,11#¥7,700198908-199508

MARK 4

44320PUMP ASSY, VANE

main44320-26060iLH108,118,RZH10#,11#¥82,100198908-199007

sub44320-26061¥82,100

main44320-26061iLH108,118,RZH10#,11#¥82,100199007-199101

sub44320-26062¥82,100

main44320-26062iLH108,118,RZH10#,11#¥82,100199101-199105

sub44320-26063¥81,900

main44320-26063iLH108,118,RZH10#,11#¥81,900199105-199508

main44320-26070iLH102,112¥82,100198908-199007

sub44320-26071¥82,100

main44320-26071iLH102,112¥82,100199007-199101

sub44320-26072¥82,100

main44320-26072iLH102,112¥82,100199101-199105

sub44320-26073¥81,300

main44320-26073iLH102,112¥81,300199105-199508

44324AHOUSING, PUMP, REAR

main44324-26030iLH108,118,RZH10#,11#¥4,160198908-199112

main44324-26031iLH108,118,RZH10#,11#¥4,180199112-199508

main44324-26040iLH102,112¥3,990198908-199112

main44324-28030iLH102,112¥2,510199112-199508

44326RING, CAM(FOR VANE PUMP)

main44325-26010iLH10#,11#,RZH10#,11#¥6,700198908-199007

NO MARK

main44325-26020iLH10#,11#,RZH10#,11#¥6,700198908-199007

MARK 1

main44325-26030iLH10#,11#,RZH10#,11#¥6,700198908-199007

MARK 2

main44325-26040iLH10#,11#,RZH10#,11#¥6,700198908-199007

MARK 3

main44325-26050iLH10#,11#,RZH10#,11#¥6,700198908-199007

MARK 4

main44325-32110iLH10#,11#,RZH10#,11#¥8,500199007-199112

NO MARK

main44325-32120iLH10#,11#,RZH10#,11#¥8,500199007-199112

MARK 1

main44325-32130iLH10#,11#,RZH10#,11#¥8,500199007-199112

MARK 2

main44325-32140iLH10#,11#,RZH10#,11#¥8,500199007-199112

MARK 3

main44325-32150iLH10#,11#,RZH10#,11#¥8,200199007-199112

MARK 4

main44325-32270iLH10#,11#,RZH10#,11#¥6,700199112-199508

NO MARK

main44325-32280iLH10#,11#,RZH10#,11#¥6,700199112-199508

MARK 1

main44325-32290iLH10#,11#,RZH10#,11#¥6,700199112-199508

MARK 2

main44325-32300iLH10#,11#,RZH10#,11#¥6,700199112-199508

MARK 3

main44325-32310iLH10#,11#,RZH10#,11#¥6,700199112-199508

MARK 4

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main90250-04071iLH10#,11#,RZH10#,11#¥110198908-199508

L=23.3,OD=4.0

44327CGASKET, VANE PUMP HOUSING

main44327-26010iLH10#,11#,RZH10#,11#¥460198908-199508

44330VALVE ASSY, FLOW CONTROL

main44330-26010iLH10#,11#,RZH10#,11#¥8,600198908-199105

MARK A

sub44330-26011¥8,700

sub44308-26041¥1,690

sub44308-30140¥1,480

sub90501-13034¥160

main44330-26011iLH10#,11#,RZH10#,11#¥8,700199105-199508

MARK A

main44330-26020iLH10#,11#,RZH10#,11#¥8,600198908-199105

MARK B

sub44330-26021¥8,700

sub44308-26041¥1,690

sub44308-30140¥1,480

sub90501-13034¥160

main44330-26021iLH10#,11#,RZH10#,11#¥8,700199105-199508

MARK B

main44330-26030iLH10#,11#,RZH10#,11#¥8,600198908-199105

MARK C

sub44330-26031¥8,700

sub44308-26041¥1,690

sub44308-30140¥1,480

sub90501-13034¥160

main44330-26031iLH10#,11#,RZH10#,11#¥8,700199105-199508

MARK C

main44330-26040iLH10#,11#,RZH10#,11#¥8,600198908-199105

MARK D

sub44330-26041¥8,700

sub44308-26041¥1,690

sub44308-30140¥1,480

sub90501-13034¥160

main44330-26041iLH10#,11#,RZH10#,11#¥8,700199105-199508

MARK D

main44330-26050iLH10#,11#,RZH10#,11#¥8,600198908-199105

MARK E

sub44330-26051¥8,700

sub44308-26041¥1,690

sub44308-30140¥1,480

sub90501-13034¥160

main44330-26051iLH10#,11#,RZH10#,11#¥8,700199105-199508

MARK E

main44330-26060iLH10#,11#,RZH10#,11#¥8,600198908-199105

MARK F

sub44330-26061¥8,700

sub44308-26041¥1,690

sub44308-30140¥1,480

sub90501-13034¥160

main44330-26061iLH10#,11#,RZH10#,11#¥8,700199105-199508

MARK F

44337UNION, POWER STEERING SUCTION PORT

main44337-26030iLH10#,11#,RZH10#,11#¥1,920198908-199508

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11010iLH10#,11#,RZH10#,11#¥270198908-199508

sub90301-11016¥140

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-19003iLH10#,11#,RZH10#,11#¥300198908-199508

ID=19.5,OD=22.5

sub90301-19013¥260

44342PLATE, VANE PUMP SIDE, REAR

main44342-26010iLH10#,11#,RZH10#,11#¥1,550198908-199007

main44342-26020iLH10#,11#,RZH10#,11#¥1,530199112-199508

main44342-32050iLH10#,11#,RZH10#,11#¥1,530199007-199112

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main90301-18007iLH10#,11#,RZH10#,11#¥110198908-199508

INNER

main90301-47001iLH10#,11#,RZH10#,11#¥170198908-199508

OUTER

44342BSPRING, COMPRESSION(FOR VANE PUMP SIDE PLATE REAR)

main90501-11047iLH10#,11#,RZH10#,11#¥110198908-199105

main90501-13034iLH10#,11#,RZH10#,11#¥160199105-199508

44345BPLATE, VANE PUMP

main44345-26010iLH10#,11#,RZH10#,11#¥700198908-199508

L=15.000

main44345-26020iLH10#,11#,RZH10#,11#¥700198908-199508

L=14.998

main44345-26030iLH10#,11#,RZH10#,11#¥700198908-199508

L=14.996

main44345-26040iLH10#,11#,RZH10#,11#¥700198908-199508

L=14.994

main44345-26050iLH10#,11#,RZH10#,11#¥700198908-199508

L=14.992

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-26050iRZH10#,11#¥10,400198908-199508

main44360-26060iLH102,112¥10,500198908-199508

main44360-26070iLH108,118¥10,400198908-199508

4503

9010508192

main90105-08192¥130

9010508194

main90105-08194¥130

9010510082

main90105-10082¥180

9011908035

main90119-08035¥110

9011908171

main90119-08171¥140

9017912022

main90179-12022¥370

9020631001

main90206-31001¥160

33 parts on this diagram · 1 diagram in section
