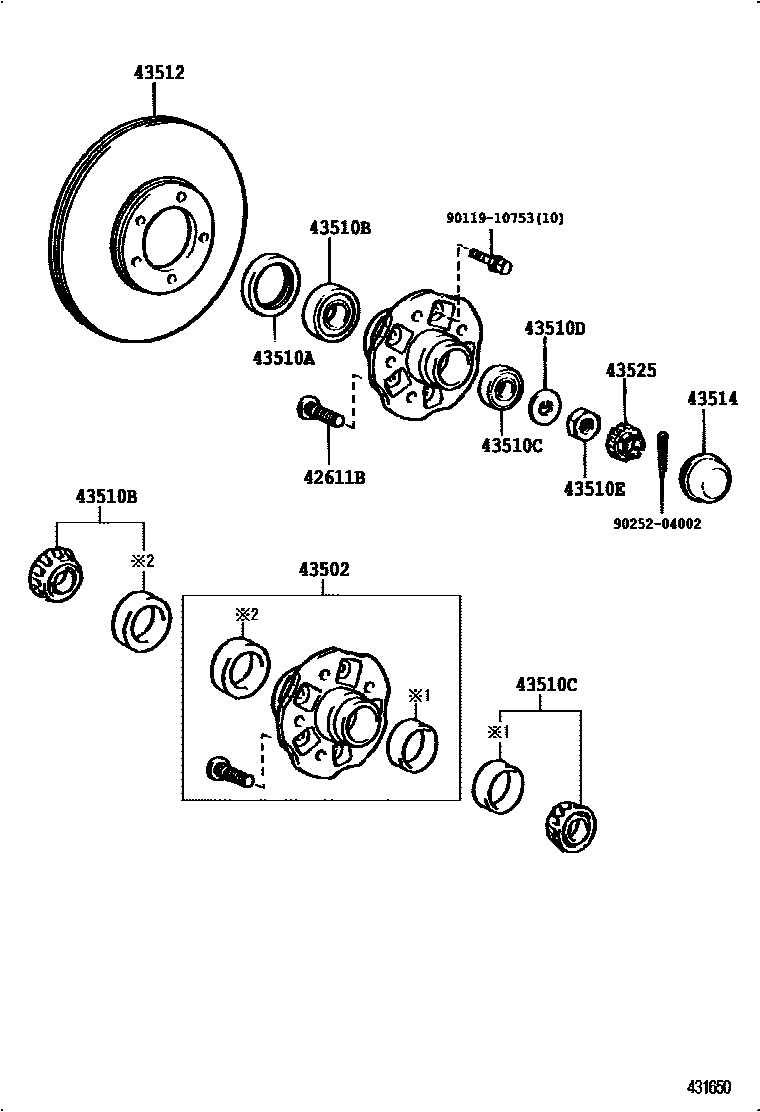

FRONT AXLE HUB

0001 1 0002 1

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02047iLH102,112,RZH102,103,112,113,115198908-199508

main90942-02049iLH108,118,RZH109,119198908-199508

43502HUB SUB-ASSY, FRONT AXLE

main43502-26050iLH102,112,RZH102,103,112,113,115198908-199508

main43511-35905iLH108,118,RZH109,119198908-199308

sub43511-39015

main43511-39015iLH108,118,RZH109,119199308-199508

sub43502-29095

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-50005iLH102,112,RZH102,103,112,113,115198908-199508

main90311-66001iLH108,118,RZH109,119198908-199508

sub90311-66003

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-34001iLH102,112,RZH102,103,112,113,115198908-199508

main90368-49084iLH108,118,RZH109,119198908-199508

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-21001iLH102,112,RZH102,103,112,113,115198908-199508

main90368-45087iLH108,118,RZH109,119198908-199508

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-20007iLH102,112,RZH102,103,112,113,115198908-199508

main90214-42030iLH108,118,RZH109,119198908-199508

43510ENUT (FOR STEERING KNUCKLE)

main90170-19185iLH102,112,RZH102,103,112,113,115198908-199508

43512DISC, FRONT

main43512-26090iRZH102;LH102,112..STD198908-199508

main43512-26100iLH108,118,RZH109,119198908-199308

main43512-26120iLH102,112..STD199308-199508

W(195/70R15 TIRE)

main43512-26130iLH108,118,RZH109,119199308-199508

43514CAP, FRONT HUB GREASE

main43514-35010iLH102,112,RZH102,103,112,113,115198908-199508

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-22010iLH102,112,RZH102,103,112,113,115198908-199508

9011910753

main90119-10753

9025204002

main90252-04002

12 parts on this diagram · 2 diagrams in section
