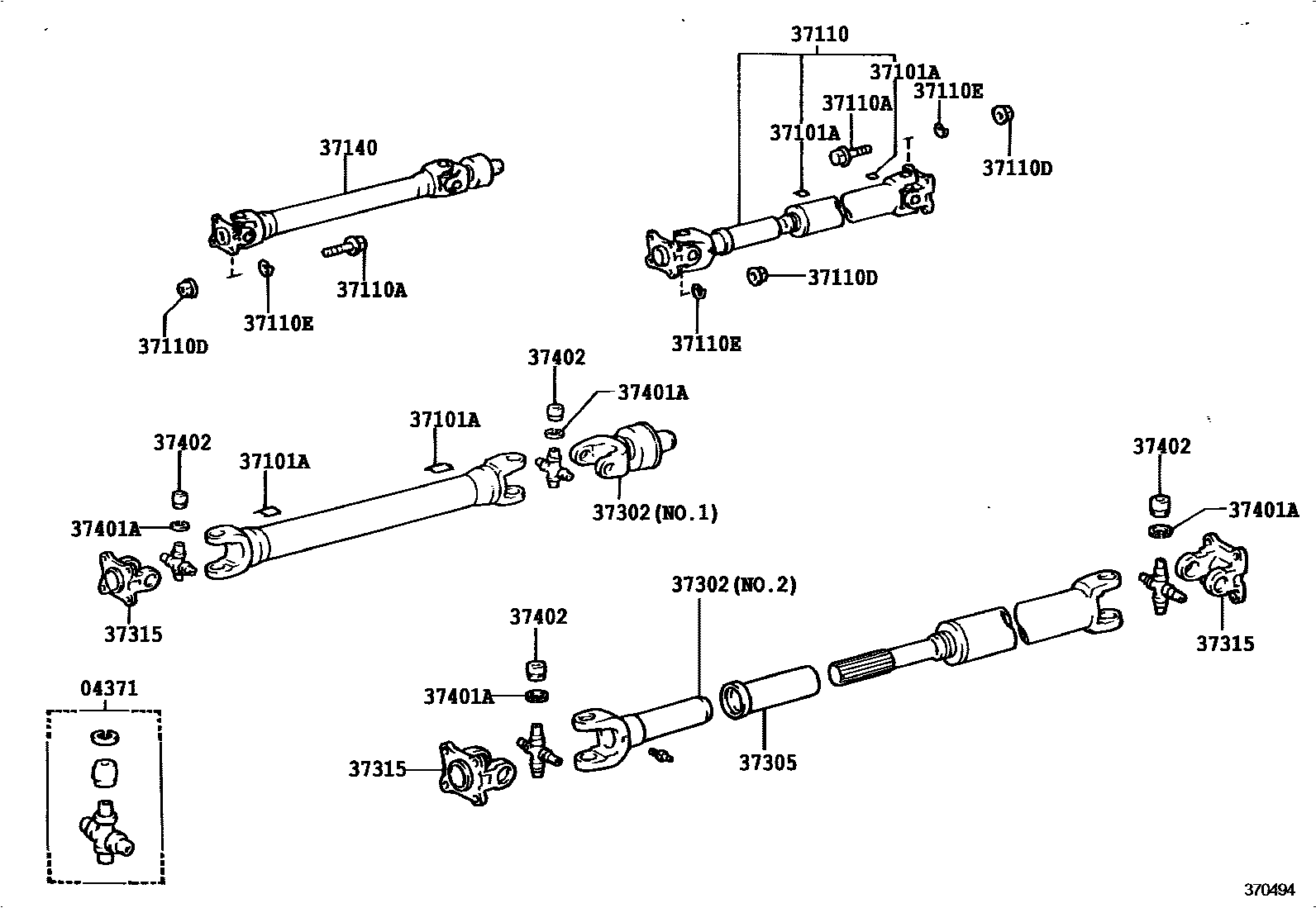

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1 0002 1

04371SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT)

main04371-25010iLH112,RZH112..4FC198908-199508

main04371-30021iRZH113;LH10#,11#,RZH10#,112,115,119..5F198908-199508

sub04371-30040

37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

main90937-01132iLH10#,11#,RZH10#,11#198908-199508

10G,L=20.7

main90937-01136iLH10#,11#,RZH10#,11#199308-199508

20G,L=41.4

main90937-01140iLH10#,11#,RZH10#,11#199308-199508

30G,L=62.2

main90937-01147iLH10#,11#,RZH10#,11#198908-199508

2G,T=2.0

main90937-01148iLH10#,11#,RZH10#,11#198908-199508

4G,T=2.0

main90937-01149iLH10#,11#,RZH10#,11#198908-199508

6G,L=12.4

main90937-01150iLH10#,11#,RZH10#,11#198908-199508

8G,L=16.6

main90937-01151iLH10#,11#,RZH10#,11#198908-199508

12G,L=24.9

main90937-01152iLH10#,11#,RZH10#,11#198908-199508

14G,L=29.0

main90937-01153iLH10#,11#,RZH10#,11#199308-199508

16G,L=33.2

main90937-01154iLH10#,11#,RZH10#,11#199308-199508

18G,L=37.3

main90937-01155iLH10#,11#,RZH10#,11#199308-199508

22G,L=45.6

main90937-01156iLH10#,11#,RZH10#,11#199308-199508

24G,L=49.7

main90937-01157iLH10#,11#,RZH10#,11#199308-199508

26G,L=53.9

main90937-01158iLH10#,11#,RZH10#,11#199308-199508

28G,L=58.1

main90937-01184iLH108,118,RZH109,119198908-199508

4G,T=1.6

main90937-01191iLH108,118,RZH109,119198908-199508

8G,T=1.6

main90937-01192iLH108,118,RZH109,119198908-199508

12G,T=4.5

main90937-01193iLH108,118,RZH109,119198908-199508

16G,T=4.5

main90937-01194iLH108,118,RZH109,119198908-199508

20G,T=4.5

main90937-01198iLH108,118,RZH109,119199308-199508

24G,T=4.5,L=25.1

main90937-01199iLH108,118,RZH109,119199308-199508

28G,T=6,L=22.7

main90937-01200iLH108,118,RZH109,119199308-199508

32G,T=6,L=24.3

main90937-01290iLH108,118,RZH109,119198908-199508

2G

main90937-01291iLH108,118,RZH109,119198908-199508

4G

main90937-01292iLH108,118,RZH109,119198908-199508

6G

main90937-01293iLH108,118,RZH109,119198908-199508

8G

main90937-01294iLH108,118,RZH109,119198908-199508

10G

main90937-01295iLH108,118,RZH109,119198908-199508

12G

main90937-01296iLH108,118,RZH109,119199308-199508

14G

main90937-01297iLH108,118,RZH109,119199308-199508

16G,T=2.0

main90937-01298iLH108,118,RZH109,119199308-199508

18G,T=2.0

main90937-01299iLH108,118,RZH109,119199308-199508

20G,T=2.0

main90937-01300iLH108,118,RZH109,119199308-199508

22G,T=2.0

main90937-01301iLH108,118,RZH109,119198908-199508

24G,T=2.0

main90937-01302iLH108,118,RZH109,119198908-199508

26G,T=2.0

main90937-01303iLH108,118,RZH109,119198908-199508

28G,T=2.0

main90937-01304iLH108,118,RZH109,119198908-199508

30G,T=2.0

37110SHAFT ASSY, PROPELLER

main37110-26180iLH112,RZH112..5F198908-199308

OD=65

main37110-26260iLH102,RZH102198908-199308

OD=65

main37110-26380iLH102,RZH102,103199308-199508

main37110-26380iRZH103198908-199308

OD=75

main37110-26400iLH112,RZH113..5F199308-199508

main37110-26400iRZH113,115..5F198908-199308

OD=75

main37110-26410iRZH113..4FC198908-199508

OD=65

main37110-26420iLH112,RZH112..4FC198908-199508

OD=65

main37110-26430iLH108,RZH109198908-199508

main37110-26450iLH118,RZH119198908-199508

main37110-26530iLH102,RZH102198908-199109

OD=75

sub37110-26260

main37110-26540iLH112,RZH112..5F198908-199109

OD=75

sub37110-26180

main37110-26550iRZH113..4FC198908-199109

OD=75

sub37110-26410

main37110-26560iRZH103..4D198908-199109

OD=82.6

sub37110-26380

main37110-26570iRZH113,115..5F198908-199109

OD=82.6

sub37110-26470

main37110-26580iLH112,RZH112..4FC198908-199109

OD=75

sub37110-26420

37110ABOLT (FOR PROPELLER SHAFT)

main90105-10085iLH10#,11#,RZH10#,11#198908-199508

*10-1.00PX27-13

37110DNUT (FOR PROPELLER SHAFT)

main90179-10059iLH102,112,RZH102,103,112,113,115198908-199508

37110EWASHER (FOR PROPELLER SHAFT)

main90204-10002iLH102,112,RZH102,103,112,113,115198908-199508

sub90560-10H00

37140SHAFT ASSY, PROPELLER, FRONT

main37140-26030iLH108,118,RZH109,119198908-198912

main37140-26031iLH108,118,RZH109,119198912-199508

37302YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE

main37302-26010iLH108,118,RZH109,119198908-198912

main37302-26011iLH108,118,RZH109,119199308-199508

NO.1

main37302-26011iLH108,118,RZH109,119198912-199308

main37302-35010iLH112,RZH112..4FC198908-199508

main37302-35030iRZH113;LH102,112,RZH102,103,112,115..5F198908-199508

main37302-35050iLH108,118,RZH109,119199308-199508

NO.2

37305COVER SUB-ASSY, SLIDING SHAFT DUST

main37305-35020iLH108,118,RZH109,119198908-199508

37315YOKE, UNIVERSAL JOINT FLANGE

main37315-35040iLH102,RZH102,103,113,115198908-199508

main37315-35050iLH112,RZH112..4FC198908-199508

37401ARING, HOLE SNAP (FOR SPIDER BEARING)

main90520-26038iRZH113;LH10#,11#,RZH10#,112,115,119..5F198908-199508

T=2.125,MARK 1

main90520-26040iRZH113;LH10#,11#,RZH10#,112,115,119..5F198908-199508

T=2.175,MARK 2

main90520-26041iRZH113;LH10#,11#,RZH10#,112,115,119..5F198908-199508

T=2.225,MARK 3

main90520-26042iRZH113;LH10#,11#,RZH10#,112,115,119..5F198908-199508

T=2.275,MARK 4

main90520-26043iRZH113;LH10#,11#,RZH10#,112,115,119..5F198908-199508

T=2.325,MARK 5

main90520-26044iRZH113;LH10#,11#,RZH10#,112,115,119..5F198908-199508

T=2.375,MARK 6

main90520-26045iRZH113;LH10#,11#,RZH10#,112,115,119..5F198908-199508

T=2.425,MARK 7

main90520-26046iRZH113;LH10#,11#,RZH10#,112,115,119..5F198908-199508

T=2.475,MARK 8

main90521-29070iLH112,RZH112..4FC198908-199508

T=2.375-2.425

main90521-29071iLH112,RZH112..4FC198908-199508

T=2.425-2.475

main90521-29072iLH112,RZH112..4FC198908-199508

T=2.475-2.525

37402BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER

main37402-25010iLH112..4FC199308-199508

main37402-25020iLH112..4FC199308-199508

RED PAINTED

main37402-25020iLH112,RZH112..4FC198908-199308

main37402-30011iRZH113;LH10#,11#,RZH10#,112,115,119..5F198908-199508

sub04371-60070

sub04371-60100

main37402-30021iRZH113;LH10#,11#,RZH10#,112,115,119..5F198908-199508

RED PAINTED

sub04371-60070

sub04371-60100

12 parts on this diagram · 2 diagrams in section
