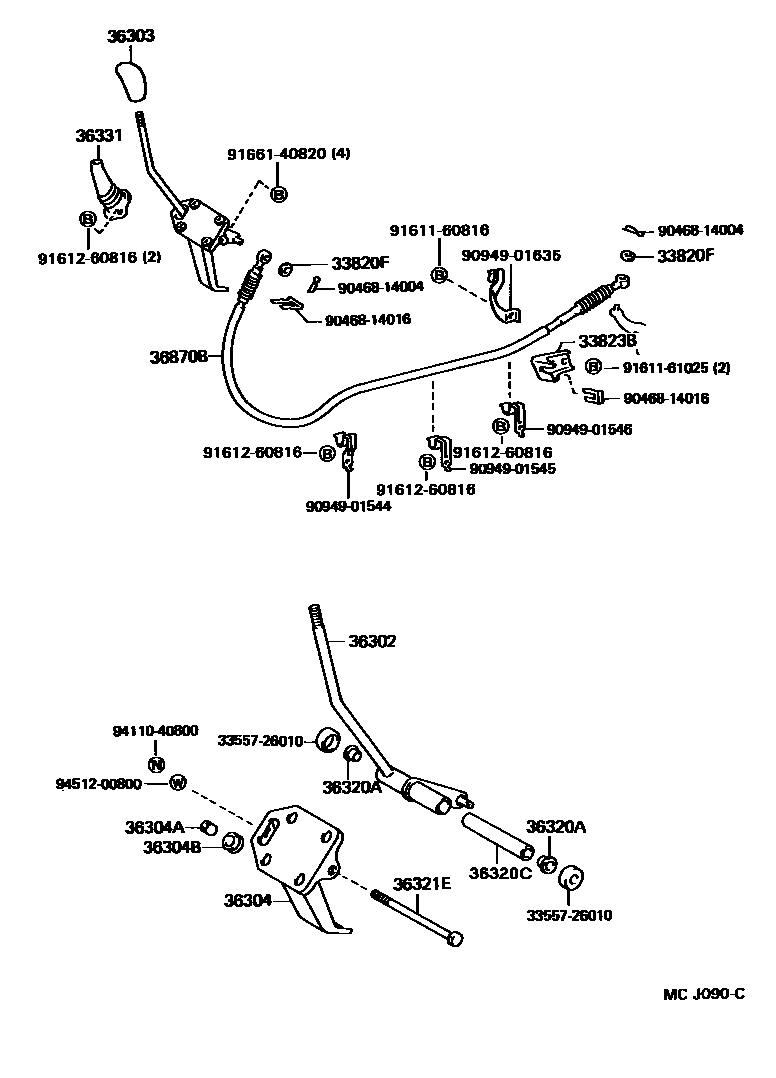

TRANSFER LEVER & SHIFT ROD

0001 1 0002 1 0003 1

33820FWASHER, PLATE (FOR TRANSFER CONTROL CABLE)

main90201-08023iLH108,118,RZH109,119198908-199508

TRANSMISSION SIDE

main90201-08267iLH108,118,RZH109,119198908-199508

TRANSFER SIDE

33823BBRACKET, TRANSFER CONTROL CABLE

main33823-28100iLH108,118,RZH109,119198908-199508

36302LEVER SUB-ASSY, TRANSFER HIGH & LOW SHIFT

main36302-26060iLH108,118,RZH109,119198908-199508

36303KNOB SUB-ASSY, SHIFT LEVER

main36303-28020-13iLH108,118,RZH109,119198908-199308

GRAY,TRIM1#

main36303-28020-B0iLH108,118,RZH109,119199308-199508

BLUISH GRAY,TRIM1#

36304RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER

main33506-26040iLH108,118,RZH109,119198908-199508

36304ACOLLER (FOR TRANSFER CONTROL SHIFT LEVER RETAINER)

main90387-09038×4iLH108,118,RZH109,119198908-199508

36304BGROMMET (FOR TRANSFER CONTROL SHIFT LEVER RETAINER)

main90480-13012×4iLH108,118,RZH109,119198908-199508

36320ABUSH (FOR TRANSFER SHIFT LEVER)

main90385-11006×2iLH108,118,RZH109,119198908-199508

36320CCOLLAR (FOR TRANSFER SHIFT LEVER)

main90387-08101iLH108,118,RZH109,119198908-199508

36321ESHAFT, TRANSFER SHIFT LEVER

main90101-08136iLH108,118,RZH109,119198908-199508

36331BOOT, TRANSFER SHIFT LEVER

main36331-26030iLH108,118,RZH109,119198908-199508

36870BCABLE ASSY, TRANSFER CONTROL

main36870-26020iLH108,118,RZH109,119198908-199508

3355726010COVER, CONTROL BELLCRANK DUST (FOR COLUMN SHIFT)

main33557-26010

9046814004

main90468-14004

9046814016

main90468-14016

9094901544

main90949-01544

9094901545

main90949-01545

9094901546

main90949-01546

9094901635

main90949-01635

9161160816

main91611-60816

9161161025

main91611-61025

9161260816

main91612-60816

9166140820

main91661-40820

9411040800

main94110-40800

9451200800

main94512-00800

25 parts on this diagram · 3 diagrams in section
