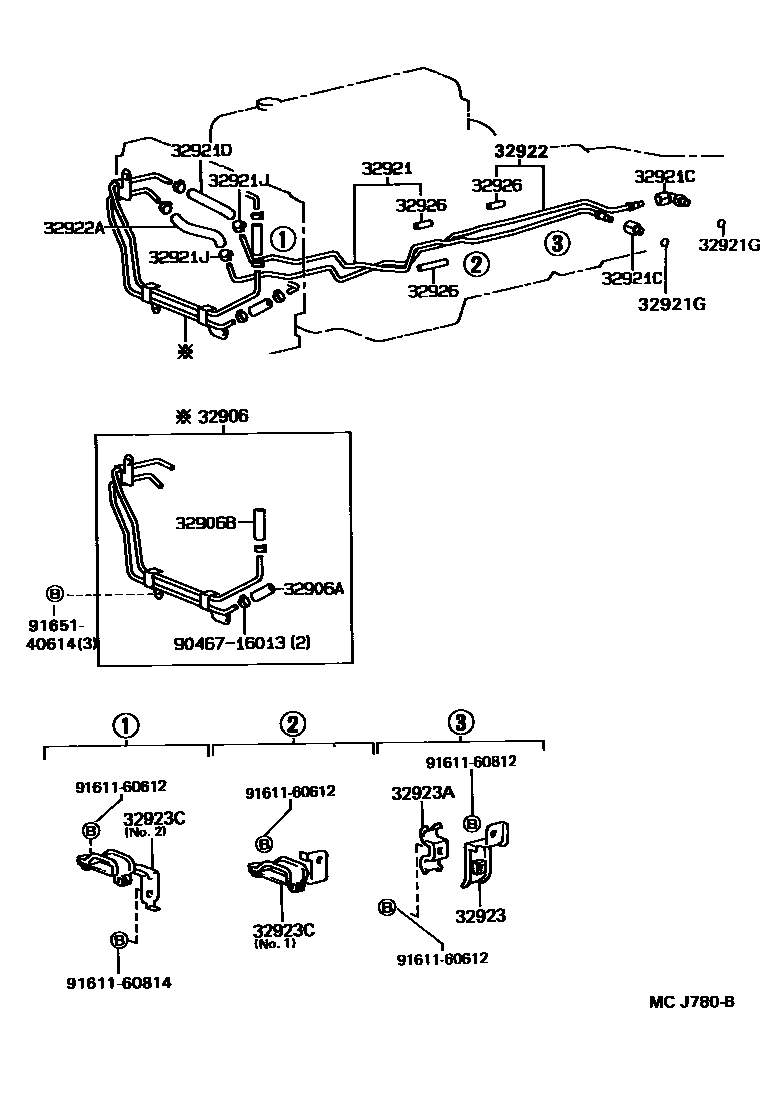

OIL COOLER & TUBE (ATM)
32906AHOSE, OIL COOLER TUBE(FOR INLET)
32906BHOSE, OIL COOLER TUBE(FOR OUTLET)
32921TUBE, OIL COOLER INLET, NO.1
32921CUNION(FOR OIL COOLER TUBE)
FR
RR
32921DHOSE(FOR OIL COOLER INLET)
L=220
32921GRING, O(FOR OIL COOLER TUBE UNION)
32921JCLIP(FOR OIL COOLER HOSE)
sub90467-16022
32922TUBE, OIL COOLER OUTLET, NO.1
32922AHOSE(FOR OIL COOLER OUTLET)
L=250.0
L=205
32923ACLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32923CCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4
32926CUSHION, OIL COOLER TUBE(ATM)
L=60,ID=10
L=35,ID=10
9046716013
main90467-16013
9161160612
main91611-60612
9161160812
main91611-60812
9161160814
main91611-60814
9165140614
main91651-40614
19 parts on this diagram · 2 diagrams in section
