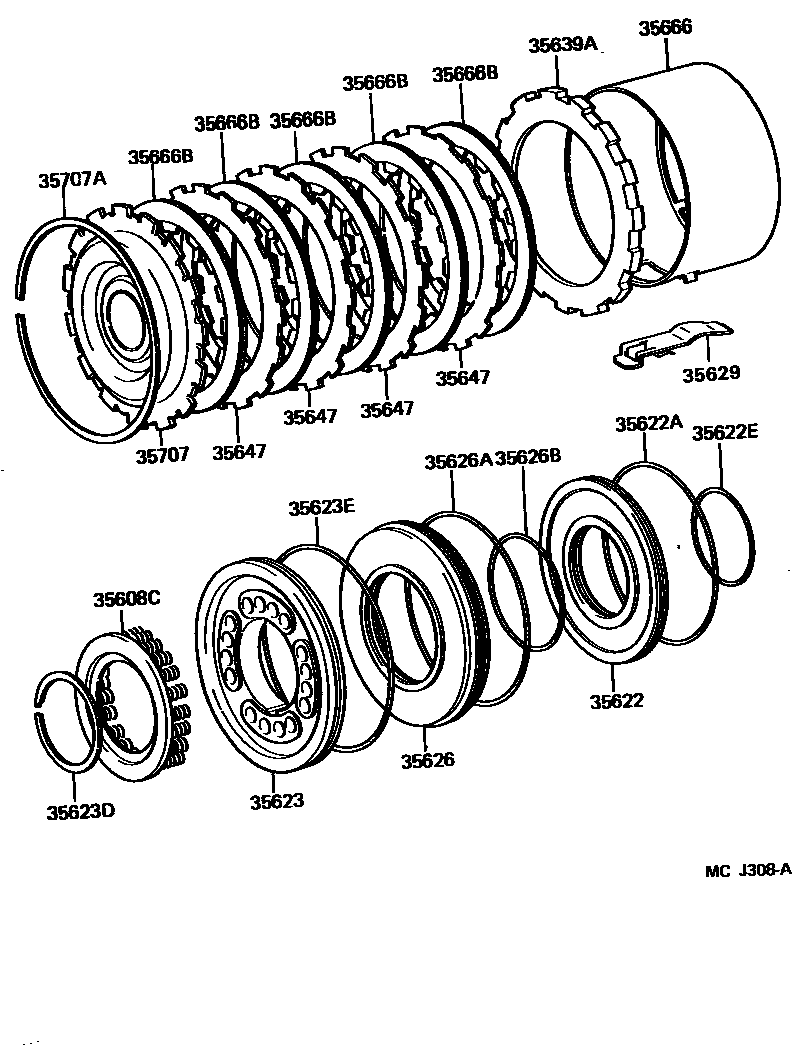

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35608CSPRING SUB-ASSY, NO.3 BRAKE PISTON RETURN

main35608-20020iLH112,RZH112,113..4FC198908-199508

35622PISTON, BRAKE, NO.2

main35622-22010iLH112,RZH112,113..4FC198908-199508

35622ARING (FOR BRAKE PISTON OUTER)

main90301-99193iLH112,RZH112,113..4FC198908-199508

35622ERING, O (FOR BRAKE PISTON NO.2)

main90301-57188iLH112,RZH112,113..4FC198908-199308

INNER

main90301-57188iLH112,RZH113..4FC199308-199508

35623PISTON, BRAKE, NO.3

main35623-22010iLH112,RZH112,113..4FC198908-199508

35623DRING, SHAFT SNAP (FOR BRAKE)

main90520-52262iLH112,RZH112,113..4FC198908-199508

35623ERING, O, NO.1 (FOR BRAKE PISTON)

main90301-99192iLH112,RZH112,113..4FC198908-199508

35626SLEEVE, BRAKE REACTION

main35626-22010iLH112,RZH112,113..4FC198908-199508

35626ARING (FOR BRAKE REACTION SLEEVE OUTER)

main90301-99200iLH112,RZH112,113..4FC198908-199508

sub90301-99109

35626BRING (FOR BRAKE REACTION SLEEVE INNER)

main90301-68191iLH112,RZH112,113..4FC198908-199508

sub90301-67005

35629SPRING (1ST & REVS BRAKE PLATE STOPPER)

main35629-22010iLH112,RZH112,113..4FC198908-199508

35639APLATE, CLUTCH PRESSURE (FOR BRAKE)

main35639-22010iLH112,RZH112,113..4FC198908-199508

35647PLATE, CLUTCH, NO.2

main35647-22010iLH112,RZH112,113..4FC198908-199508

35666TUBE, BRAKE APPLY

main35666-30010iLH112,RZH112,113..4FC198908-199508

35666BDISC, CLUTCH (FOR BRAKE)

main35633-30050iLH112,RZH112,113..4FC198908-199109

sub35633-30060

main35633-30060iLH112,RZH113..4FC199109-199508

35707RACE SUB-ASSY, 1 WAY CLUTCH, INNER

main35707-30040iLH112,RZH112,113..4FC198908-199508

35707ARING, HOLE SNAP (FOR 1 WAY CLUTCH INNER RACE)

main90521-99140iLH112,RZH112,113..4FC198908-199508

17 parts on this diagram · 1 diagram in section
