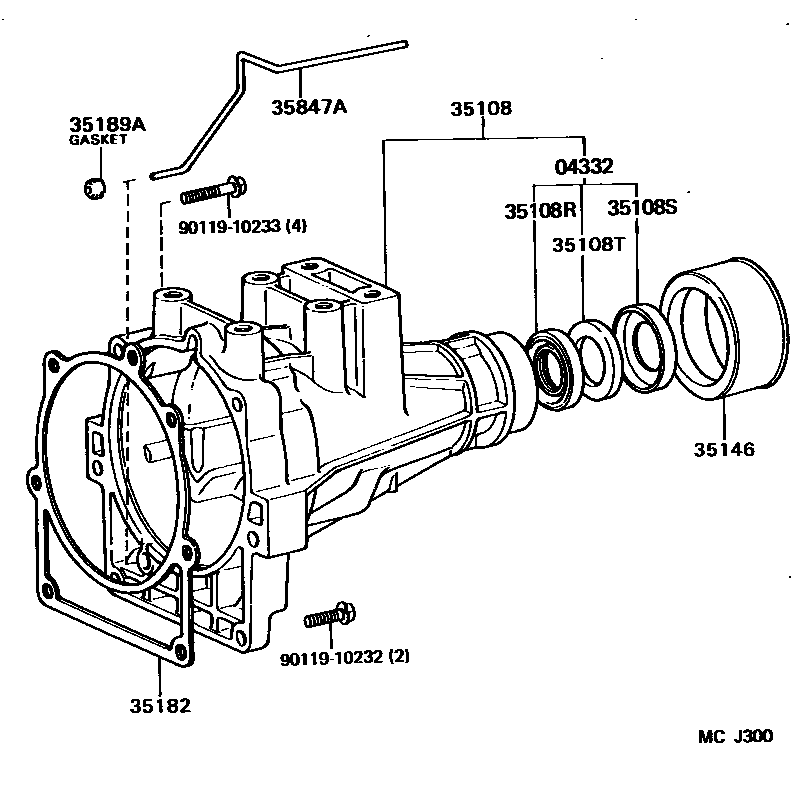

EXTENSION HOUSING (ATM)

04332SEAL KIT, OIL(FOR AUTOMATIC EXTENSION HOUSING)

main04332-30020iLH112,RZH113..4FC199308-199508

sub04332-30030

main04332-30030iLH112,RZH112,113..4FC198908-199308

35108HOUSING SUB-ASSY, EXTENSION (ATM)

main35108-26014iLH112,RZH112,113..4FC198908-199308

main35108-28010iLH112,RZH113..4FC199308-199508

35108RSEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90311-38030iLH112,RZH112,113..4FC198908-199508

sub90311-38032

35108SRETAINER, EXTENSION HOUSING DUST SEAL (ATM)

main33145-30010iLH112,RZH112,113..4FC198908-199508

35108TSEAL, DUST (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90303-38010iLH112,RZH112,113..4FC198908-199508

35146DEFLECTOR, EXTENSION HOUSING DUST (ATM)

main33146-30010iLH112,RZH112,113..4FC198908-199411

sub33146-30020

main33146-30020iLH112,RZH113..4FC199411-199508

35182GASKET, EXTENSION HOUSING (ATM)

main35182-22010iLH112,RZH112,113..4FC198908-198910

sub35182-28010

main35182-28010iLH112,RZH112,113..4FC198910-199508

35189AGASKET, EXTENSION HOUSING BUSH APPLY TUBE

main35189-30010iLH112,RZH112,113..4FC198908-199508

35847ATUBE, EXTENSION HOUSING BUSH APPLY

main35847-30020iLH112,RZH112,113..4FC198908-199508

9011910232

main90119-10232

9011910233

main90119-10233

11 parts on this diagram · 1 diagram in section
