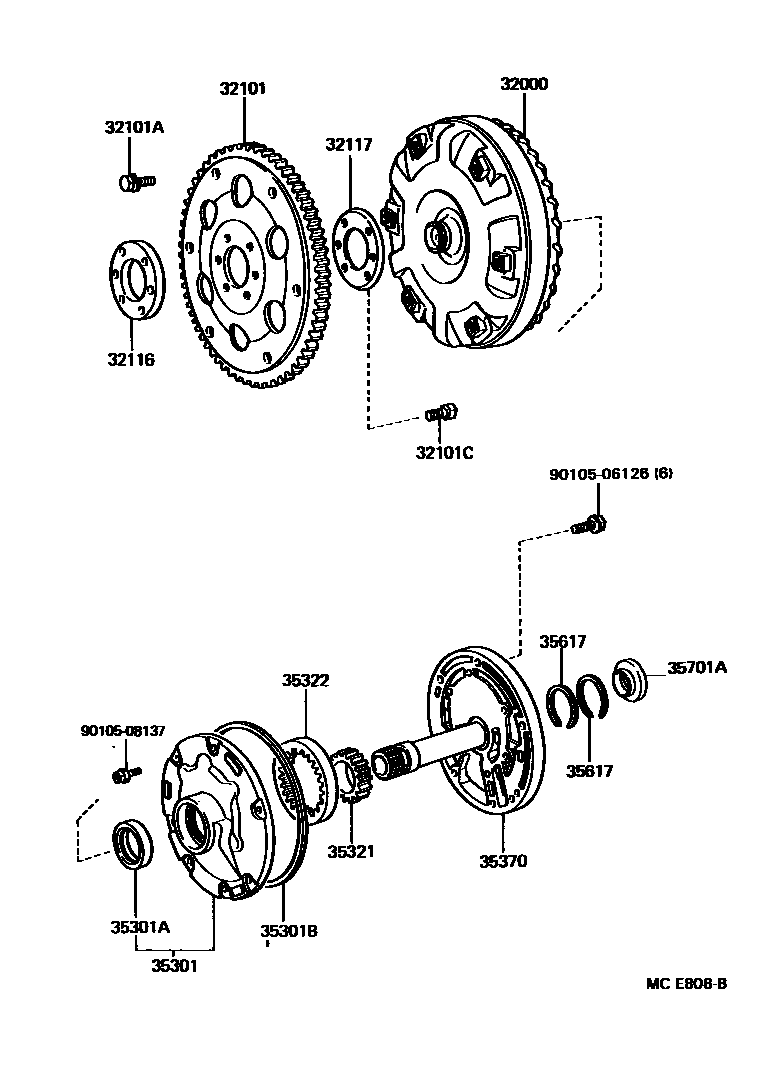

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)
32000CONVERTER ASSY, TORQUE
32101GEAR SUB-ASSY, DRIVE PLATE & RING
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
*9-1.25PX12.8-8.8,*9-1.25PX12.8-8.8,YELLOW
*9-1.25PX12.8-9,*9-1.25PX12.8-9,OLIVE GREEN
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
*10-1.25PX30-17.5
32116SPACER, DRIVE PLATE, FRONT
32117SPACER, DRIVE PLATE, REAR
35301BODY SUB-ASSY, FRONT OIL PUMP
35301ASEAL, OIL (FOR FRONT OIL PUMP)
35301BRING, O (FOR FRONT OIL PUMP BODY)
35321GEAR, FRONT OIL PUMP DRIVE
T=17.244-17.235
T=17.254-17.245
T=17.265-17.255
T=17.275-17.266
T=17.285-17.276
35322GEAR, FRONT OIL PUMP DRIVEN
T=17.244-17.235
T=17.254-17.245
T=17.265-17.255
T=17.275-17.266
T=17.285-17.276
35370SHAFT ASSY, STATOR
35617RING, CLUTCH DRUM OIL SEAL
35701ABEARING, THRUST (FOR INPUT SHAFT FRONT)
9010506126
main90105-06126
9010508137
main90105-08137
16 parts on this diagram · 1 diagram in section
